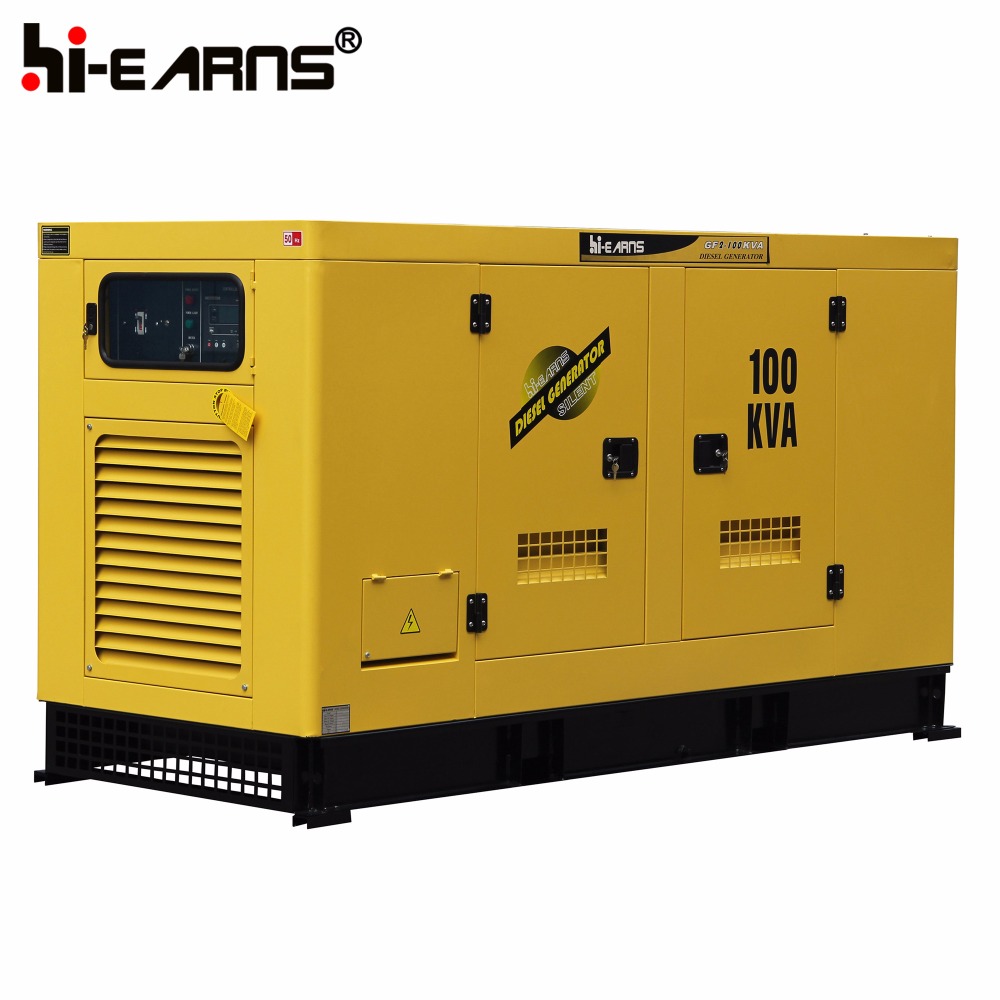

100KVA silent Chinese factory diesel generator
| Standby Power | 77KW / 95KVA |
| Prime Power | 75KW / 94KVA |
| Model | YC6B135Z-D20 |
| Cylinder Number | 6 |
| Bore×Stroke(mm) | 108×125 |
| Power(KW) | 90 |
| Rated RPM(r/min) | 1500 |
| Intake Type | Pressurize |
| Adjust Speed Type | Electronic Speed Controller |
| Engine output end specification--Flywheel case | SAE2# |
| Shape | Straight 6 cylinder |
| Engine output end specification--Flywheel | SAE11.5 |
| Dimension(mm) | 1350×780×1100 |
| Engine Weight (kgs) | 660 |
| Voltage (V) | 380/220 |
| Frequency (HZ) | 50 |
| Insulation Class | H |
| Rated Current (A) | 146 |
| Phase | 3 |
| Altitude | ≤1000m |
| Power Factor | 0.8 |
| Voltage Regulation,Stead State | ≤±1% |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| AVR | SX460 |
| Environment Temperature (°c) | 40 |
| Exciter Type | Brushless,self-exciting |
| Protection Grade | IP23 |
| Silent Type"s Dimension Length × Width × Height (mm) | 2600×1120×1680 |
| Silent Type"s Gross Weight(Kg) | 1500 |
| Silent Type"s 20FT Loading Quantity | 4PCS |
