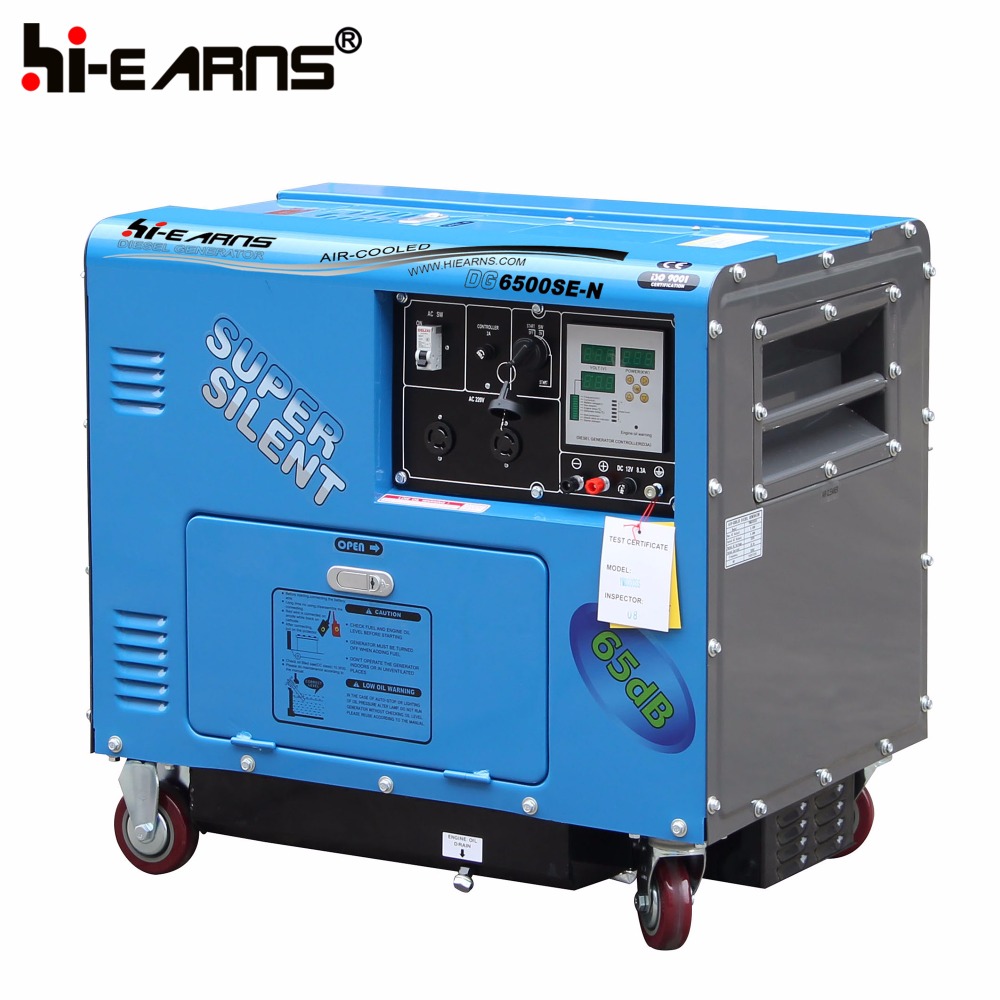

ultra silent diesel electrical generator recoil starter assembly
♦ Use good brand spare parts, unique design canopy
♦ 100% copper alternator, Portable type, with four wheels and brake, easy to move
♦ We are factory, have low price spare parts and timely technical support
| GENERATOR | Model | DG6500SE-N | |
| Frequency (HZ) | 50 | 60 | |
| Max. Output (KW) | 4.6 | 5 | |
| Rated output (KW) | 4.2 | 4.6 | |
| Rated. AC voltage (V) | 120, 220, 230, 240 | ||
| Power factor (cosΦ ) | cosΦ =1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level (at 7m) | 65 | ||
| Fuel tank capacity (L) | 12.5 | ||
| Continues work (H) | 9.3 | 8.5 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single- cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke (mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| DIMENSIONS | Dimension (L× W× H)(mm) | 820×560×780 | |
| Net weight(kg) | 163 | ||
| 20FT | 80 | ||
♦ ISO, CE, GS approved
♦ One year warranty, complete spare parts
♦ Low fuel consumption
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
♦ Line 1: TAXI
Shanghai International Airport(Pudong)
Cost(USD): 85
Time: 2.5 hours
Shanghai HongQiao railway station---Changzhou railway station
Cost(USD): 20
Time: 1 hours
♦ With all the technical advantages, we promise customer one year warranty.
♦ Low price spare parts provided beyond warranty period.
