Home > Products > 10hp 12hp 14hp Italy Type Air Cooled Portable Diesel Engine

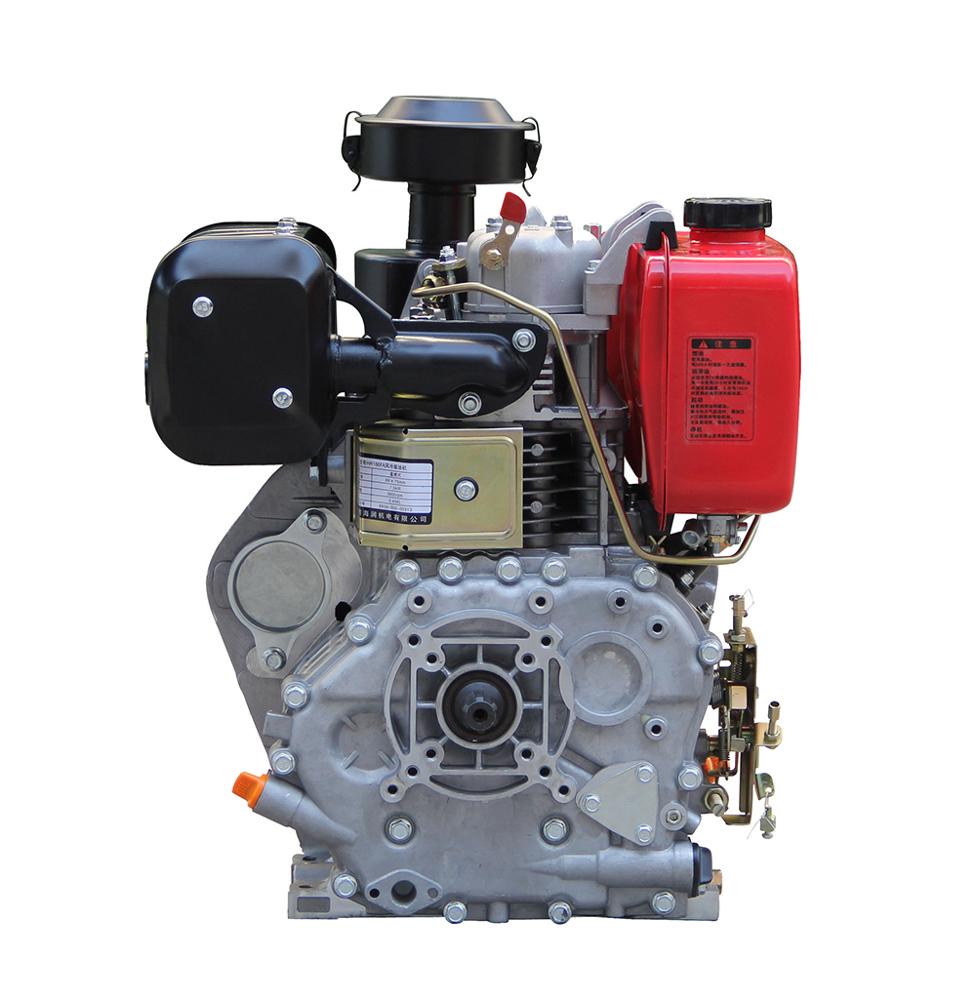

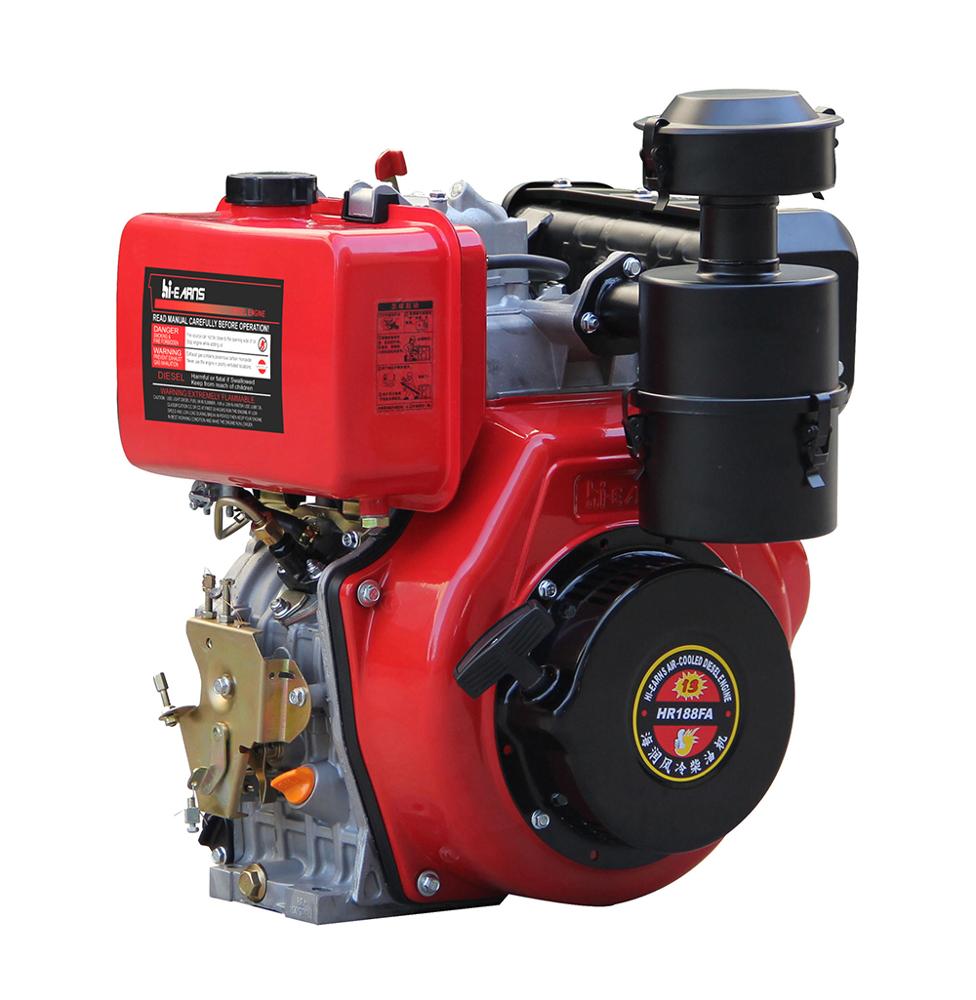

10hp 12hp 14hp Italy Type Air Cooled Portable Diesel Engine

Click on the image to view the original image

Product：	views：410hp 12hp 14hp Italy Type Air Cooled Portable Diesel Engine
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining

Condition:: New

Stroke:: 4 Stroke

Cylinder:: Single Cylinder

Cold Style:: Air-cooled

Start:: Electric start

Place of Origin:: Jiangsu, China

Brand Name:: Hi-earns

Dimension(L*W*H):: 520X490X570mm

Weight:: 46kg

Certification:: CE/ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Color:: Yellow/Green/White/Green/Red/Orange/Blue

Air filter:: Oil bath

Noise:: Low level

Fuel tank:: Best quality

Fuel pump:: Best quality

Displacement:: 456cc

Engine speed:: 3000/3600rpm

Starting system:: Electric start

Fuel tank capacity:: 5.5L

Shaft types:: Keyway shaft

Supply Ability

Supply Ability:: 500 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: 1.Packing way: Carton with plastic film.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 15-25days.

Port: shanghai

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 20	>20
Est. Time(days)	7	To be negotiated

Related Products

Product Description

Air-cooled diesel engine 188FAE

1) Manufacturer
2) Lower Fuel consumption
3) Competitive prices
4) Perfect after-sales service

10hp 12hp 14hp Italy Type electric air cooled Diesel Engine

Model	HR186FAE		HR188FAE		HR192FDE
Bore×stroke(mm)	86×72		88×75		92×75
Displacement(cc)	418		456		498
Engine speed(rpm)	3000	3600	3000	3600	3000	3600
HP	10		12		14
Max.output(kw)	6.5	7.1	7.5	8.0	8.8	9.3
Continuous output(kw )	5.9	6.5	7.0	7.5	8.0	8.5
Power output	Crankshaft
Starting system	Electric
Fuel tank capacity(L)	5.5
Rube oil capacity(L)	1.65
Dimension(mm)	520×490×570
Net weight(kg)	45		46		47

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
