Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000E3
- Rated Voltage:
- 220/380,230/400V
- Rated Current:
- 7.6A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50HZ/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- open and electric
- Panel:
- Voltmeter and AC switch
- Wheel:
- 4inch universal wheel and 4inch solid rubber wheel
- Design:
- New
- Noise:
- 80-85dB
- Power factor:
- 1
- Phase:
- three
- Engine type:
- HR186FA
- Price:
- competitive price
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 74X50X64 cm
- Single gross weight:
- 111.0 kg
- Package Type:
- carton with plywood
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 10 >10 Est. Time(days) 20 25 To be negotiated
Related Products

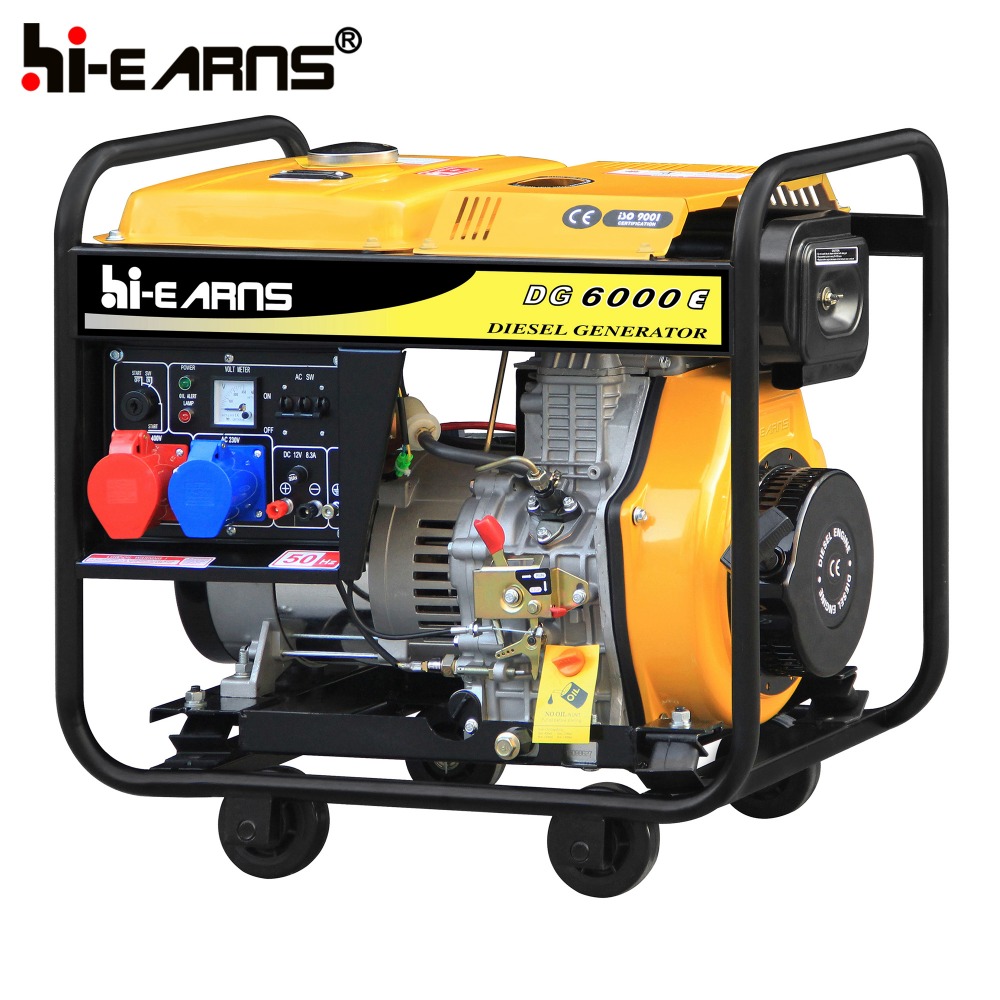

DG6000E3 5KVA open type air cooled diesel generator
| GENERATOR | Model | DG6000E3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 220/380, 230/400, 240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | three phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 6.5 | 6 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 720× 500×630 | |
| Net weight(kg) | 104 | ||
| 20FT | 102 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
Care & Maintenance
About Us
Exhibition
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
Company Information
Our Services
