Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000E3
- Rated Voltage:
- 220,230,380,240,415
- Rated Current:
- 11A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- engine:
- air-cooled diesel engine 198
- Type:
- open
- Color:
- Optional
- Phase:
- 3 Phase
- Control panel:
- Common/digital/ATS
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- plywood pallet with carton
- Port
- shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 21 - 50 >50 Est. Time(days) 15 20 To be negotiated
Related Products

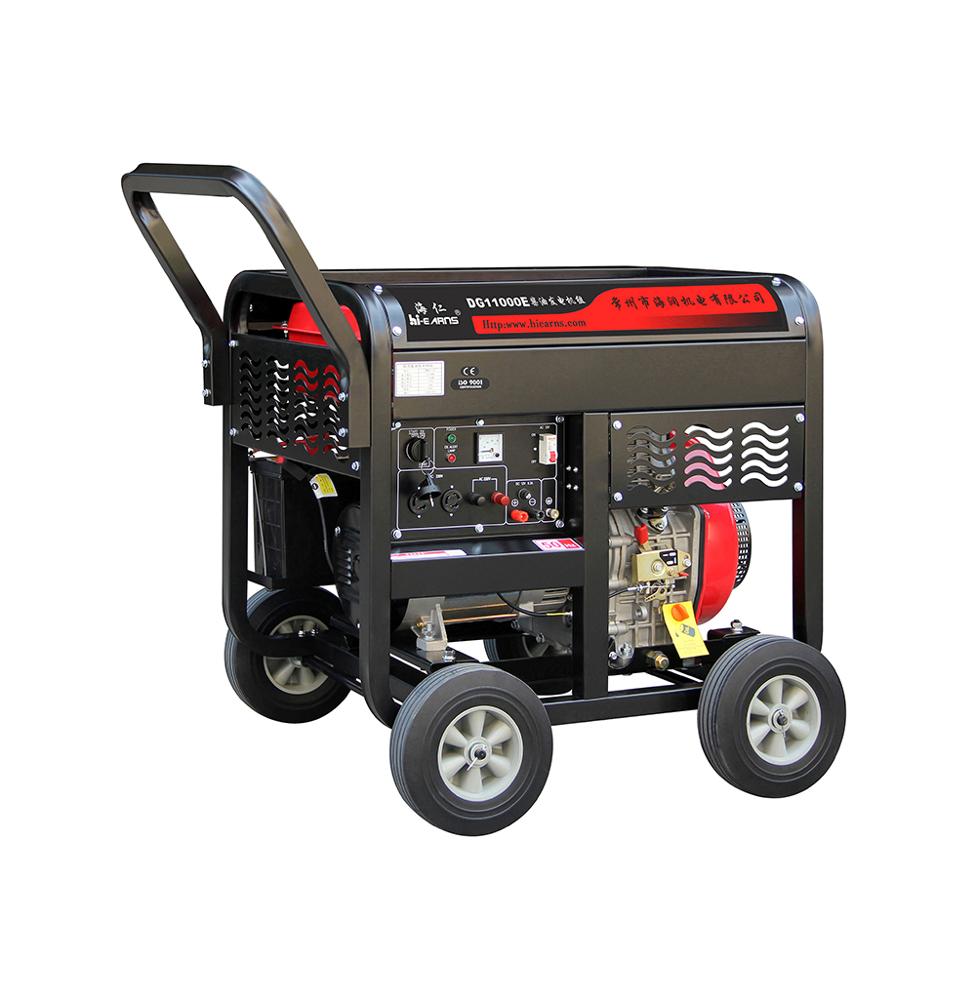

8KW diesel generator 10KVA DG11000 with 198 air cooled engine 3 phase generator
| Model | DG11000E3 | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW) | 8 | |
| Rated output(KW) | 7.5 | |
| Rated AC voltage(V) | 220/380, 230/400 | |
| Power factor | 0.8 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Three phase | |
| Alternator type | Self-excited,2-pole, Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 80-85 | |
| Fuel tank capacity(L) | 12.5 | |
| Continuous work(H) | 5 | |
| ENGINE | Engine Model | HR198FA |
| Engine Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98×84 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 760x530x680 |
| Net Weight(kgs) | 135 | |
| Gross Weight (kgs) | 147 | |
| 20FT loading pcs | 99 | |
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
Care & Maintenance
About Us
Exhibition
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
Company Information
Our Services
