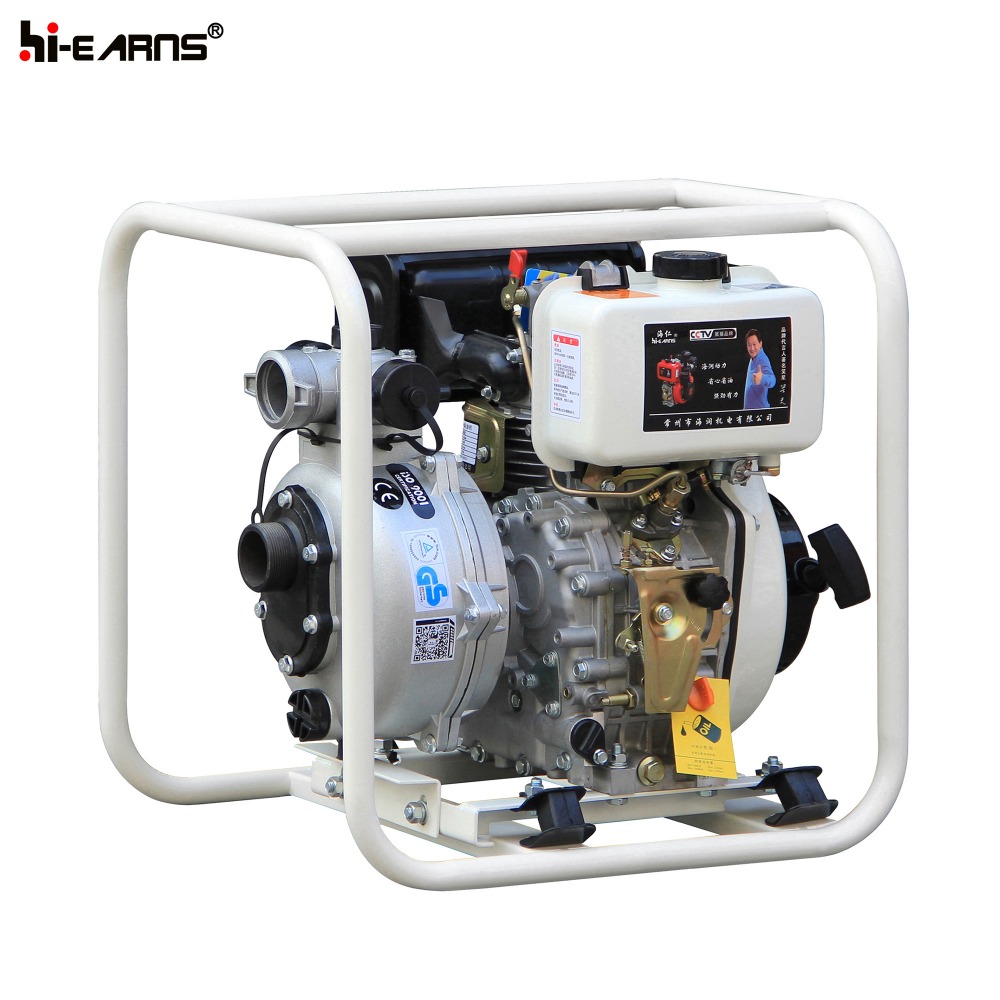

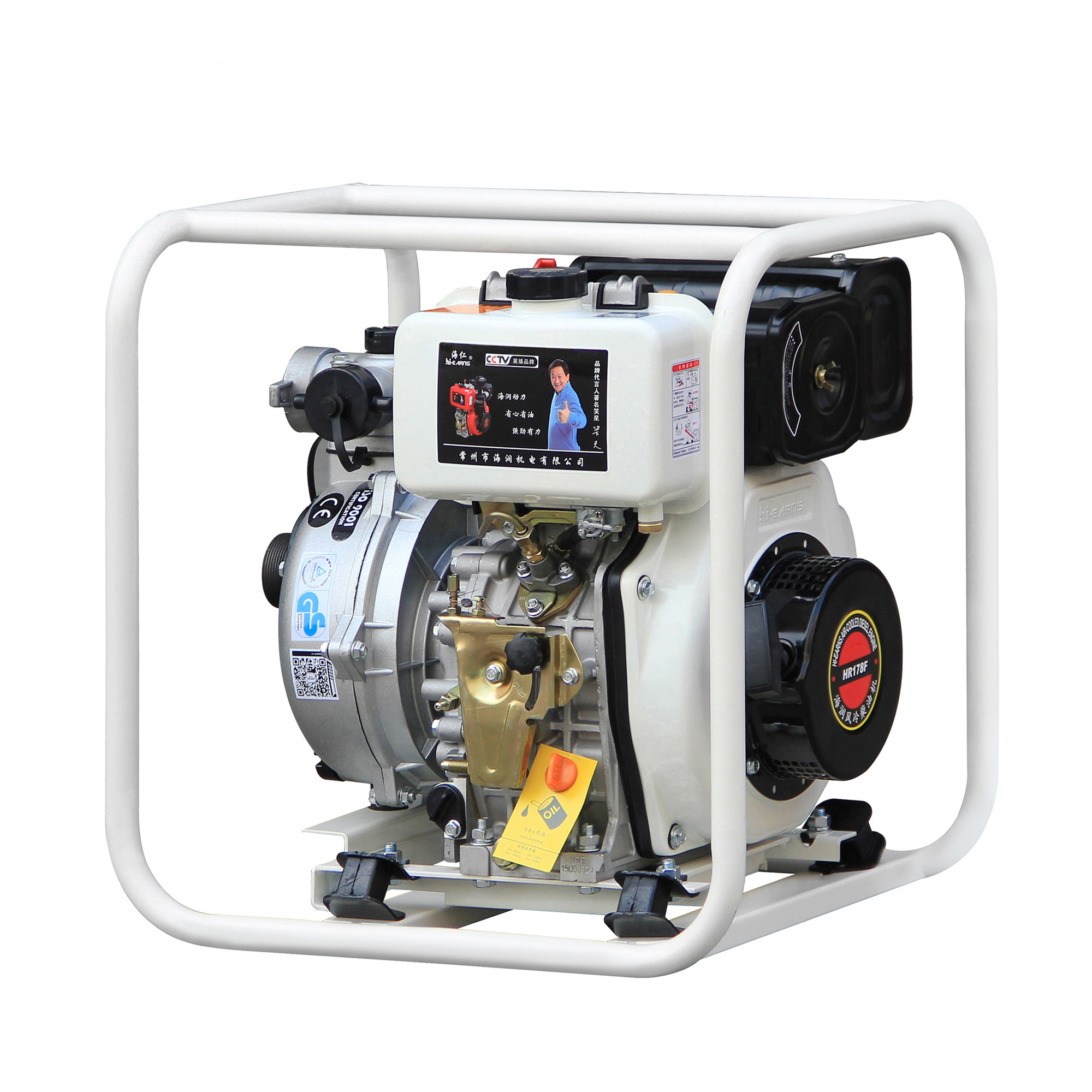

long shoot length high pressure diesel water pump DP20H
♦ DP20H model: With 10 HP HR186FA air-cooled diesel engine, Ensure a big flow and self-priming type; water pump
♦ Also have 2inch, 3 inch and 4 inch models, just according what you need!
♦ Recoil and Electric start are optional ensure easy start!
| WATER PUMP | Model | DP20H | |
| Suction,discharge port diameter[mm(in)] | 50(2"") | ||
| Cont.head(m) | 50 | ||
| Self-priming time(s/4m) | 30 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 23 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86x72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
| Net weight(kg) | 69 | ||
| 20FT | 108 | ||
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
