- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DP20H
- Structure:
- direct connection
- Usage:
- Water
- Application:
- Irrigation
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- diesel water pump:
- water pump
- engine:
- 186FA
- color:
- optional
- Engine power:
- 10HP
- Certificate:
- ISO9001 CE
- Warranty:
- 1 Year
- Motor:
- diesel motor
- Supply Ability:
- 100 Piece/Pieces per Day
- Packaging Details
- Carton
- Port
- FOB SHANGHAI
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 >100 Est. Time(days) 7 15 To be negotiated

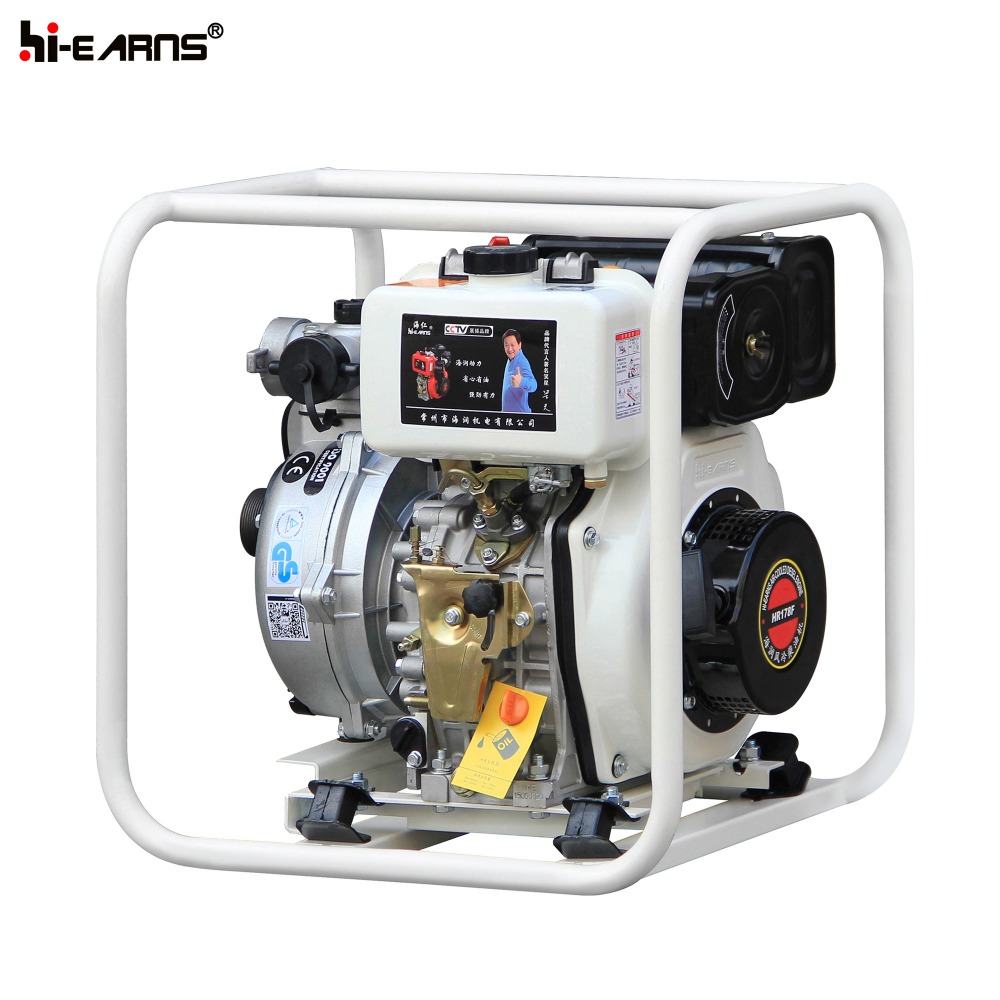

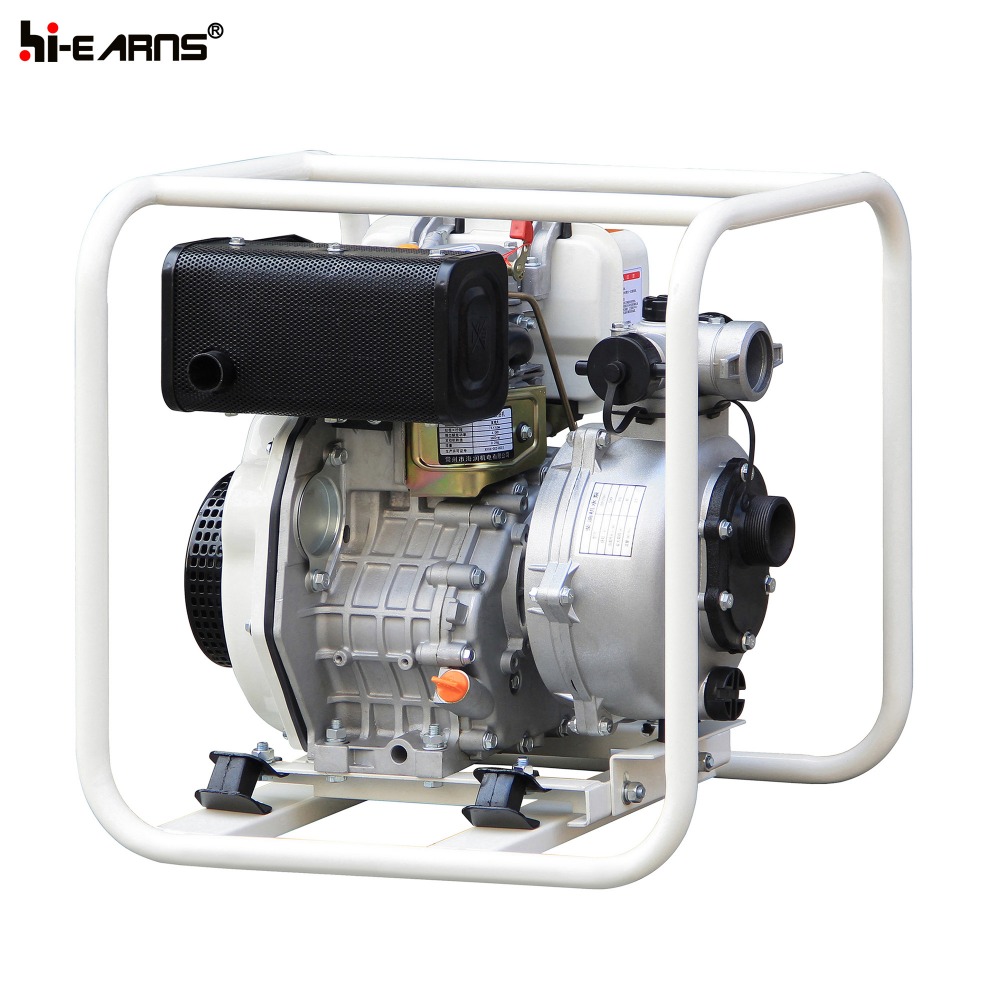

water jet pump high pressure diesel engine driven pump DP20H
♦ DP20H model: With 10 HP HR186FA air-cooled diesel engine, Ensure a big flow and self-priming type; water pump
♦ Also have 2inch, 3 inch and 4 inch models, just according what you need!
♦ Recoil and Electric start are optional ensure easy start!
WATER PUMP | Model | DP20H | |
Suction,discharge port diameter[mm(in)] | 50(2"") | ||
Cont.head(m) | 50 | ||
Self-priming time(s/4m) | 30 | ||
Max suction head(m) | 8 | ||
Cont.capacity(m³/hr) | 23 | ||
ENGINE | Engine model | HR186FA | |
Speed(rpm) | 3600 | ||
Fuel consumption(g/kw.h) | 280 | ||
Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86x72 | ||
Starting system | Recoil or Electric | ||
Fuel tank capacity(L) | 5.5 | ||
STANDARD FEATURES | Oil alert | yes | |
Connector of infall,Connecto of outfall | yes | ||
Filter | yes | ||
Seal ring | yes | ||
Hoop | yes | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
Net weight(kg) | 69 | ||
20FT | 108 |
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
