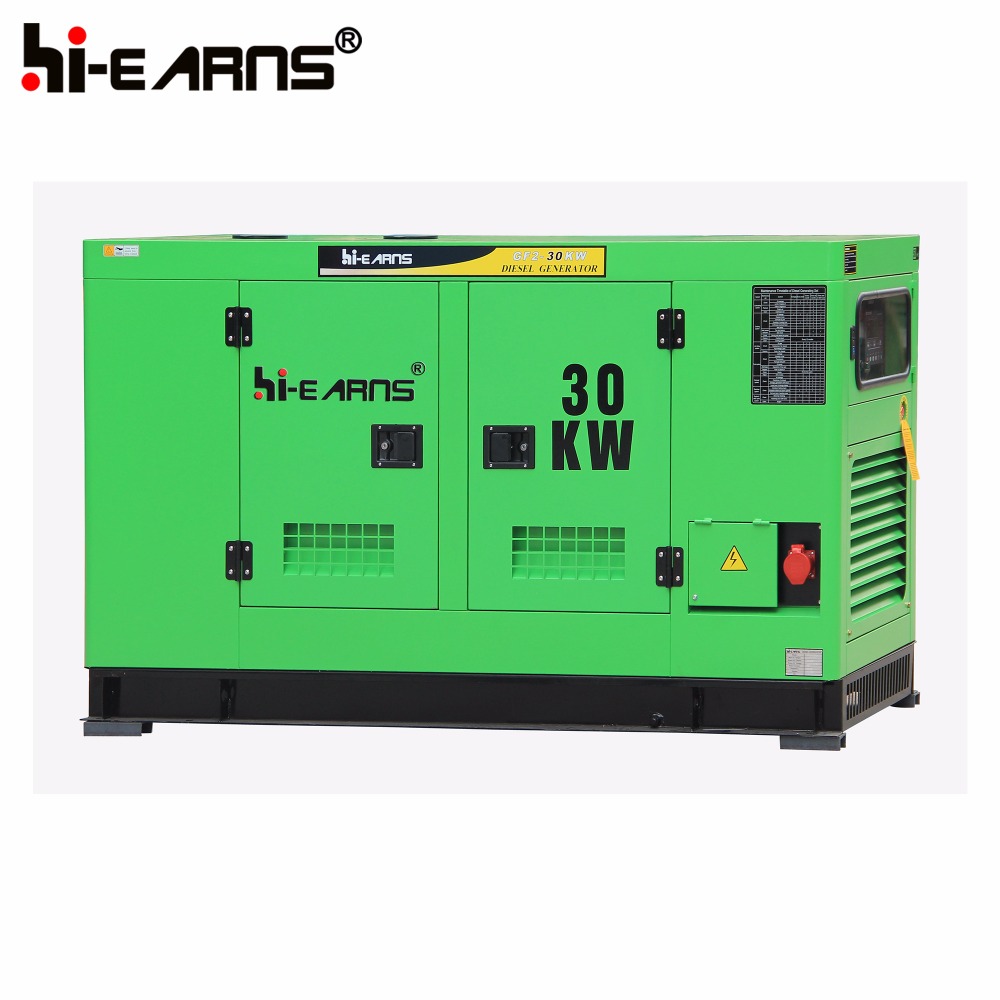

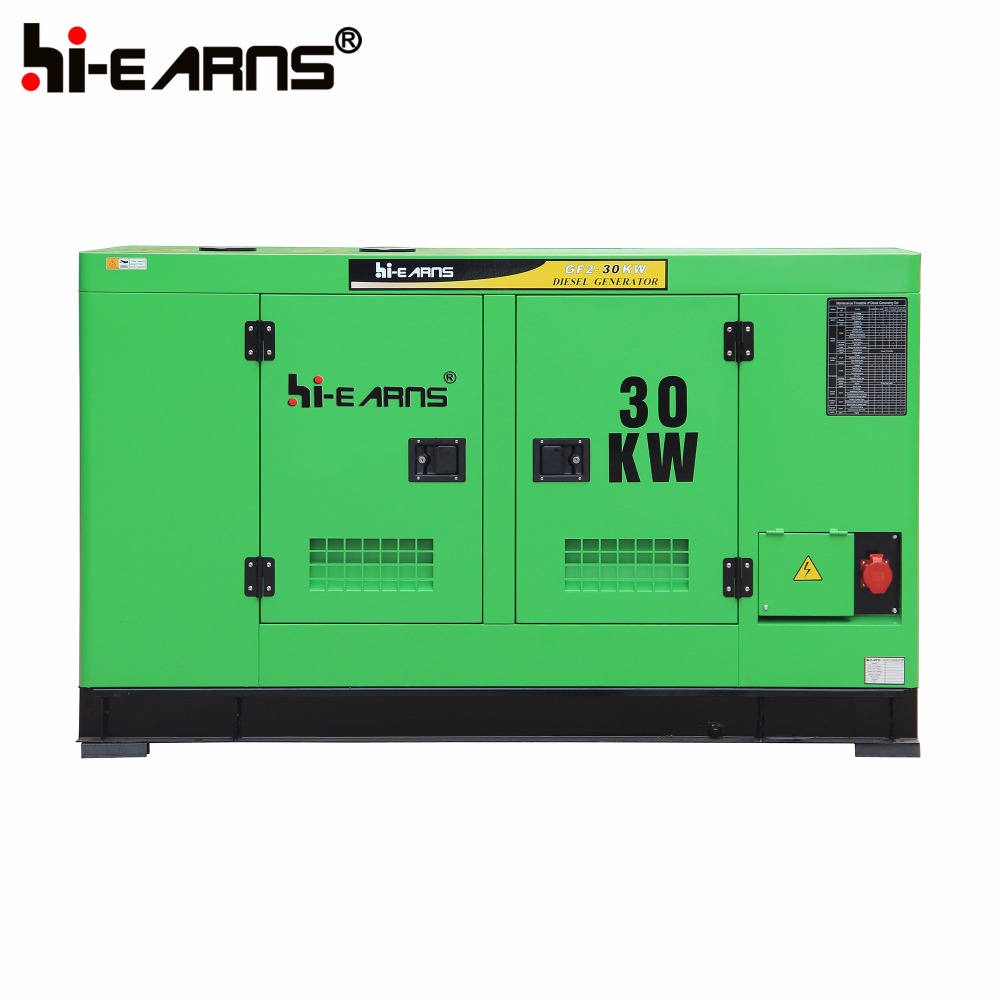

Water-cooled Chinese Weifang Huadong engine 30kw diesel generator price

Click on the image to view the original image

Product：	views：3Water-cooled Chinese Weifang Huadong engine 30kw diesel generator price
Branch：	hiearns
Type：	Silent(super Silent)or Open
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:34

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Related Products

Standby Power	32 KW / 40KVA
Prime Power	30KW / 38KVA
Model	K4100ZD
Cylinder Number	4
Bore×Stroke(mm)	100×115
Displacement(L)	3.61
Rated RPM(r/min)	1500
Rated Speed Regulation %	≤5
Rated Fuel Consumption(g/kW·h)	≤258
Cylinder Head Type	Dry type
Diesel Generator Type	Direct line,Water-cooled,Four stroke
Intake Type	Natually-Aspirated
Combustion Chamber Type	Direct Injection
Lubricating System	Pressure,Split,Complex
Flywheel Cover Specification	SAE4#
Flywheel Specification	SAE7.5″
Add Oil Capacity	6.5L
Voltage (V)	380/220
Frequency (HZ)	50
Insulation Class	H
Rated Current (A)	58
Phase	3
Altitude	≤1000m
Power Factor	0.8
Voltage Regulation,Stead State	≤±1%
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
AVR	SX460
Environment Temperature (°c)	40
Exciter Type	Brushless,self-exciting
Protection Grade	IP23
Silent Type"s Dimension Length × Width × Height (mm)	2120×870×1320
Silent Type"s Gross Weight(Kg)	900
Silent Type"s 20FT Loading Quantity	6PCS
