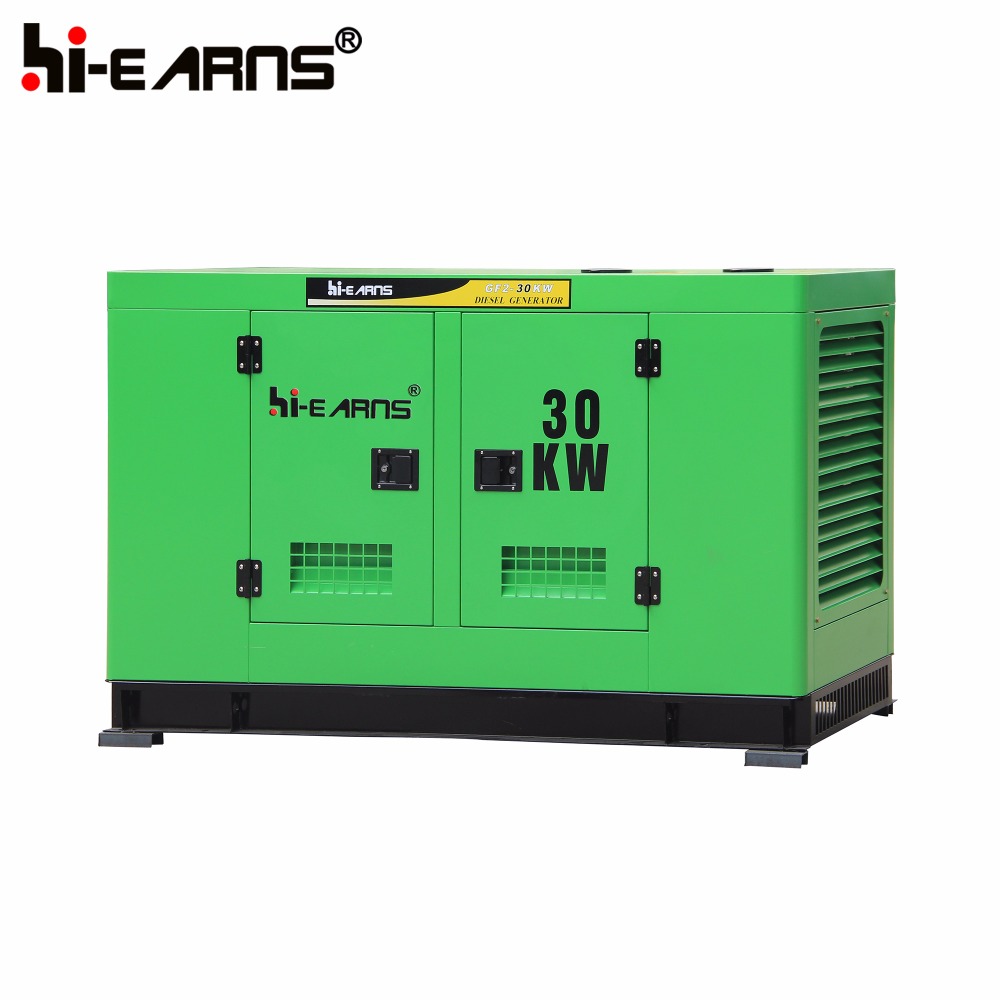

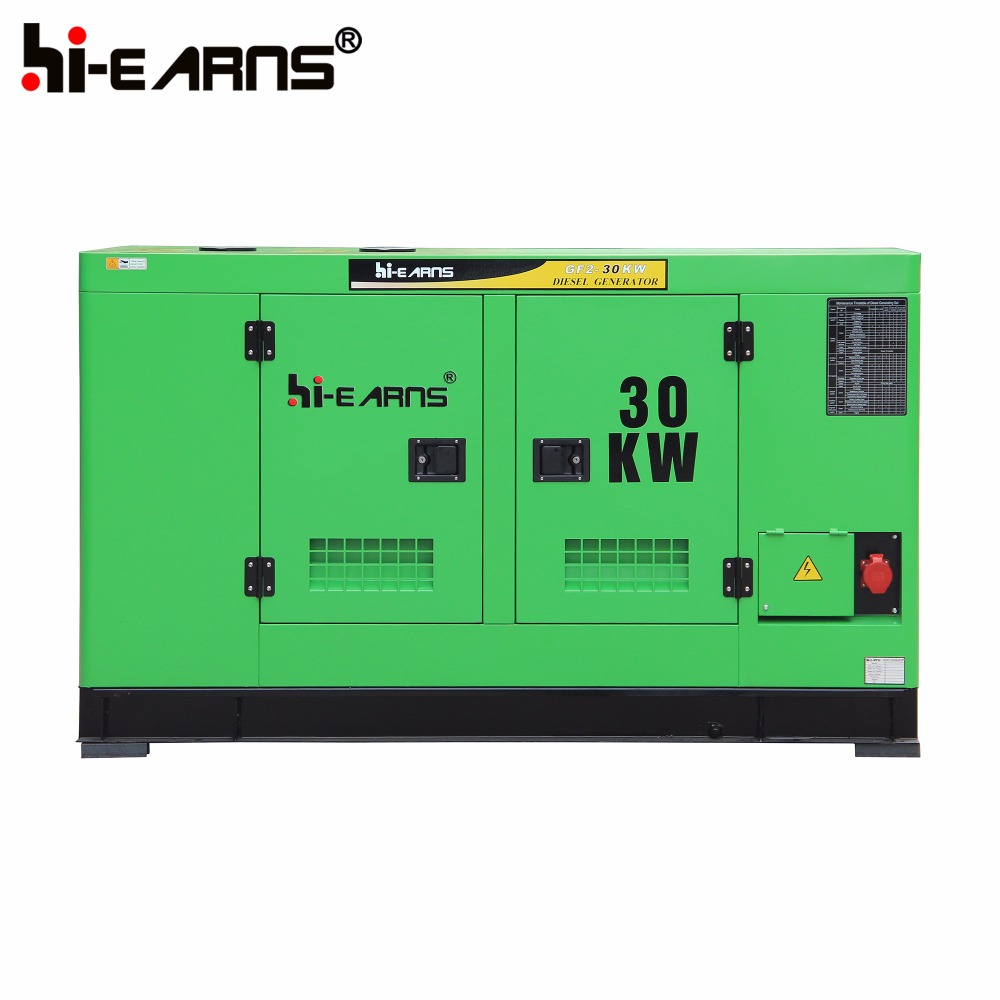

Water-cooled Chinese Weifang Huadong engine 30kw generator
Click on the image to view the original image
Product: views:5Water-cooled Chinese Weifang Huadong engine 30kw generator
Branch: hiearns
Type: Silent(super Silent)or Open
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
hiearns
Model Number:
GF2-30KW
Rated Power:
20KW
Output Type:
AC Three Phase
Rated Voltage:
220/380, 230/400V
Rated Current:
58A
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
Model:
GF2-30KW
Product Name:
Diesel Genertor
Alternator:
Stamford copy brushless alternator
Engine:
Chinese Weifang Huadong Engine
Engine model+:
K4100ZD
Type:
Silent(super Silent)or Open
Certificate:
CE/ISO9001
Color:
Customers' Requirement
Warranty:
1 Year
Controller:
Smartgen
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
iron frame or bubble paper with stretch film
Port
shanghai
Lead Time:
30days after reveiving the deposit

30KW silent Chinese factory diesel generator

Standby Power  32 KW / 40KVA
Prime Power30KW / 38KVA
ModelK4100ZD
Cylinder Number4
Bore×Stroke(mm)100×115
Displacement(L)3.61
Rated RPM(r/min)1500
Rated Speed Regulation %≤5
Rated Fuel Consumption(g/kW·h)≤258
Cylinder Head TypeDry type
Diesel Generator TypeDirect line,Water-cooled,Four stroke
Intake TypeNatually-Aspirated
Combustion Chamber TypeDirect Injection
Lubricating SystemPressure,Split,Complex
Flywheel Cover SpecificationSAE4#
Flywheel SpecificationSAE7.5″
Add Oil Capacity6.5L
Voltage (V)380/220
Frequency (HZ)50
Insulation ClassH
Rated Current (A)58
Phase3
Altitude≤1000m
Power Factor0.8
Voltage Regulation,Stead State≤±1%
Connecting Type3 Phase and 4 Wires,"Y" type connecting
AVRSX460
Environment Temperature (°c)40
Exciter TypeBrushless,self-exciting
Protection GradeIP23
Silent Type"s Dimension Length × Width × Height (mm)2120×870×1320
Silent Type"s Gross Weight(Kg)900
Silent Type"s 20FT Loading Quantity6PCS



Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE,ISO,GS,SONCAP etc.

6.Our logo or OEM



IQC

 Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.



Automatic Workshop

 Modern workshops have advanced production lines and professional knowledge of assembly.

 Flow card to record each details carefully.



Packaging & Shipping

 Strong packaging to ensure safty during transportation.

 7 layer corrugated carton or wooden box packaging for products.



Company Information

We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.



Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
