Home > Products > 250KVA silent water cooled stamford diesel generator for sale

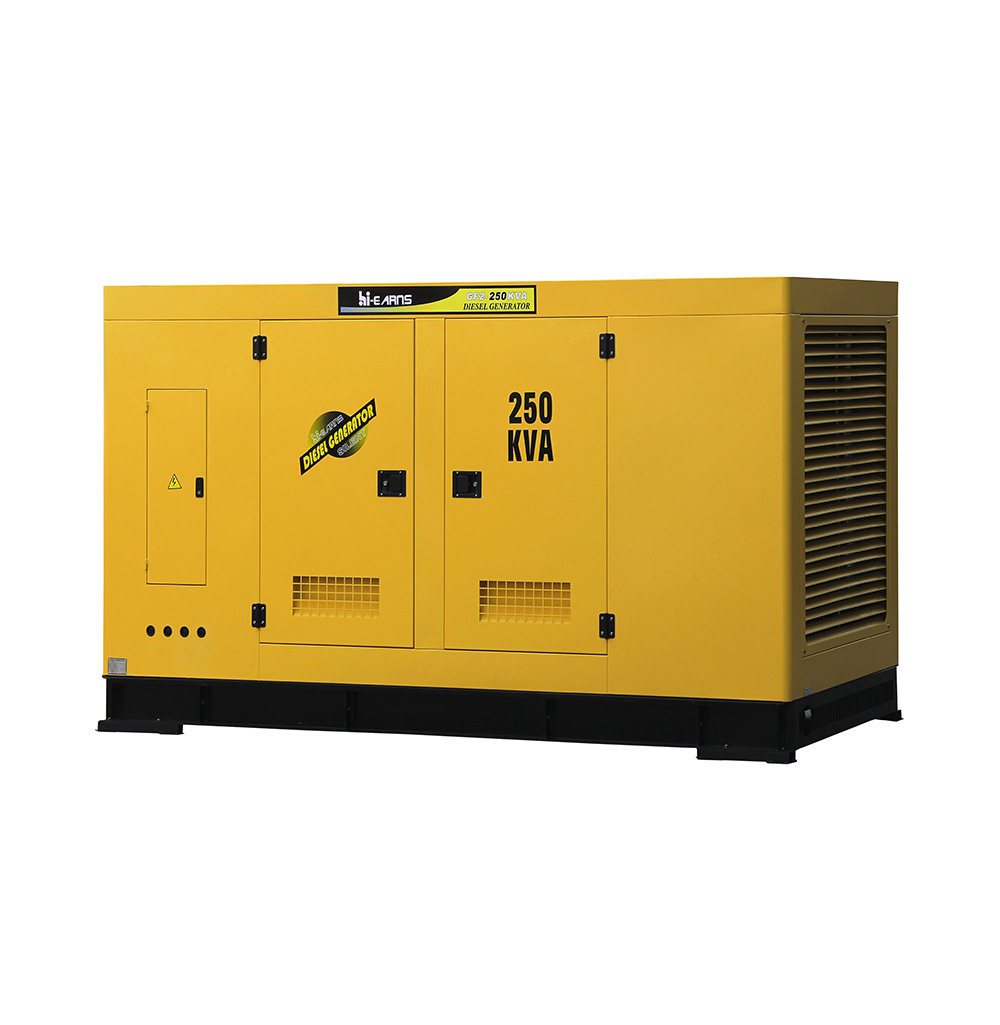

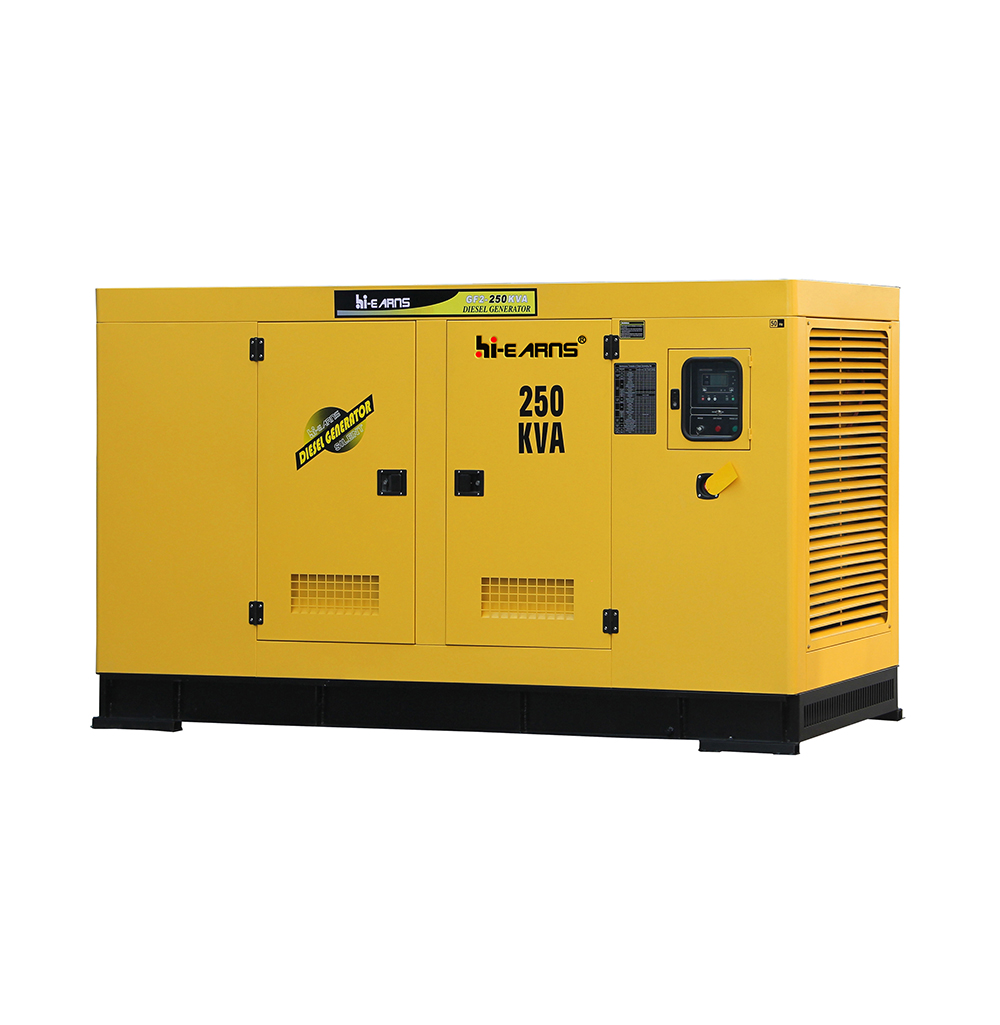

250KVA silent water cooled stamford diesel generator for sale
Click on the image to view the original image
Product： views：3250KVA silent water cooled stamford diesel generator for sale
Branch： Hi-earns
Type： Silent and electric
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-250KVA
Rated Voltage:
220V/380,230/380,240/415V
Rated Current:
380A
Speed:
1500RPM
Frequency:
50HZ
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Type:
Silent and electric
Panel:
Digital panel/ATS
Structure:
Skylight/rings
Wheel:
Solid rubber wheel /omni-directional
Design:
New
Noise:
75dB
Power factor:
0.8
Phase:
three
Engine type:
Cummins 6LTAA8.9-G2
Supply Ability
Supply Ability:
50 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging details:plastic film with wooden plate
Delivery time: 25 days
Port
Shanghai or other Chinese port
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 12 - 4 >4
Est. Time(days)2535To be negotiated
Video Description
Related Products



GF2-250KVA silent three phase water cooled diesel generator

MODEL GF2- 250KVA
Standby Power (50HZ )220KW / 275KVA
Prime Power(50HZ )200KW / 250KVA
ENGINE DATA
Engine Type DCEC Cummins 6LTAA8.9-G2,4-cycle
Air Intake System Turbo,Air/Air Cooling
Fuel System P7100 fuel pump
Fuel Consumption (g/kw.h)197
Cylinder Arrangement 6 in line
Displacement 8.9L
Bore×Stroke 114×145(mm)
Compression Ratio 16.0:1
Rated RPM 1500rpm
Max.Standby Power at Rated RPM                                240KW / 326HP
Governor Type  Electronic
Max Water Temperature104℃
ALTERNATOR DATA
General Data
Compliance with  GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards.
Alternator Data
Number of Phase 3
Connecting Type3 Phase and 4 Wires,"Y" type connecting
Number of Bearing 1
 Power Factor  0.8 Lag
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless,self-exciting
Insulation Class,Temperature Rise                                     H/H
Telephone Influence Factor(TIF) <50
THF <2%
Voltage Regulation,Steady State                               ≤±1%
Alternator Capacity 250KVA
Alternator Efficiencies 92.70%
Air Cooling Flow 0.58m3/s
Dimension & Weight
Open Type Soundproof Type
Overall Size :2.6(m)×1(m)×1.67(m)Overall Size :3.2(m)×1.2(m)×1.75(m)
Weight :2200kgWeight:2900kg
