Home > Products > Water-cooled Chinese Quanchai engine four cylinder 20kw generator

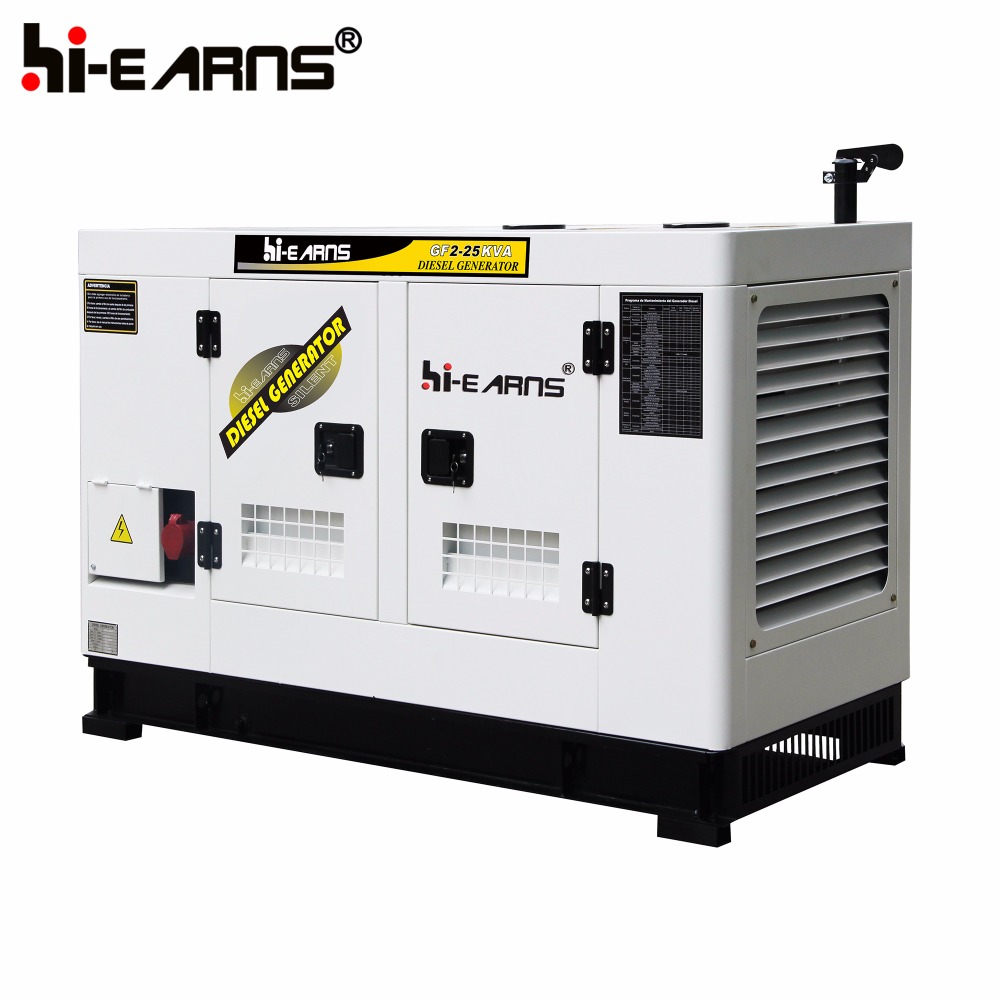

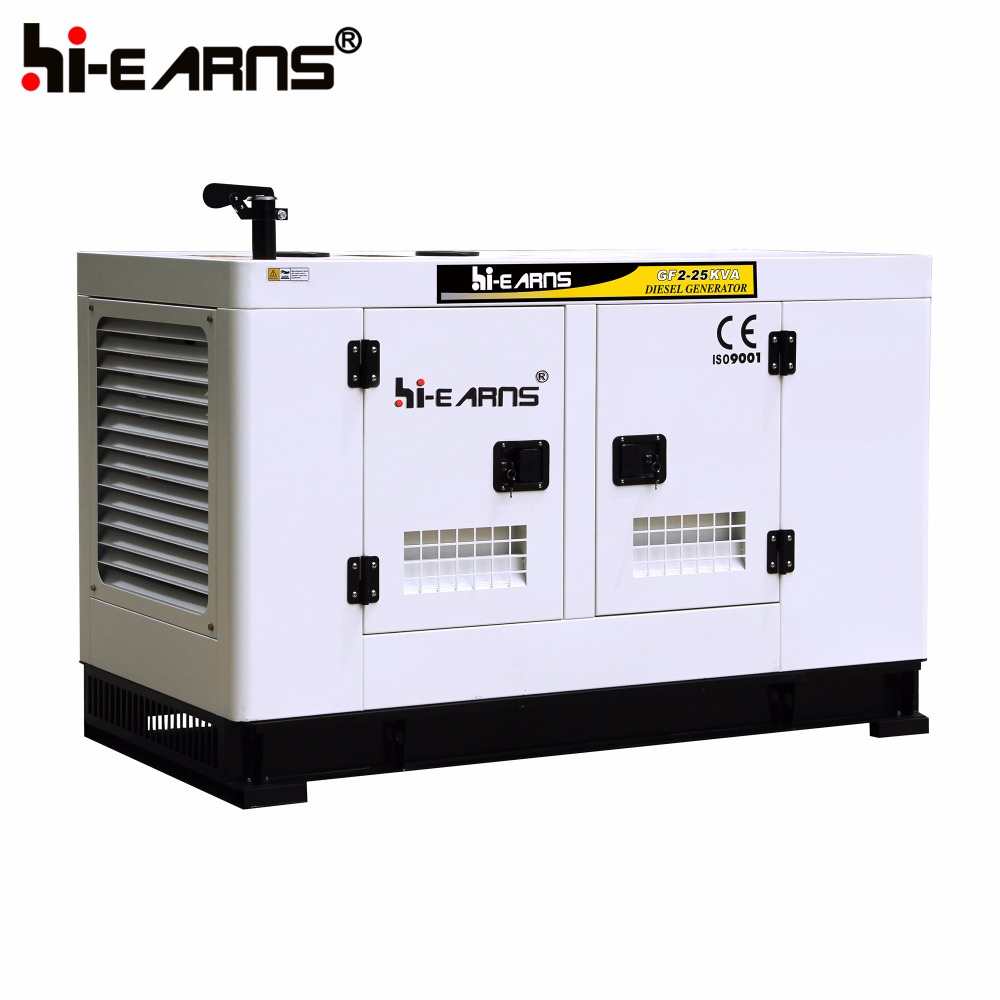

Water-cooled Chinese Quanchai engine four cylinder 20kw generator
Click on the image to view the original image
Product： views：4Water-cooled Chinese Quanchai engine four cylinder 20kw generator
Branch： hiearns
Type： Slient
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
hiearns
Model Number:
GF2-20KW
Rated Power:
20KVA
Output Type:
AC Three Phase
Rated Voltage:
220/380, 230/400V
Rated Current:
37A
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
color:
white
Product Name:
Water-cooled Diesel Genertor
Alternator:
China Stamford
Engine:
Chinese Quanchai Engine
Type:
Slient
Certificate:
CE/ISO9001
Warranty:
1 Year
Controller:
Smartgen
Options:
Customer's Logo
Output:
20KW/25KVA
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
iron frame or bubble paper with stretch film
Port
shanghai
Lead Time:
30days after reveiving the deposit

Water-cooled diesel generator(GF2-20KW)

Standby Power  21KW / 26KVA
Prime Power20KW / 25KVA
ModelQC498D
Cylinder Number4
Bore×Stroke(mm)98×105
Displacement(L)3.168
Rated RPM(r/min)1500
Rated Speed Regulation %≤5
Rated Fuel Consumption(g/kW·h)≤241
Cylinder Head TypeWet type
Diesel Generator TypeDirect line,Water-cooled,Four stroke
Intake TypeNatually-Aspirated
Combustion Chamber TypeDirect Injection
Lubricating SystemPressure,Split,Complex
Flywheel Cover SpecificationSAE4#
Flywheel SpecificationSAE7.5″
Exhaust Fan Diameter(mm)φ410
Flywheel Teeth Number120
Add Oil Capacity6.5L
Voltage (V)380/220
Frequency (HZ)50
Insulation ClassH
Rated Current (A)37
Phase3
Altitude≤1000m
Power Factor0.8
Voltage Regulation,Stead State≤±1%
Connecting Type3 Phase and 4 Wires,"Y" type connecting
AVRSX460
Environment Temperature (°c)40
Exciter TypeBrushless,self-exciting
Protection GradeIP23
Silent Type"s Dimension Length × Width × Height (mm)1950×850×1150
Silent Type"s Net Weight(Kg)756
Silent Type"s 20FT Loading Quantity12PCS







IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.



Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.



Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.



Company Information

♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.
