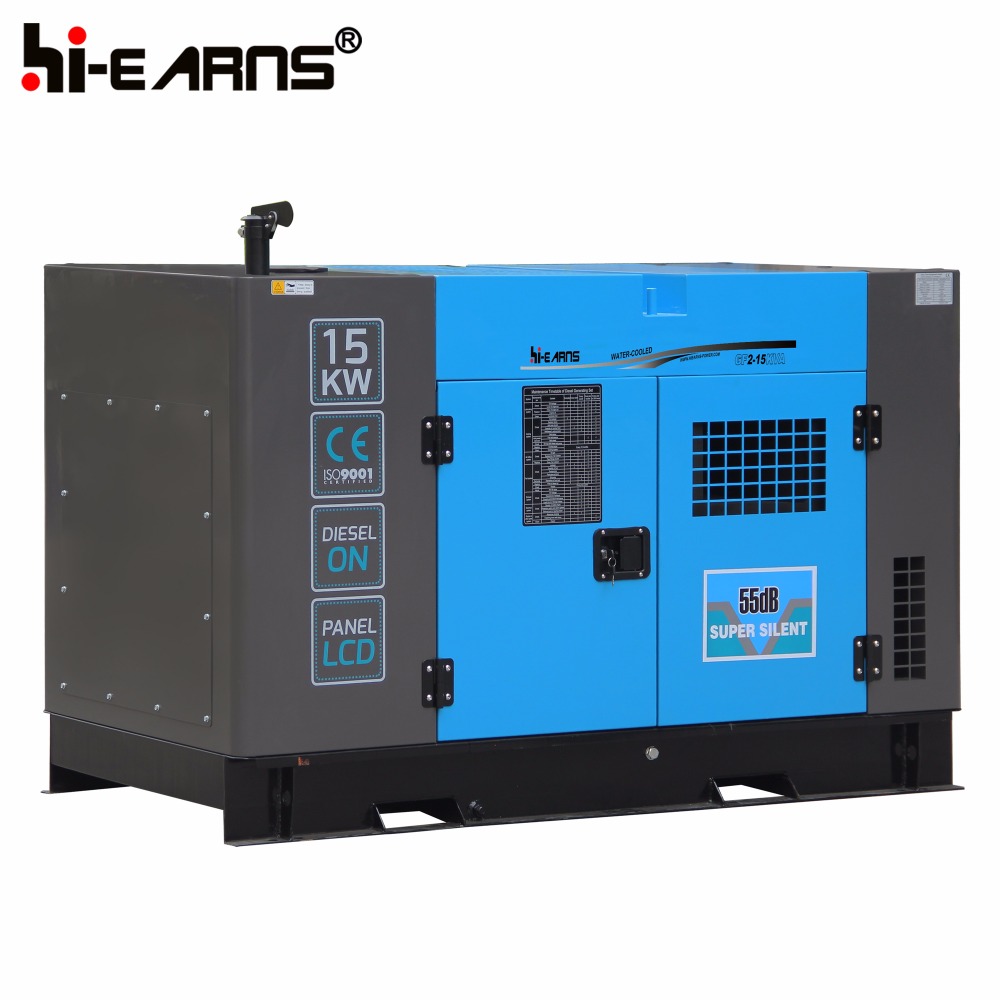

GF2-15KVA super silent 55DB home use water cooled generator
Model | GF2-15KVA |
Standby power (50HZ) | 13KW / 16KVA |
Prime power (50HZ) | 12KW / 15KVA |
Voltage (V) | 220/380V |
Phase | 3 |
Power factor (cosφ) | 0.8 |
Standby amps (A) | 25 |
Engine type | Quanchai Engine N485D, 4-stroke, water-cooled, direct line |
Rated RPM (r/min) | 1500rpm |
Cooling system | Forced water-cooled |
Fuel consumption (g/kw.h) | ≤ 245 |
Rated speed regulation | ≤ 5 |
Bore x stroke (mm) | 85 x 95 |
Displacement (L) | 2.156 |
Start Method | Electric start |
Add oil capacity (L) | 4L |
Alternator Data | |
Power factor | 0.8 Lag |
Insulation class | H |
Lubricating system | Pressure, split, complex |
Exciter type | Brushless, self-exciting |
Altitude | ≤ 1000m |
Environment temperature (°C) | 40 |
Connecting type | 3 phase and 4 wires, "Y" type connecting |
Protection grade | IP23 |
Intake type | Natually-Aspirated |
Rated speed regulation % | ≤±1% |
Phase | 3 |
Overall size (m) | 1.7 x 0.85 x 1.02(m) |
Weight (kg) | 658kg |
