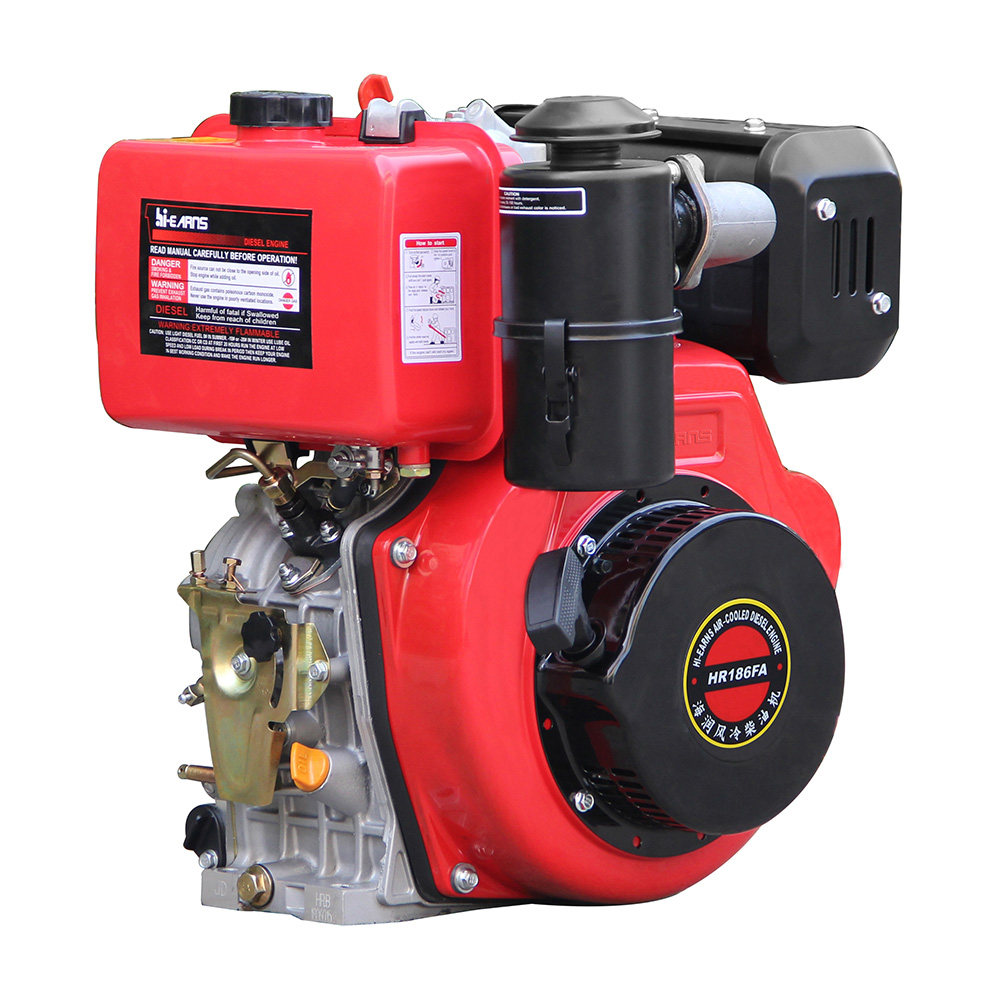

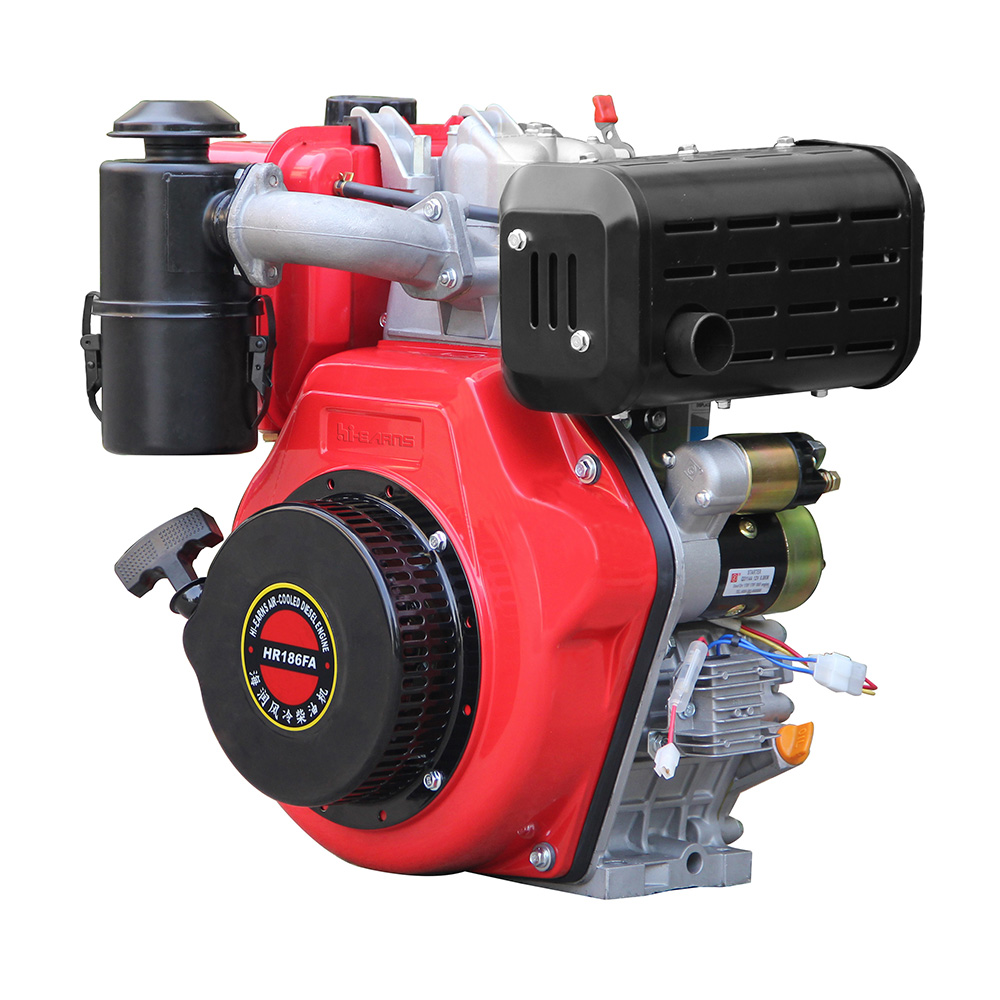

186FAE air cooled 10 hp engine cylinder head
♦ Use good brand spare parts
♦ Stable type, fashionable design
♦ Reliable performance, stable quality, 6hp
♦ We are factory, have low price spare parts and timely technical support
Model | HR186FA | |
Bore×stroke (mm) | 86×72 | |
Displacement (cc) | 418 | |
Engine speed (rpm) | 3000 | 3600 |
Max. output (kw) | 6.5 | 7.1 |
Rated output (kw ) | 5.9 | 6.5 |
Power output | Crankshaft or camshaft (Camshaft PTO rpm is 1/2) | |
Starting system | Recoil or electric | |
Fuel tank capacity (L) | 5.5 | |
Rube oil capacity (L) | 1.65 | |
Dimension (mm) | 515× 485× 570 | |
Net weight (kg) | 45 | |
♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
