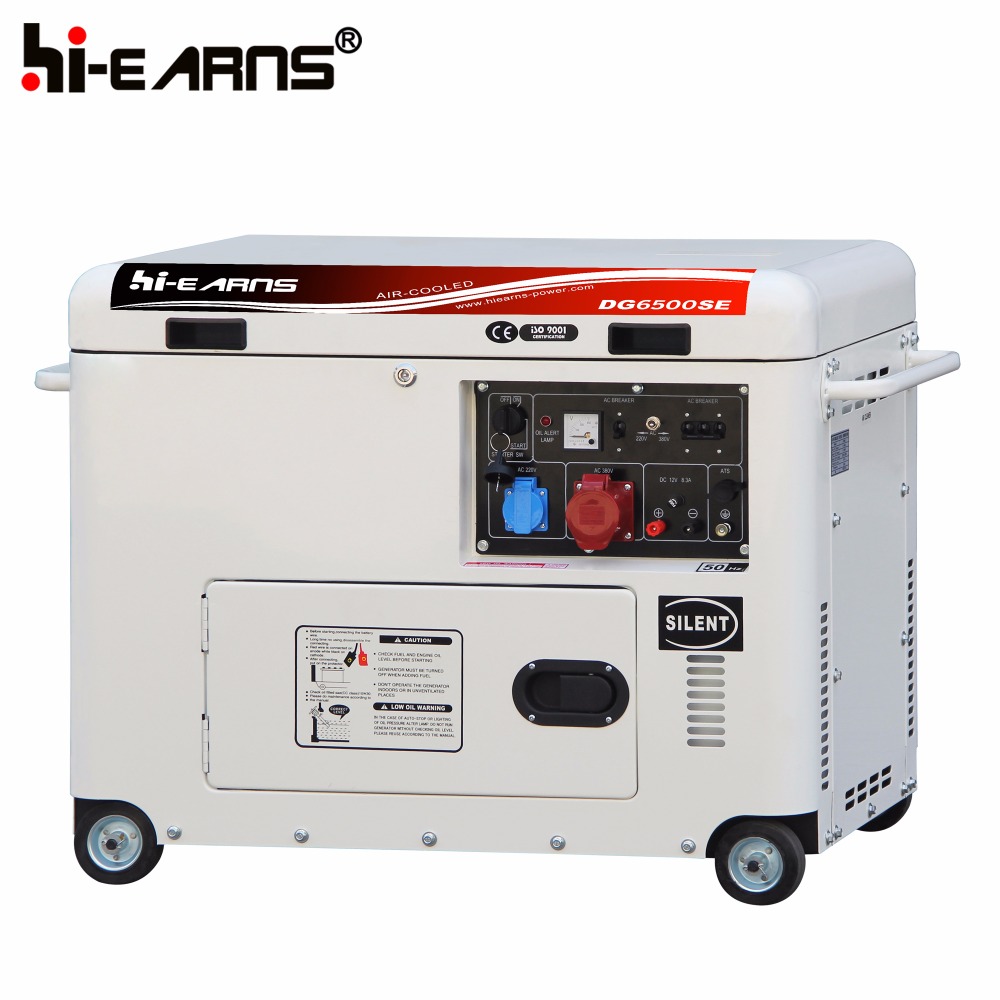

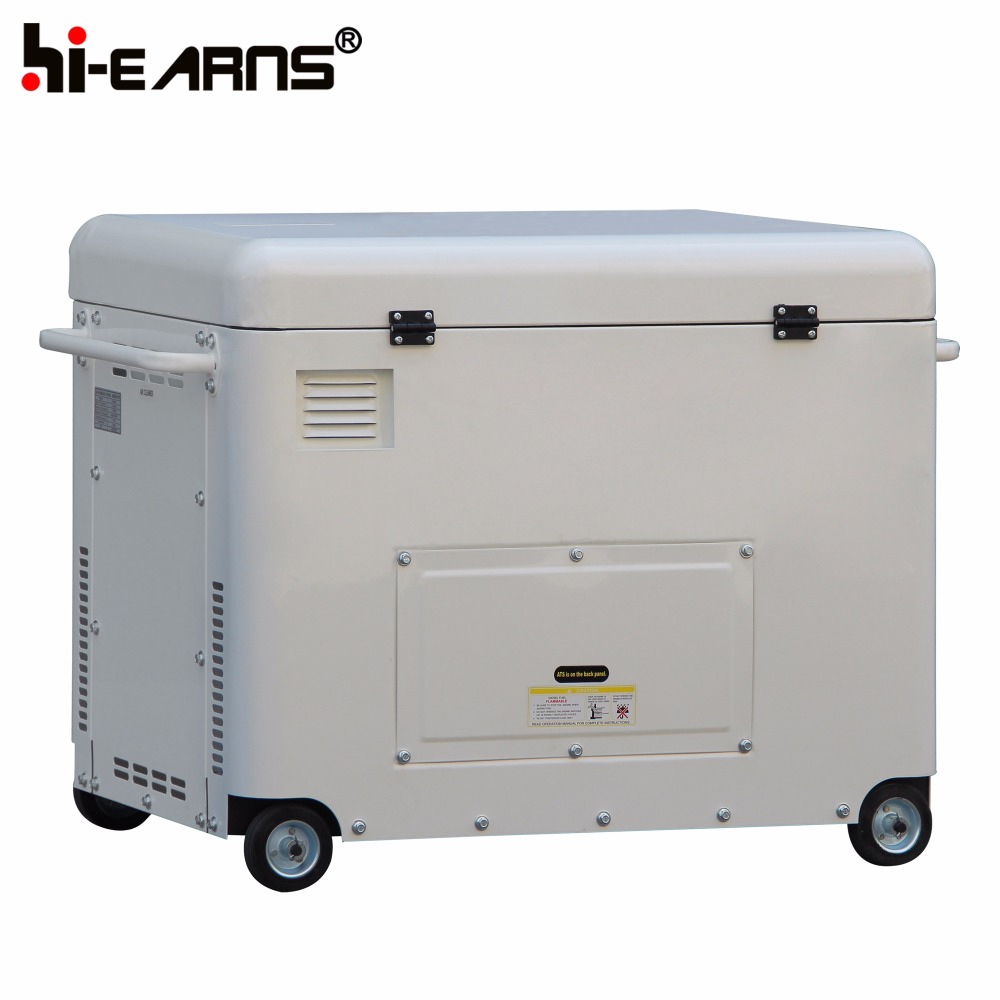

5KVA Silent type diesel generator
♦ Use good brand spare parts, unique design canopy
♦ Portable type, with four wheels, 100% copper alternator
♦ We are factory, have low price spare parts and timely technical support
GENERATOR | Model | DG6500SE3 | |
Frequency (HZ) | 50 | 60 | |
Max. Output (KW) | 5.5 | 6 | |
Rated output (KW) | 5 | 5.5 | |
Rated. AC voltage (V) | 220/380,230/400,240/415 | ||
Power factor (cosΦ ) | cosΦ =1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Three phase | ||
Alternator type | self-excited, 2-pole, three phase alternator | ||
Starting system | Electric | ||
Operating noise level (at 7m) | 70~72 | ||
Fuel tank capacity (L) | 16 | ||
Continues work (H) | 8.5 | 7.8 | |
ENGINE | Model | HR186FA | |
Engine type | Single- cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke (mm) | 86×72 | ||
Fuel | 0# or -10# light diesel fuel | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct lnjection | ||
STANDARD FEATURES | Voltmeter | yes | |
AC Output Socket | 2 | ||
AC circuit breaker | yes | ||
Oil warning light | yes | ||
Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
Calculagraph | optional | ||
Big Wheel | optional | ||
Three phase voltage | optional | ||
Current meter | optional | ||
ATS | optional | ||
Remote control | optional | ||
DIMENSIONS | Dimension (L× W× H)(mm) | 950×560×760 | |
Net weight(kg) | 170 | ||
20FT/40HQ | 72 / 144 | ||
♦ Use famous brand spare parts
♦ ISO, CE, GS approved, Our logo or OEM
♦ One year warranty, complete spare parts for after-sales services
♦ Low fuel consumption, easy maintenance
♦ Economic and practical products from hi-earns, reliable performance.
♦ Choose hi-earns, choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Complete system of IQC.
♦ Perfect QCP.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
