Overview
Quick Details
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Model Number:
- DG7500SE
- Rated Voltage:
- 120,220,230,240
- Rated Current:
- 25A
- Speed:
- 3000/3600RPM
- Frequency:
- 50HZ/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Singlephase
- Engine type:
- HR188FA
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:94X56X74cm
Delivery time: 20 days
One 20FT can load 72 pcs.
One 40HQ can load 144pcs.
- Port
- FOB shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 20 >20 Est. Time(days) 15 To be negotiated
Related Products
Product Description
1.silent, electric, with 30AH storage battery
2.low fuel consumption
3.with four solid rubber wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

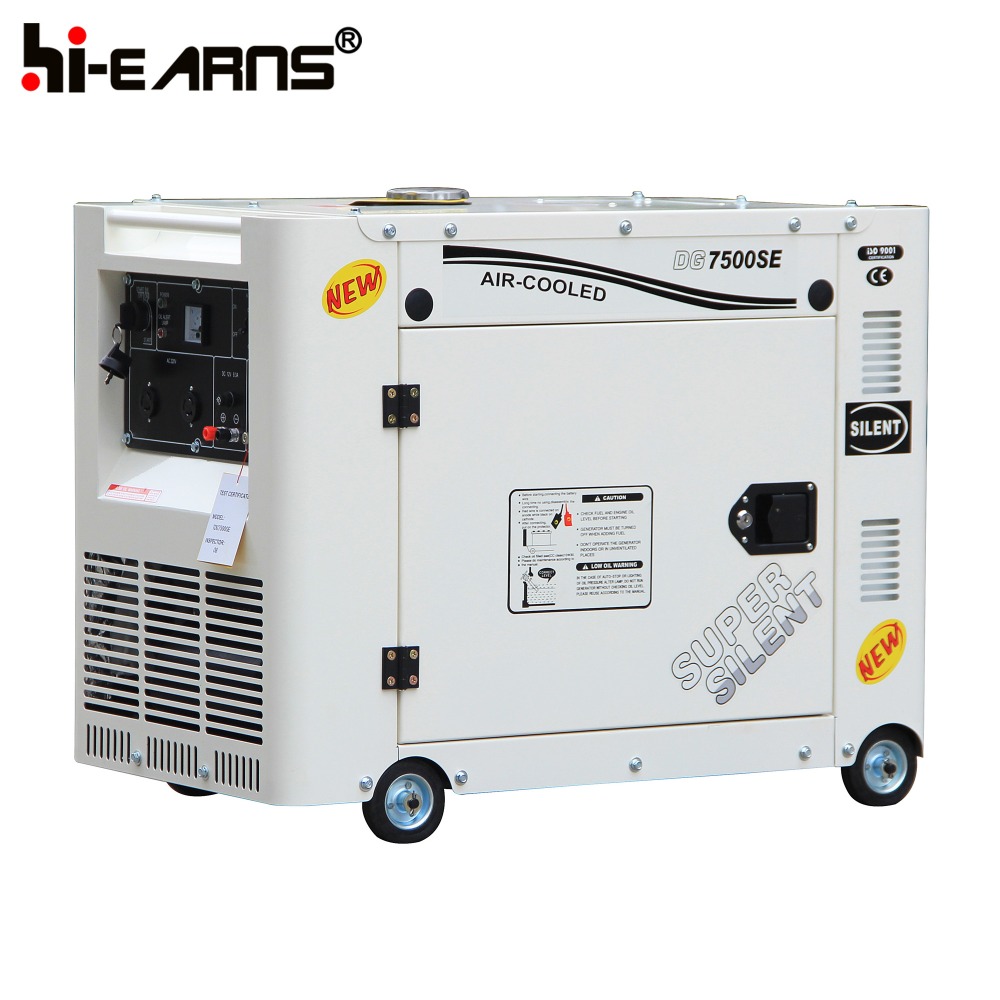

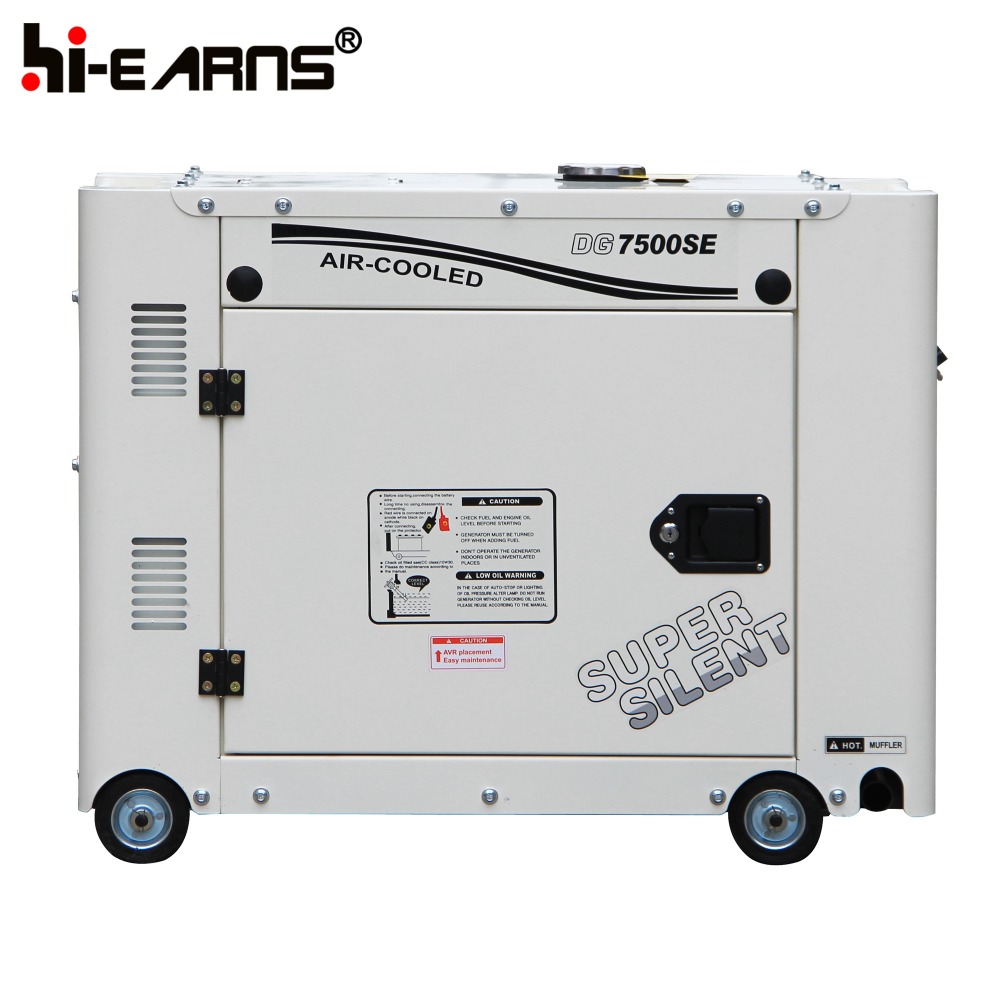

5.5KW electric silent air-cooled diesel generator
| GENERATOR | Model | DG7500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.0 | 6.5 | |
| Rated output(kw) | 5.5 | 6.0 | |
| Rated. AC voltage(v) | 110.220.230.240V | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 8.0 | 7.3 | |
| ENGINE | Model | HR188FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 88×75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 935×525×680 | |
| Net weight(kg) | 170 | ||
| 20FT | 72 | ||
