Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns electric generator
- Model Number:
- DG8000E
- Rated Voltage:
- 220,230,240
- Rated Current:
- 20.9A
- Speed:
- 3000rpm/3600rpm
- Frequency:
- 50/60HZ
- type:
- open with wheels
- start system:
- electric start with battery
- Engine model:
- HR192FB
- Engine power:
- 14HP
- Certificate:
- CE/ISO9001
- Warranty:
- 1 Year
- Color:
- Customers' Requirement
- Alternator:
- 100% Copper SENCI
- Control system:
- control panel control
- Options:
- Breaker
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 75.5X52X63 cm
- Single gross weight:
- 120.0 kg
- Package Type:
- Carton with plywood plate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 >20 Est. Time(days) 15 To be negotiated
Related Products

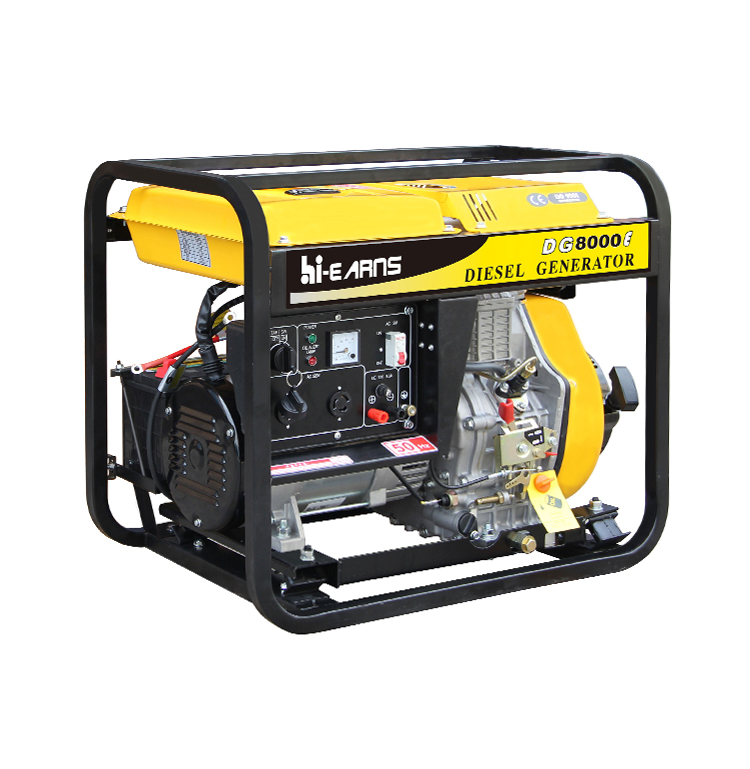

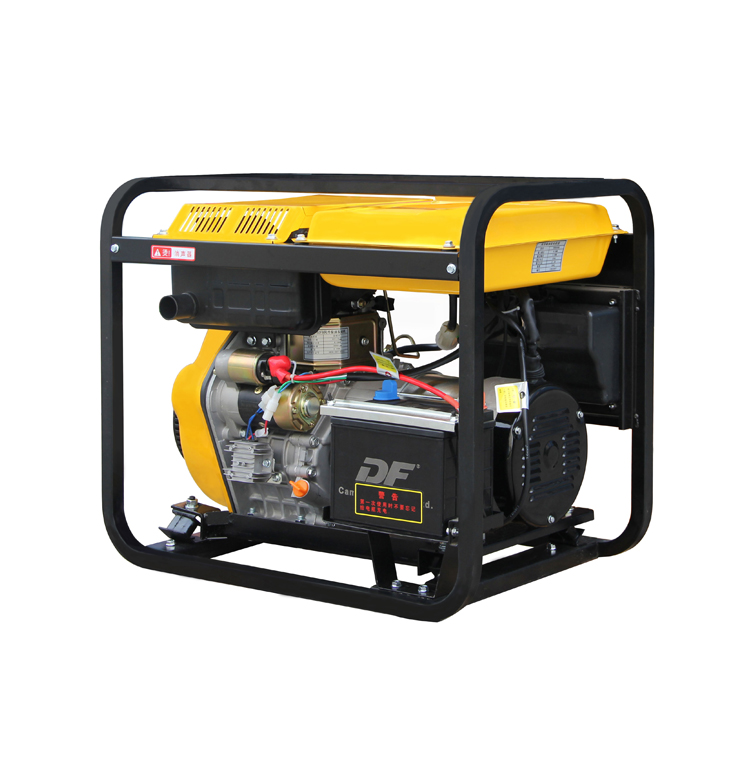

6KVA small portable diesel electric generator
DG8000E model: ♦ With 14 HP HR192FB diesel engine and 100% copper alternator ensure a 6KW rated output, and 6.5KW max. output!
♦ Open frame model portable model with 4 wheels ensure easily moving; Also can make silent type DG8500SE, noise can cut down;
| GENERATOR | Model | DG8000E | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.5 | 7.5 | |
| Rated output(kw) | 6 | 7 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 6.5 | 6 | |
| ENGINE | Model | HR192FBE | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 760× 500×640 | |
| Net weight(kg) | 115 | ||
| 20FT | 105 | ||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as construction site,supermarket,hotel,server room,hospital,animal husbandry,fishery,camping
