- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns or OEM
- Model Number:
- DG7000E
- Rated Voltage:
- 220,230220/380
- Rated Current:
- 8.3A
- Speed:
- 3000rpm
- Frequency:
- 50HZ
- Generator model:
- 5.5KW diesel generator
- color:
- optional
- start system:
- electric start with battery
- Engine model:
- HR188FA
- Engine power:
- 12HP
- Control system:
- control panel control
- Certificate:
- CE/ISO9001
- Warranty:
- 12 Months
- Options:
- Breaker
- Alternator:
- 100% Copper SENCI
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 77X53X64 cm
- Single gross weight:
- 123.0 kg
- Package Type:
- Carton packing with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 100 >100 Est. Time(days) 10 20 To be negotiated

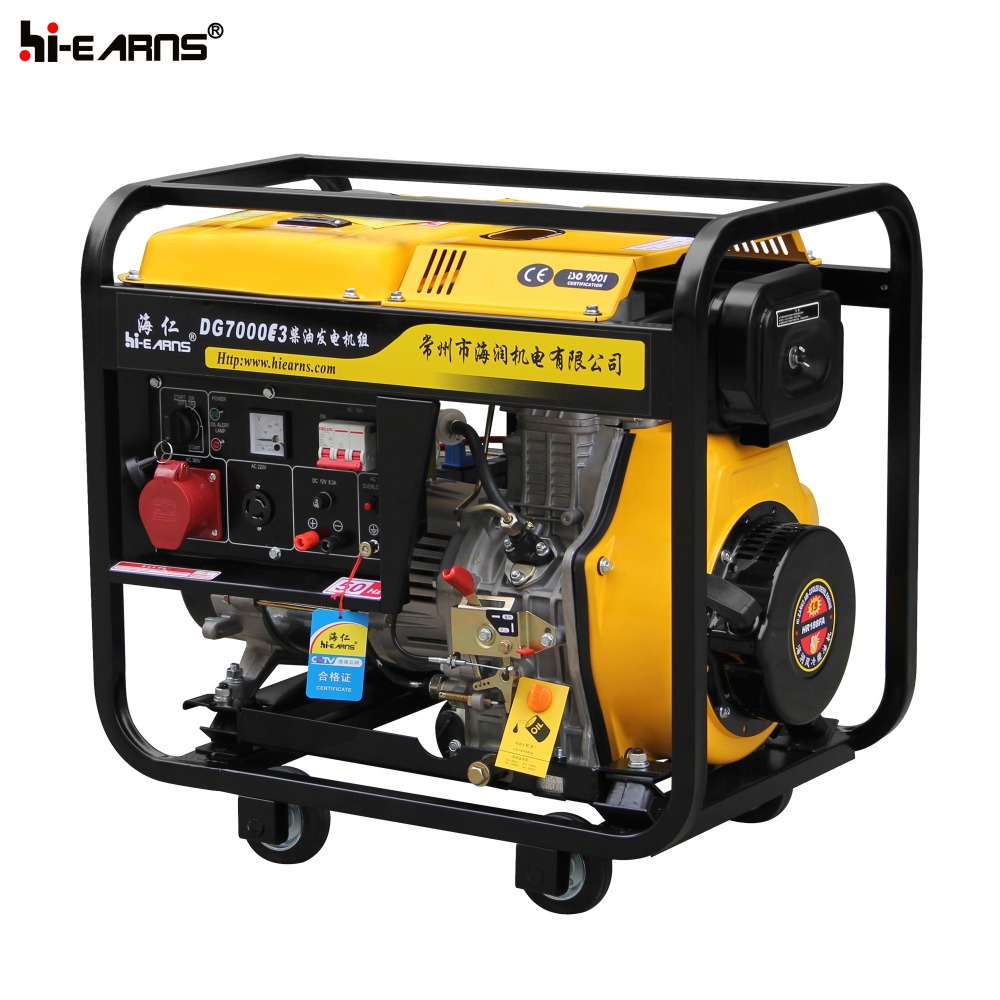

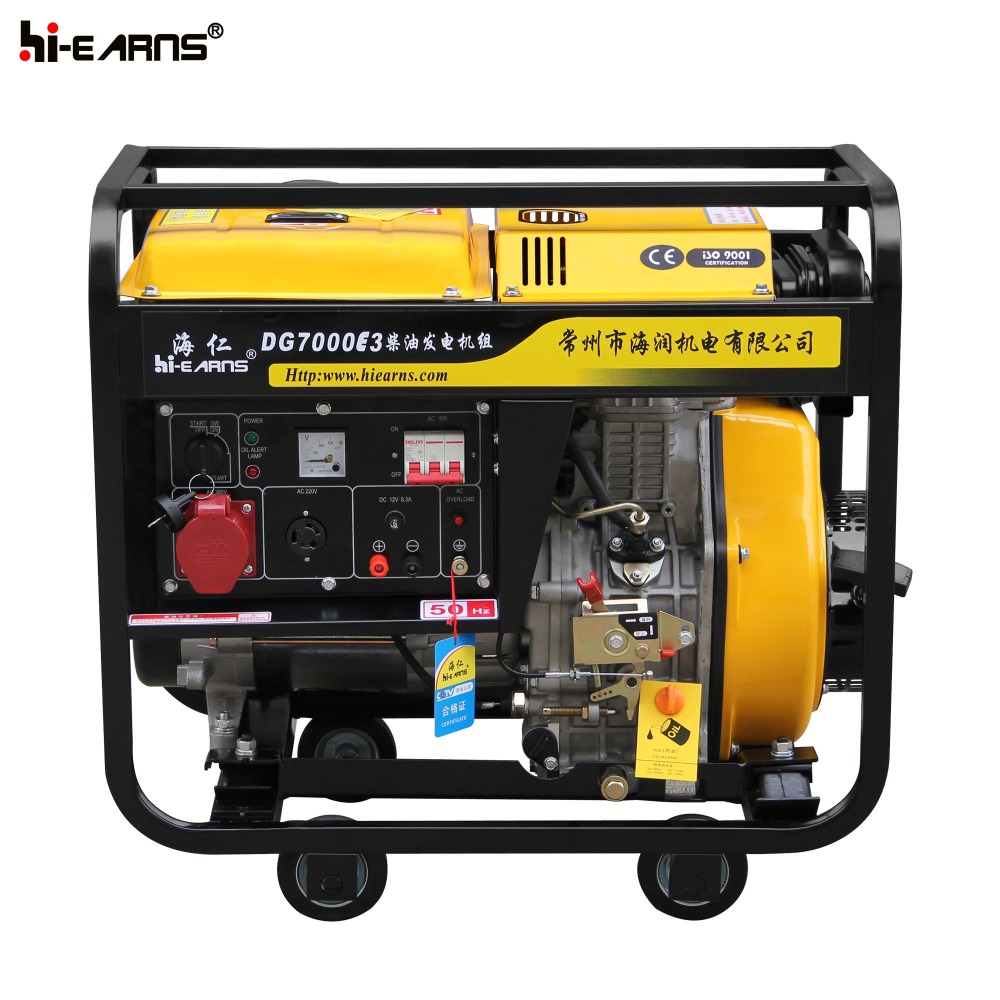

Rated 5KW output open frame portable 188FA engine diesel generator
♦DG7000E model: With 12 HP HR188FA air cooled diesel engine and 100% copper wire KETE alternator ensure a 5KW rated output, and 5.5KW max. output! diesel generator
♦Electric start with 30AH battery; portable type with 4 small wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have silent model DG7500SE, the noise can be smaller, and the price also be good!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
| GENERATOR | Model | DG7000E | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5.5 | 6.0 | |
| Rated output(kw) | 5.0 | 5.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240,380,400,415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase/ three phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 6 | 5.5 | |
| ENGINE | Model | HR192FB | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 88×75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 755× 520×630 | |
| Net weight(kg) | 118 | ||
| 20FT | 124 | ||
