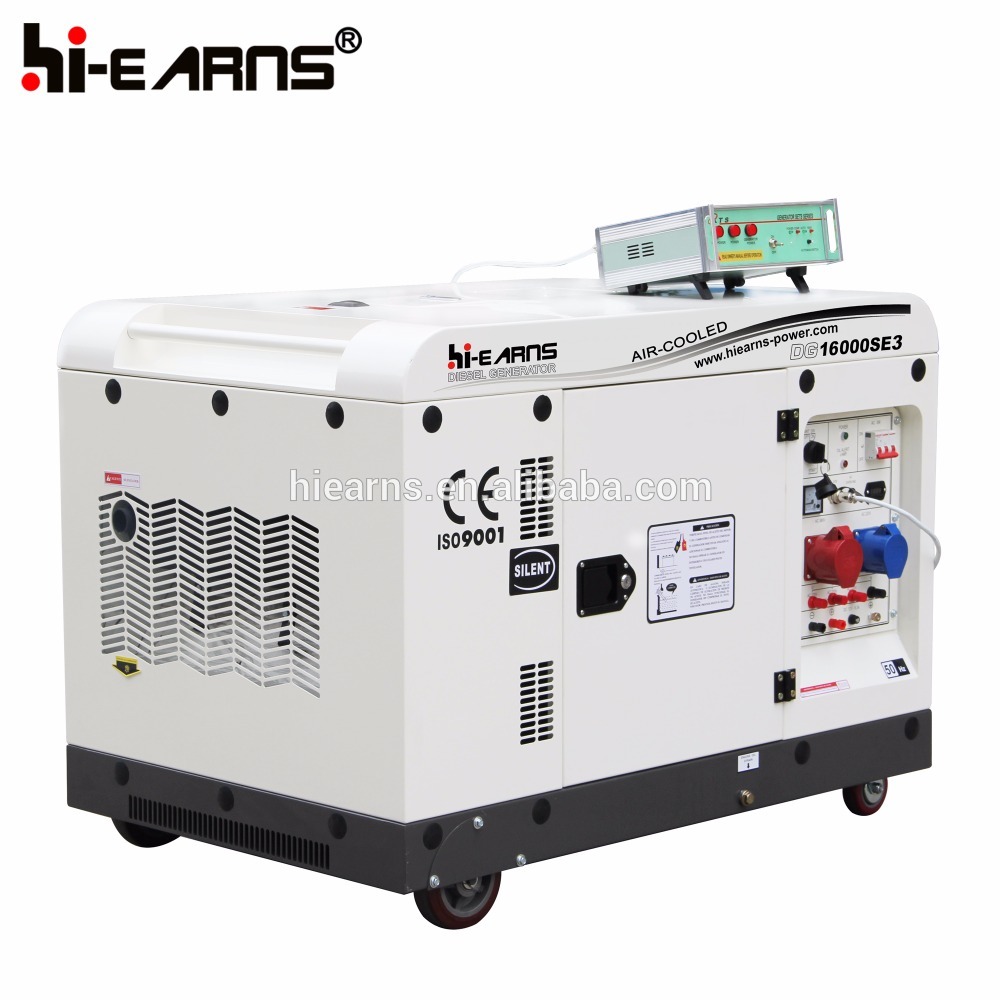

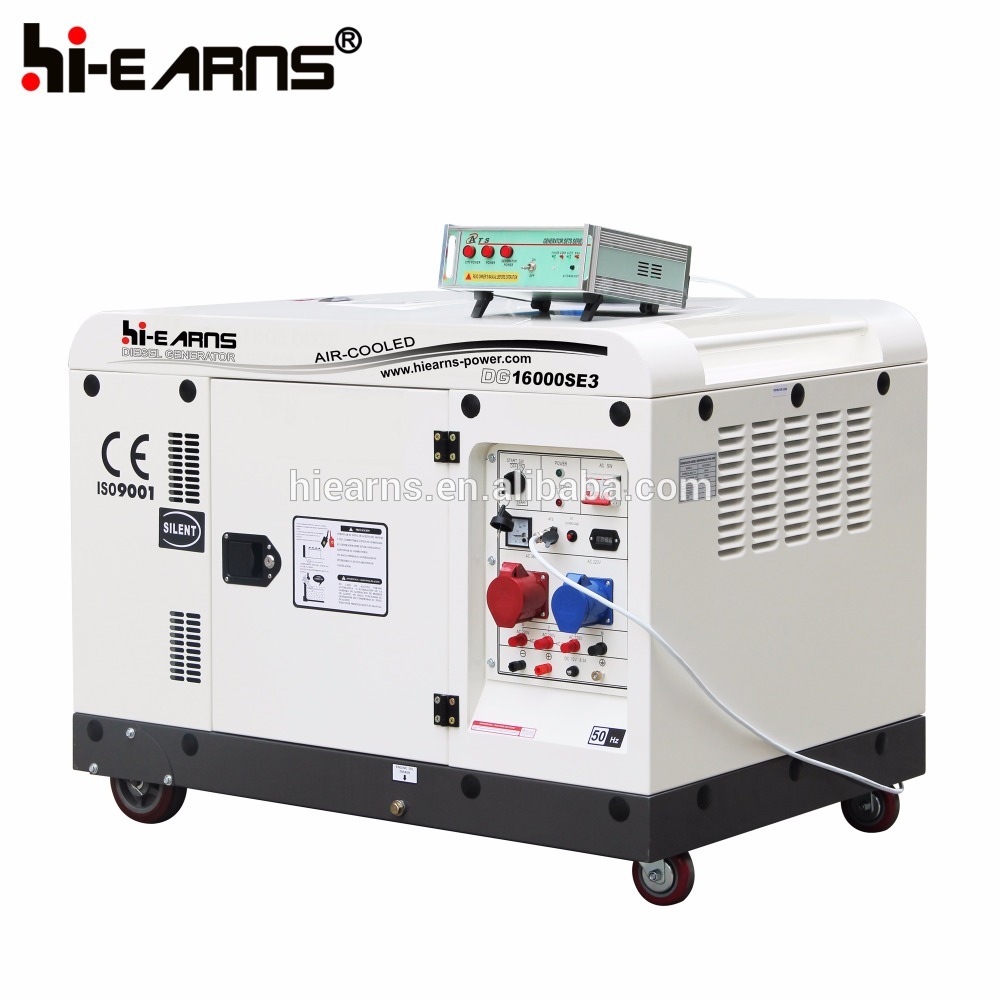

DG16000SE3 10KW air cooled twin cylinder three phase diesel generator
| GENERATOR | Model | DG16000SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 12 | 13 | |
| Rated output(kw) | 11 | 12 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 220/380, 230/400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase / three phase | ||
| Alternator type | self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 8.5 | 7.8 | |
| ENGINE | Model | HR2V92F | |
| Engine type | Twin-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92× 75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 4 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1220× 820× 930 | |
| Net weight(kg) | 280 | ||
| 20FT | 22 | ||
