Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE
- Rated Voltage:
- 220,230,240V
- Rated Current:
- 34A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single phase
- Engine type:
- HR198FAE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 113X76X86 cm
- Single gross weight:
- 220.0 kg
- Package Type:
- Carton with plastic film and plywood pallets
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 7 15 To be negotiated
Related Products
Product Description
1.Silent, electric, with 36AH storage battery;
2.Low fuel consumption;
3.With four solid wheel;
4.Good quality and after sales service;
5.CE,GS,EPA,ISO9001.

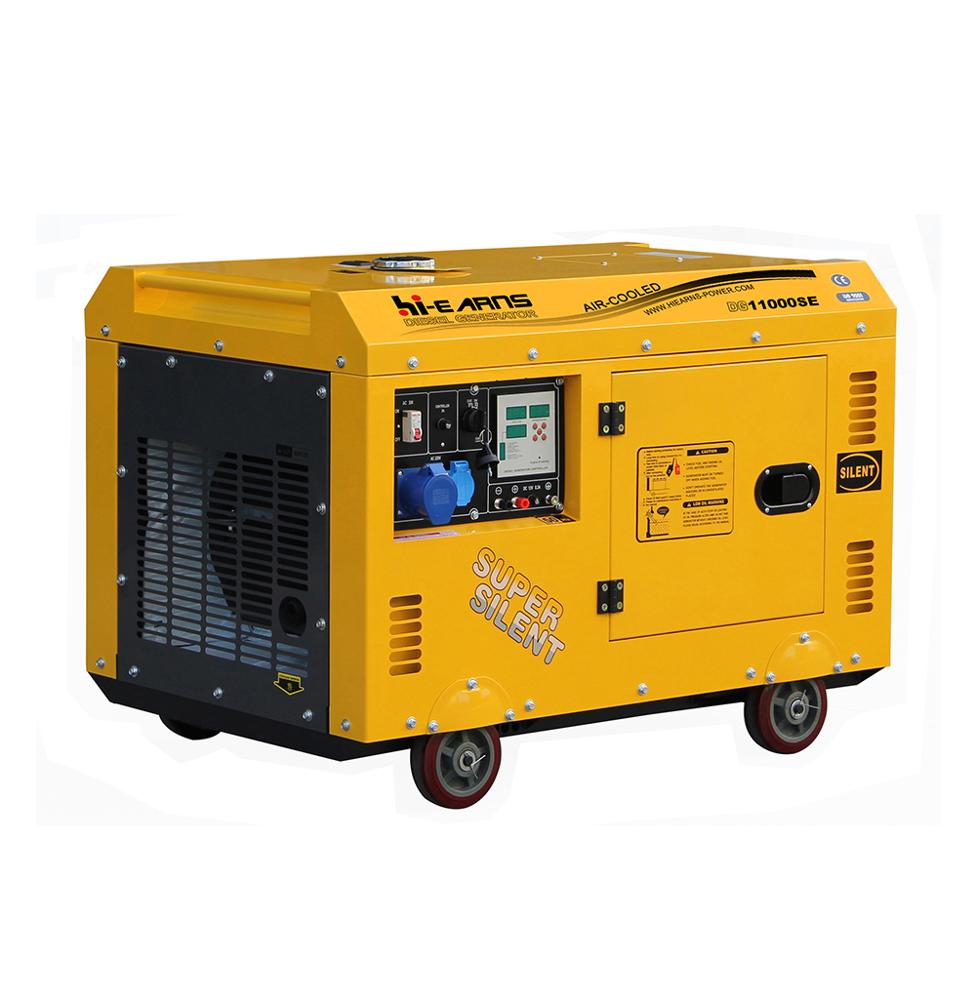

DG11000SE 8KVA electric silent air cooled diesel generator
| Model | DG11000SE | |
| Generator | Frequency(Hz) | 50 |
| Max. output(KW/KVA) | 8 | |
| Rated output(KW/KVA) | 7.5 | |
| Rated AC voltage(V) | 110,220,230,240,220/380,230/400 | |
| Power factor | 1 | |
| DC output(V/A) | 12/8.3 | |
| Phase | Single phase/Three phase | |
| Alternator type | Self-excited,2-pole, Single/ Three alternator | |
| Starting system | electric | |
| Noise level(7m)(dB) | 75 | |
| Fuel tank capacity(L) | 30 | |
| Continuous work(H) | 12 | |
| ENGINE | Engine Model | HR198FA |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98×84 | |
| Fuel Consumption rate g/kw/h | ≤230 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume(L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Package size(LxWxH)(mm) | 1130x760x860 |
| Net Weight(kgs) | 210 | |
| Gross Weight (kgs) | 220 | |
| 20FT loading pcs | 30 | |
| 40HQ loading pcs | 96 | |
