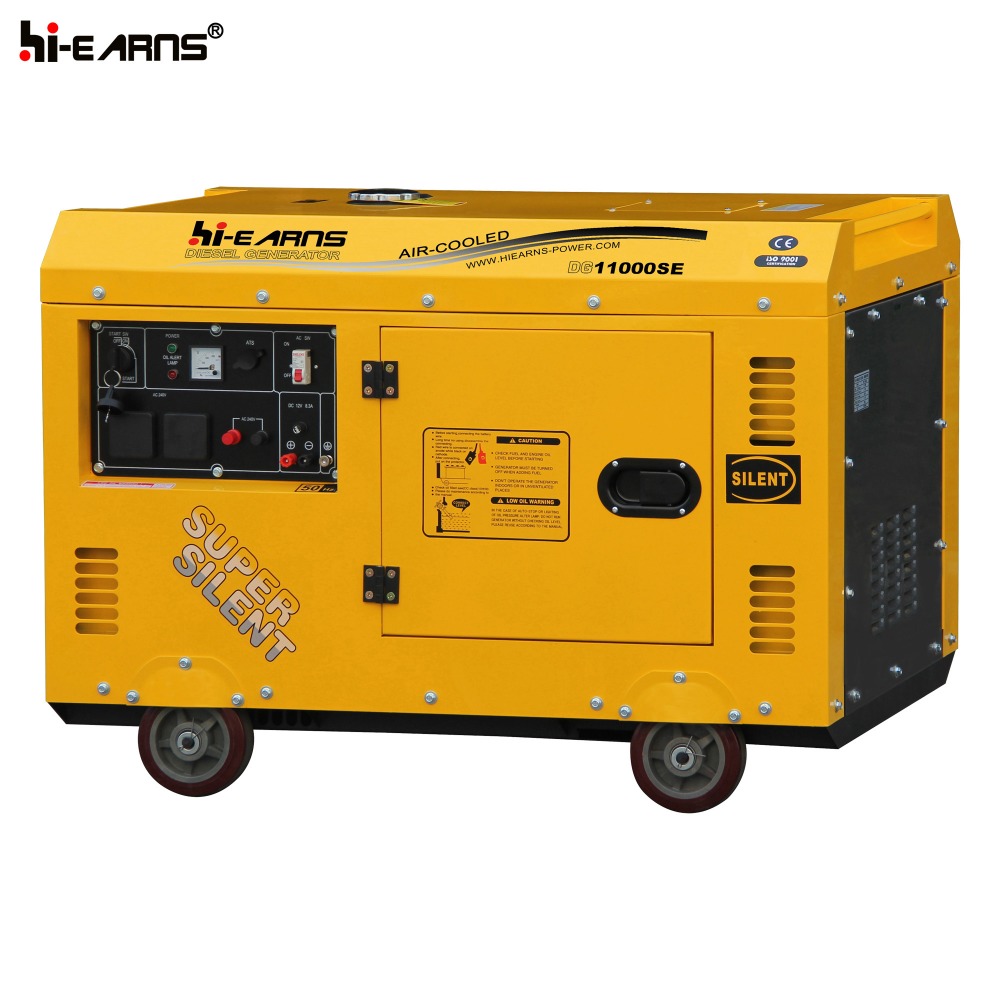

198F diesel enginr driven silent type 9KVA diesel engine generator
*16HP diesel engine HR198F~
*100% copper wire alternator~
*Big Silent canopy, portable model~
*7.5KW rated output~
*Four wheels ensure easy moving~
*Electric start with 36AH battery~
Simon Yang (Just press Chat Now!)
♦ Mobile/WhatsApp: 008613775105526
♦ E-mail: server-wm1(at)hiearns.com
♦ SKYPE: ysdsimon
♦ TradeManager: cn200048131
♦ WeChat: SimonMrYang
♦ QQ: 568238531
198F diesel enginr driven silent type 9KVA diesel engine generator
♦DG11000SE model: With 16 HP HR198F air cooled diesel engine and 100% copper wire KETE alternator ensure a 7.5KW rated output, and 8KW max. output! diesel generator
♦Electric start with 36AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have open frame model DG11000E, the noise maybe little bigger, and the price can have a discount!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
GENERATOR | Model | DG11000SE | ||
Frequency (HZ) | 50 | 60 | ||
Max. output (KW) | 8 | 8.5 | ||
Rated output (KW) | 7.5 | 8 | ||
Rated. AC voltage (V) | 120, 220, 230, 240 | |||
Power factor (cosΦ) | cosΦ=1 | |||
DC output (V) | 12V/8.3A | |||
Phase | Single phase | |||
Alternator type | self-excited, 2-pole, single phase alternator | |||
Starting system | Electric | |||
Operating noise level (at 7m) | 70~72 | |||
Fuel tank capacity (L) | 30 | |||
Continues work (H) | 12 | 11.5 | ||
ENGINE | Model | HR198F | ||
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||
Bore×stroke (mm) | 98×82 | |||
Fuel | 0# or -10# light diesel fuel | |||
Lubrication oil volume (L) | 1.65 | |||
Combustion system | Direct lnjection | |||
STANDARD FEATURES | Voltmeter | yes | ||
AC Output Socket | 2 | |||
AC circuit breaker | yes | |||
Oil warning light | yes | |||
Oil alert | yes | |||
OPTIONAL FEATURES | DC circuit breaker | optional | ||
Calculagraph | optional | |||
Big Wheel | optional | |||
Three phase voltage | optional | |||
Current meter | optional | |||
ATS | optional | |||
Remote control | optional | |||
Welding | optional | |||
DIMENSIONS | Dimension (L×W×H) (mm) | 1110×760×860 | ||
Net weight (kg) | 210 | |||
20FT/40HQ | 30 / 96 | |||
♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
