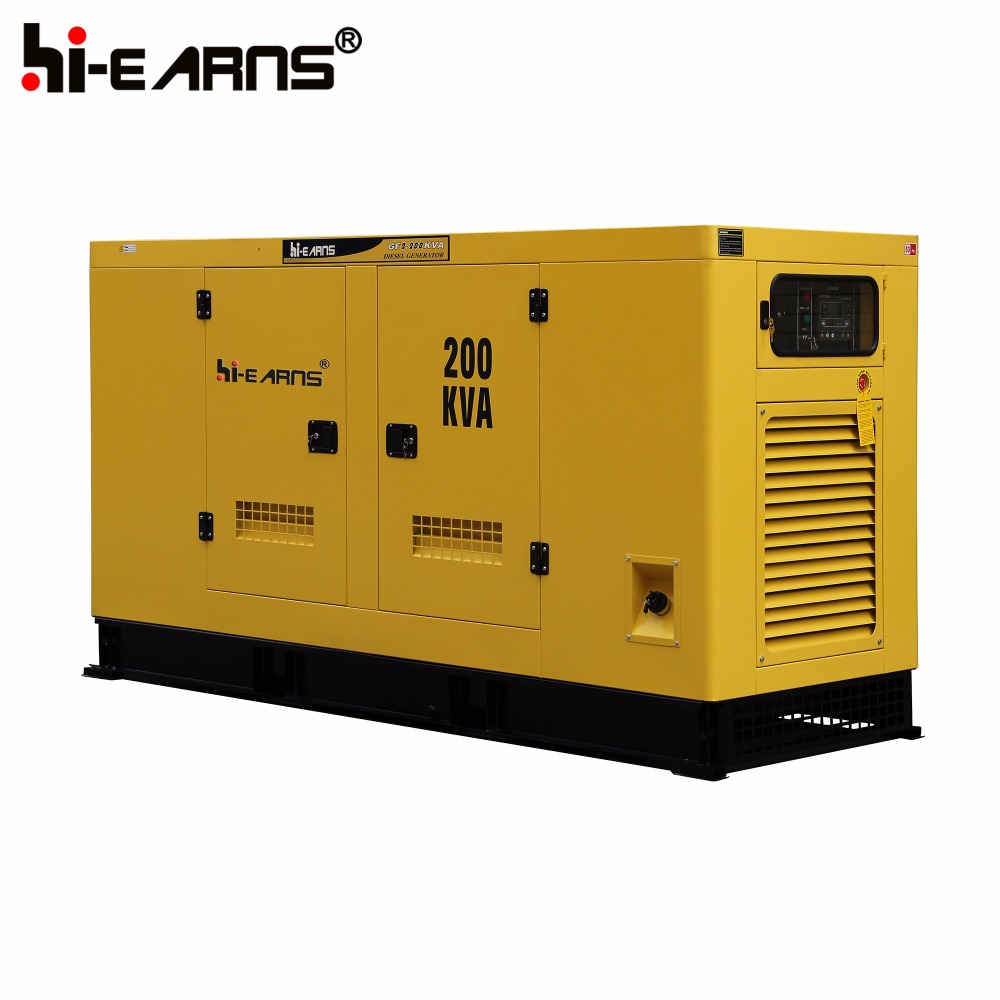

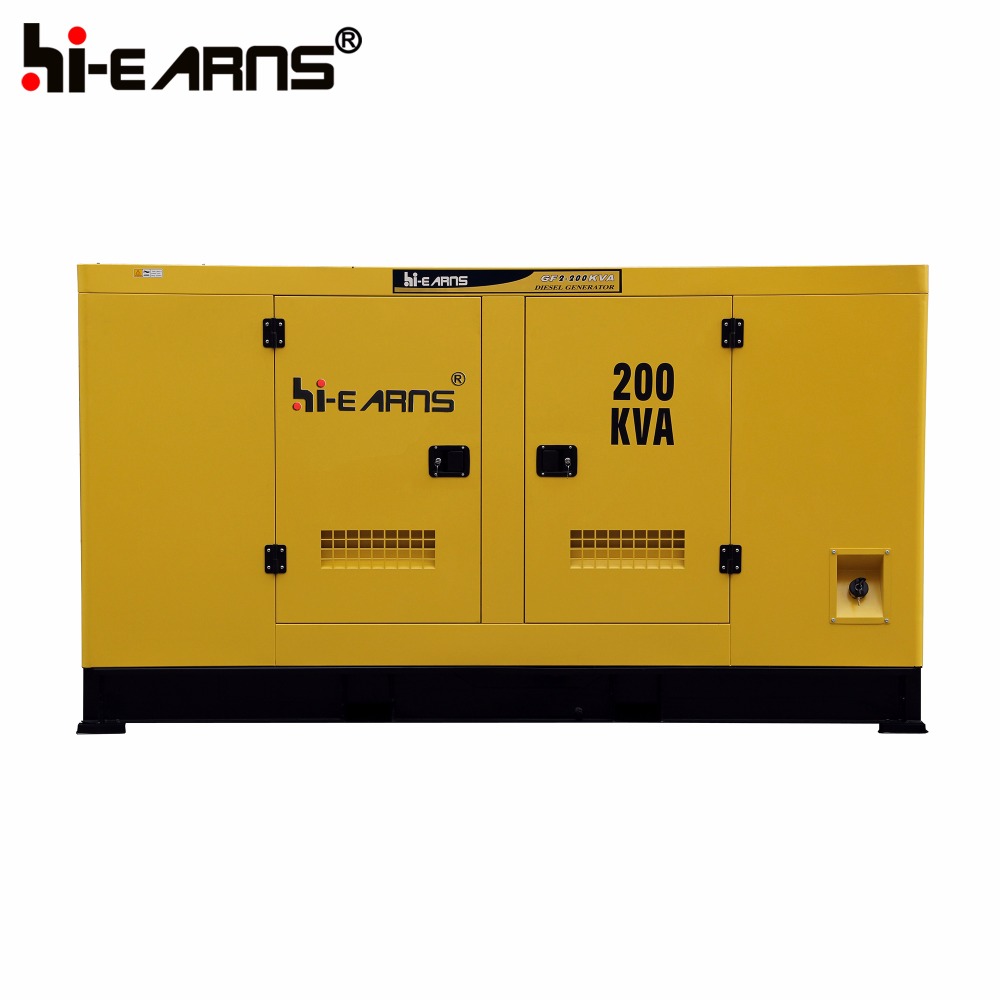

diesel power silent type yellow color generator 200KVA prices

Click on the image to view the original image

Product：	views：3diesel power silent type yellow color generator 200KVA prices
Branch：	Hi-earns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:35

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Related Products

Voltage	HZ	Phase	P.F(COS)	Standby Amps	Standby Ratings (KW/KVA)	Prime Ratings (KW/KVA)
440/254	50	3	0.8	289	176/220	160/200
415/240	50	3	0.8	306	176/220	160/200
400/230	50	3	0.8	318	176/220	160/200
380/220	50	3	0.8	334	176/220	160/200
ENGINE DATA
Manufacturer/Model:				DCEC Cummins 6CTAA8.3-G2,4-cycle
Air Intake System:				Turbo,Water/Air Cooling
Fuel System:				PB/W type fuel pump
Cylinder Arrangement:				6 in line
Displacement:				8.3L
Bore and Stroke:				114×135(mm)
Compression Ratio:				16.0:1
Rated RPM:				1500rpm
Max.Standby Power at Rated RPM:				203KW / 276HP
Governor Type:				Electronic
Alternator Data
Manufacturer:				Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol
Number of Phase:				3
Connecting Type:				3 Phase and 4 Wires,"Y" type connecting
Number of Bearing:				1
Power Factor:				0.8
Protection Grade:				IP23
Altitude:				≤1000m
Exciter Type:				Brushless,self-exciting
Insulation Class,Temperature Rise:				H/H
Telephone Influence Factor(TIF):				<50
THF:				<2%
Voltage Regulation,Steady State:				≤±1%
Alternator Capacity:				200KVA
Alternator Efficiencies:				93.30%
Air Cooling Flow:				0.514m3/s
Open Type				Soundproof Type
Overall Size:2540(mm)×980(mm)×1650(mm)				Overall Size:3590(mm)×1250(mm)×2050(mm)
Weight:2050kg				Weight:2750kg
