Overview
Quick Details
- Applicable Industries:
- Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Single Cylinder
- Cold Style:
- Air-cooled
- Start:
- recoil start
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 510*490*570mm
- Weight:
- 45kg
- Certification:
- CE ISO, CE, ISO
- Warranty:
- 1 Year, 1 year
- After-sales Service Provided:
- No overseas service provided
- type:
- generator engine
- Color:
- optional
- Starting system:
- Recoil, Electric
- Shaft types:
- spline shaft
- Enging speed:
- 3000rpm,3600rpm
- Brand:
- Hiearns
- Rated Power:
- 10hp
- Air filter:
- oil bath air filter
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 51X49X57 cm
- Single gross weight:
- 46.0 kg
- Package Type:
- CARTON BOX
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 50 >50 Est. Time(days) 10 15 To be negotiated
Related Products

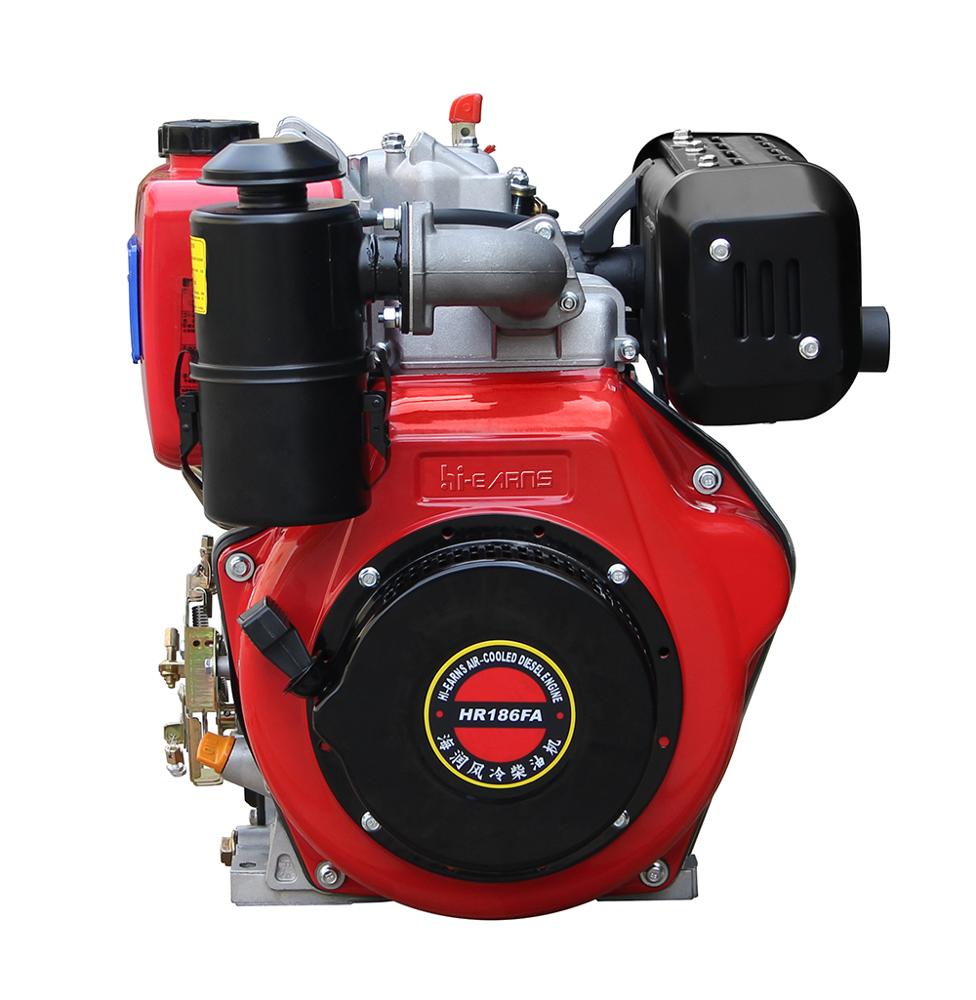

10hp small diesel marine generator engine HR186
| Model | HR170F | HR178F | HR186FA | HR188FA | ||||
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||||||
| Combustion System | Direct Injection | |||||||
| Bore× Stroke(mm) | 70× 55 | 78× 62 | 86× 72 | 88× 72 | ||||
| Displacement capacity(cc) | 211 | 296 | 411 | 438 | ||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Horse power(hp) | 4 | 6 | 10 | 12 | ||||
| Max. output(kw) | 2.8 | 3 | 4.1 | 4.4 | 6.5 | 7.1 | 7.5 | 8 |
| Rated output(kw) | 2.5 | 2.8 | 3.7 | 4 | 5.9 | 6.5 | 7 | 7.5 |
| Fuel | o#or-10#light diesel oil | |||||||
| Fuel oil tank volume(l) | 2.5 | 3.5 | 5.5 | 5.5 | ||||
| Lubricatiom oil volume(l) | 0.75 | 1.1 | 1.65 | 1.65 | ||||
| Fuel oil consumption rate(g/kw. h) | 285 | ≤ 283 | ≤ 280 | ≤ 280 | ||||
| Starting system | Recoil or Electric | |||||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||||
| Dimension(mm) | 420× 380× 470 | 480× 480× 520 | 510× 490× 570 | |||||
| Net weight(kg) | 27 | 36 | 43 | 44 | ||||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
Care & Maintenance
About Us
Exhibition
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
Company Information
Our Services
