Home > Products > Water-cooled four cylinder 25 kva diesel generator price

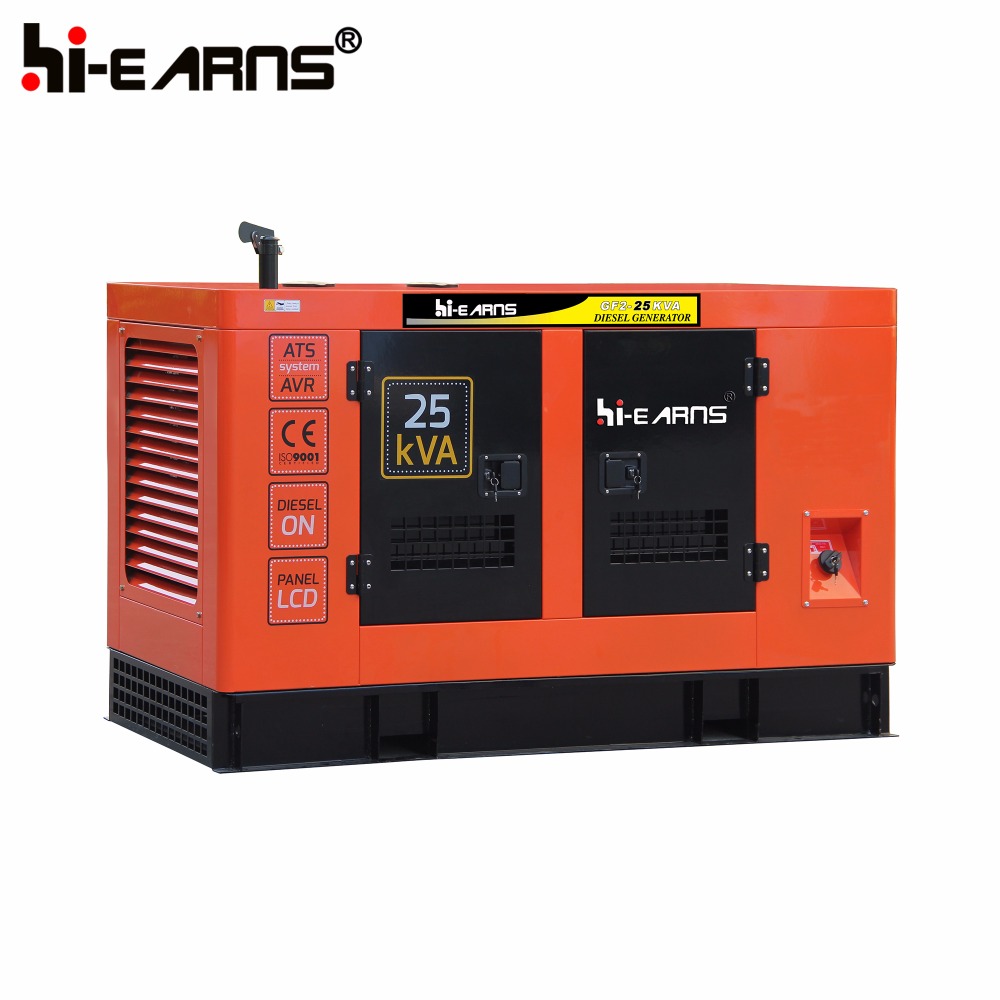

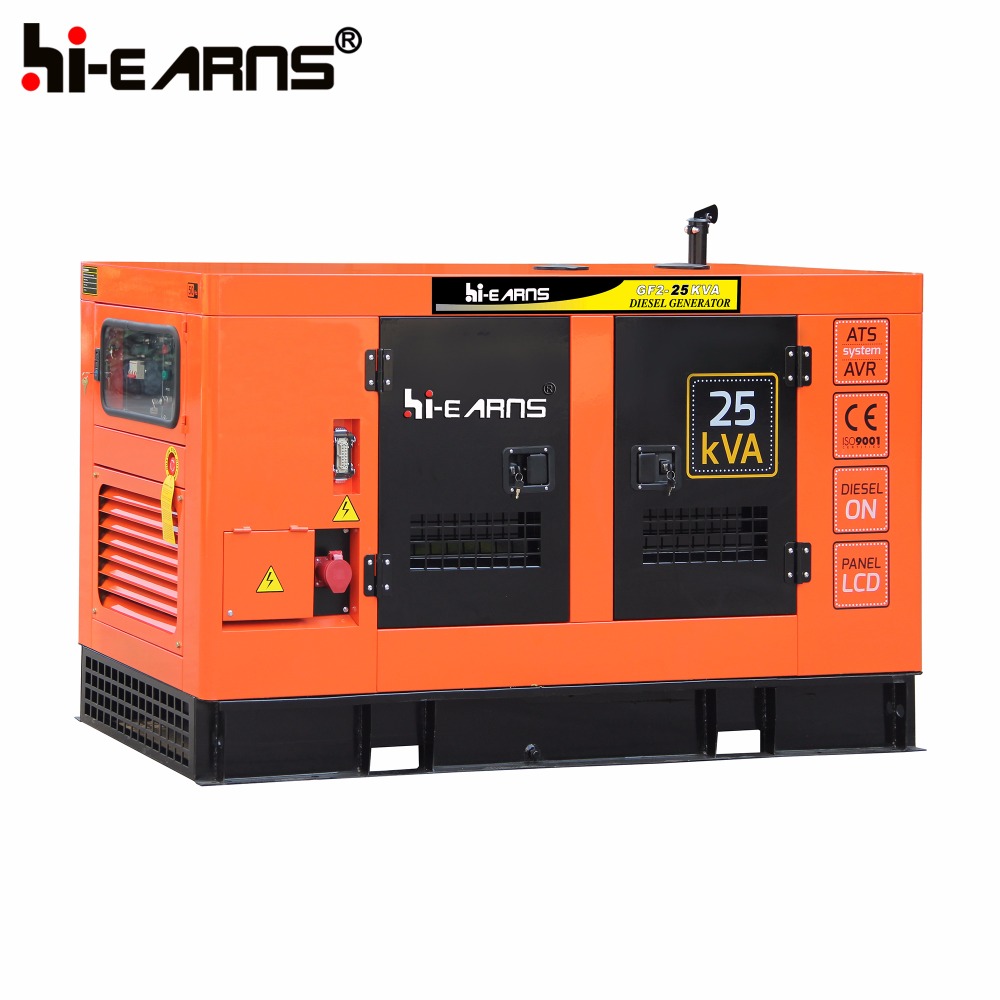

Water-cooled four cylinder 25 kva diesel generator price
Click on the image to view the original image
Product： views：5Water-cooled four cylinder 25 kva diesel generator price
Branch： Hi-earns
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns
Model Number:
GF2-25KVA
Rated Power:
20KW
Output Type:
AC Three Phase
Rated Voltage:
220V/380V
Rated Current:
53A
Speed:
1500RPM
Frequency:
50HZ
type:
portable silent generator
engine:
Cummins 4B3.9-G1
alternator:
100% copper Copy-Stamford brushless
Panel:
Common/digital/ATS
Structure:
Skylight/rings
The base:
With forklift optional
Noise:
lower
Power factor:
0.8
Phase:
Three
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Packing way:Bubble Wrap with plastic film.
2.Payment way: If less $10000, 100%T/T payment in advance.
If more $10000, 30% T/T deposit in advance, 70% T/T balance before shipment.
3.Producing day: 25days.
Port
shanghai
Lead Time:
30days after receiving the deposit

25KVA diesel generator



MODEL   GF- 25KVA
Standby Power(50HZ ) 22KW / 28KVA
Prime Power(50HZ )20KW / 25KVA
ENGINE DATA
Manufacturer/Model:DCEC Cummins 4B3.9-G1,4-cycle
Air Intake System: Air natural cooled
Fuel System:A model fuel pump
Cylinder Arrangement:4 in line
Displacement:3.9L
Bore and Stroke: 102×120(mm)
Compression Ratio:16.5:1
Rated RPM:1500rpm
Max.Standby Power at Rated RPM:            27KW / 36.7HP
Governor Type:RSV Mechanical(Std) / Electronic(Optional)
Exhaust System
Exhaust Gas Flow:4.27m3/min
Exhaust Temperature:410°C
Max Back Pressure:10kPa
Air Intake System
Max Intake Restriction: 5kPa
Buring Capacity:1.98m3/min
Intake Flow:136m3/min
Fuel System
100%(Prime Power) Load:228 g/Kw.h
75%(Prime Power) Load:229 g/Kw.h
75%(Prime Power) Load:240 g/Kw.h
Oil System
Total Oil Capacity:11L
Oil Consumption:≤4g/kwh
Engine Oil Tank Capacity:9.5L
Oil Pressure at Rated RPM:345kPa
Cooling System
Total Coolant Capacity:21L
Thermostat:82-95°C
Max Water Temperature:104°C
Open Type Soundproof Type
Overall Size:1800(mm)×750(mm)×1350(mm)   Overall Size:2200(mm)×1000(mm)×1450(mm)
Weight:876kgWeight:1300kg







IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.



Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.



Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.



Company Information

♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.
