Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE
- Rated Voltage:
- 220,230,240V
- Rated Current:
- 34A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single phase
- Engine type:
- HR198FAE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 115X76X86 cm
- Single gross weight:
- 220.0 kg
- Package Type:
- Packing method: Carton with plastic film and plywood plate
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 7 15 To be negotiated
Related Products
Product Description
1.Silent, electric, with 36AH storage battery;
2.Low fuel consumption;
3.With four solid wheel;
4.Good quality and after sales service;
5.CE,GS,EPA,ISO9001.

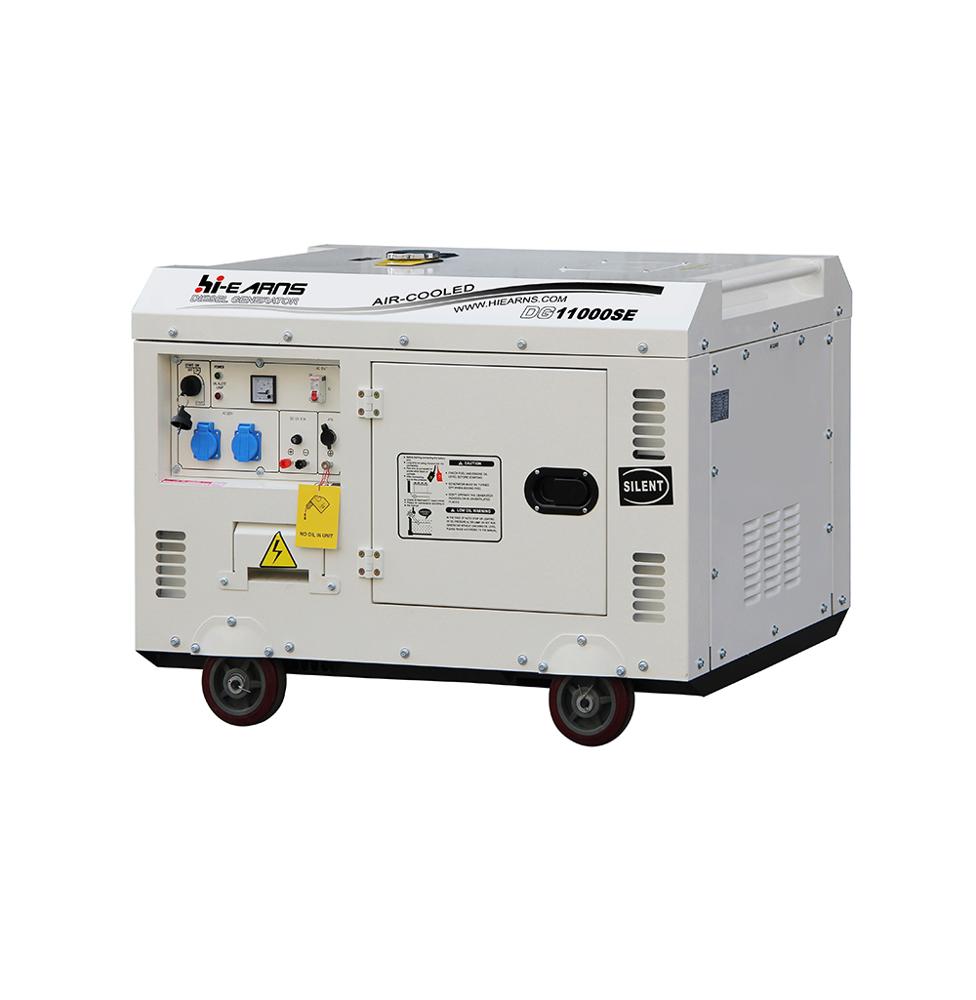

DG11000SE 10KVA electric silent air cooled diesel generator
| Model | DG6500SE | DG7500SE | DG8500SE | DG11000SE | |
| GENERATOR | Frequency (HZ) | 50 | |||
| Max.output (KVA) | 5.5 | 6 | 7 | 8 | |
| Rated output(KVA) | 5 | 5.5 | 6.5 | 7.5 | |
| Rated AC Voltage(V) | 220,230,220/380,230/400 | ||||
| Power Factor | 1 | ||||
| DC output (V) | 12V/8.3A | ||||
| Phase | Single Phase or three phase | ||||
| Starting System | electric | ||||

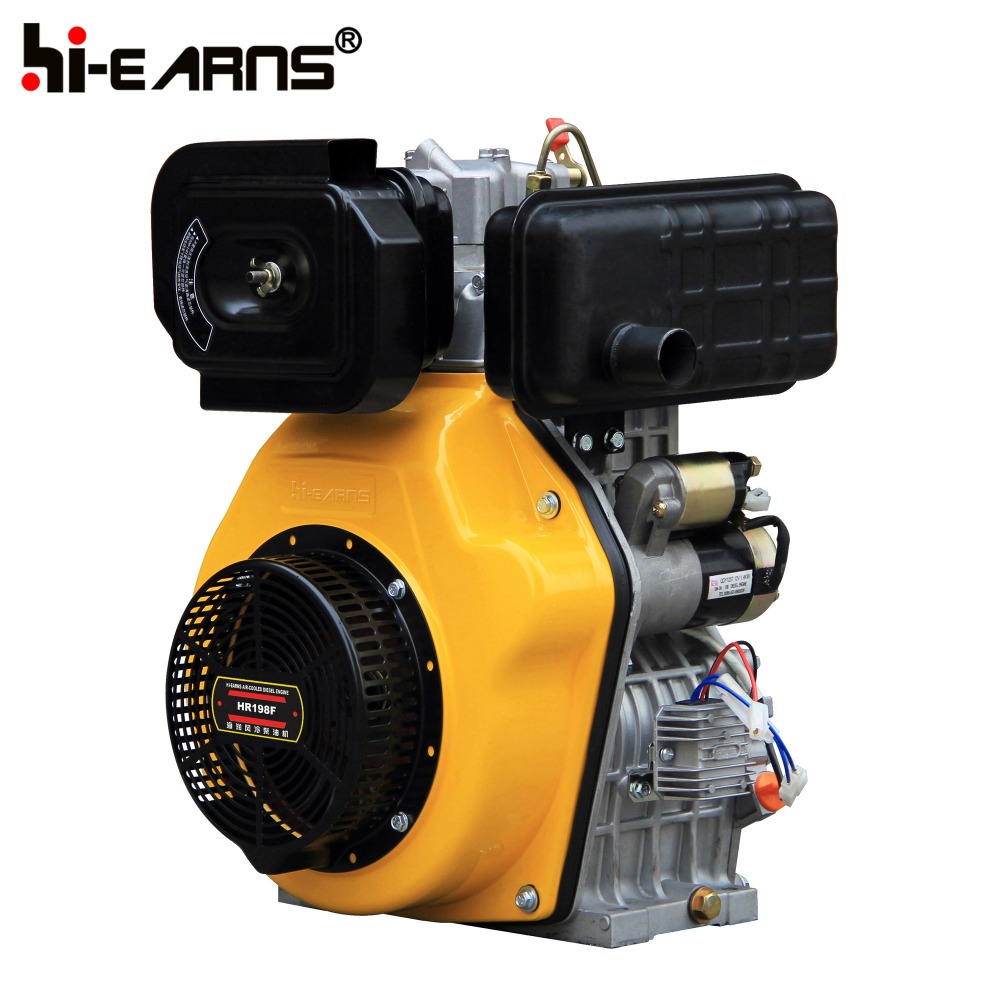

| ENGINE | Engine Model | HR186FA | HR188FA | HR192FD | HR198FA |
| Engine Type | single-cylinder, vertical,4-stroke air cooled diesel engine | ||||
| DIMENSIONS | Dimention(LxWxH)(cm) | 94*56*74 | 94*56*74 | 94*56*74 | 113*76*86 |
| Net weight(Kgs) | 150 | 170 | 175 | 210 | |
| 20FT loading pcs | 72 | 30 | |||
| 40HQ loading pcs | 144 | 96 | |||
