Overview
Quick Details
- Applicable Industries:
- Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Single Cylinder
- Cold Style:
- Air-cooled
- Start:
- Electric Start
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 510*490*570mm
- Weight:
- 50kg
- Certification:
- CE, ISO
- Warranty:
- 1 year, 1 year
- After-sales Service Provided:
- No overseas service provided
- type:
- diesel engine manufacturer
- engine speed:
- 3000/3600rpm
- starting system:
- recoil, electric
- shaft type:
- optional
- brand:
- Hiearns
- color:
- optional
- air filter:
- oil bath air filter
- rated power:
- 10HP
- Certificate:
- CE, ISO
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 51X49X57 cm
- Single gross weight:
- 55.0 kg
- Package Type:
- carton box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20 21 - 50 >50 Est. Time(days) 10 15 To be negotiated
Related Products

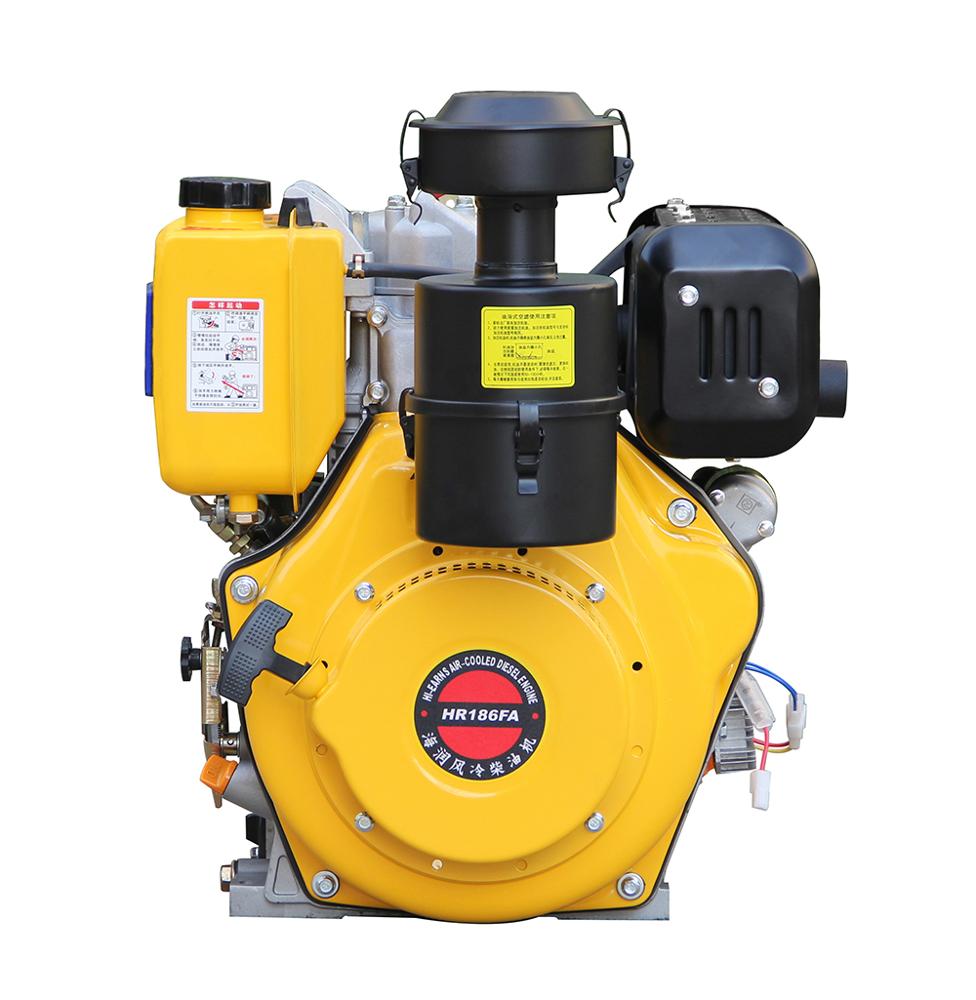

Jiangsu changzhou 8HP 9HP 10HP diesel engine manufacturer HR186FAE
| Model | HR170F | HR178F | HR186FA | HR186FS | HR188FA | |||||
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||||||||
| Combustion System | Direct Injection | |||||||||
| Bore× Stroke(mm) | 70× 55 | 78× 62 | 86× 72 | 86× 70 | 88× 72 | |||||
| Displacement capacity(cc) | 211 | 296 | 411 | 406 | 438 | |||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 1500 | 1800 | 3000 | 3600 |
| Horse power(hp) | 4 | 6 | 10 | 9 | 12 | |||||
| Max. output(kw) | 2.8 | 3 | 4.1 | 4.4 | 6.5 | 7.1 | 6 | 6.5 | 7.5 | 8 |
| Rated output(kw) | 2.5 | 2.8 | 3.7 | 4 | 5.9 | 6.5 | 5.7 | 6.3 | 7 | 7.5 |
| Fuel | o#or-10#light diesel oil | |||||||||
| Fuel oil tank volume(l) | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | |||||
| Lubricatiom oil volume(l) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | |||||
| Fuel oil consumption rate(g/kw. h) | 285 | ≤ 283 | ≤ 280 | ≤ 278 | ≤ 280 | |||||
| Starting system | Recoil or Electric | |||||||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||||||
| Dimension(mm) | 420× 380× 470 | 480× 480× 520 | 510× 490× 570 | |||||||
| Net weight(kg) | 27 | 36 | 43 | 44 | 44 | |||||
Product Description
Field of Application
♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
