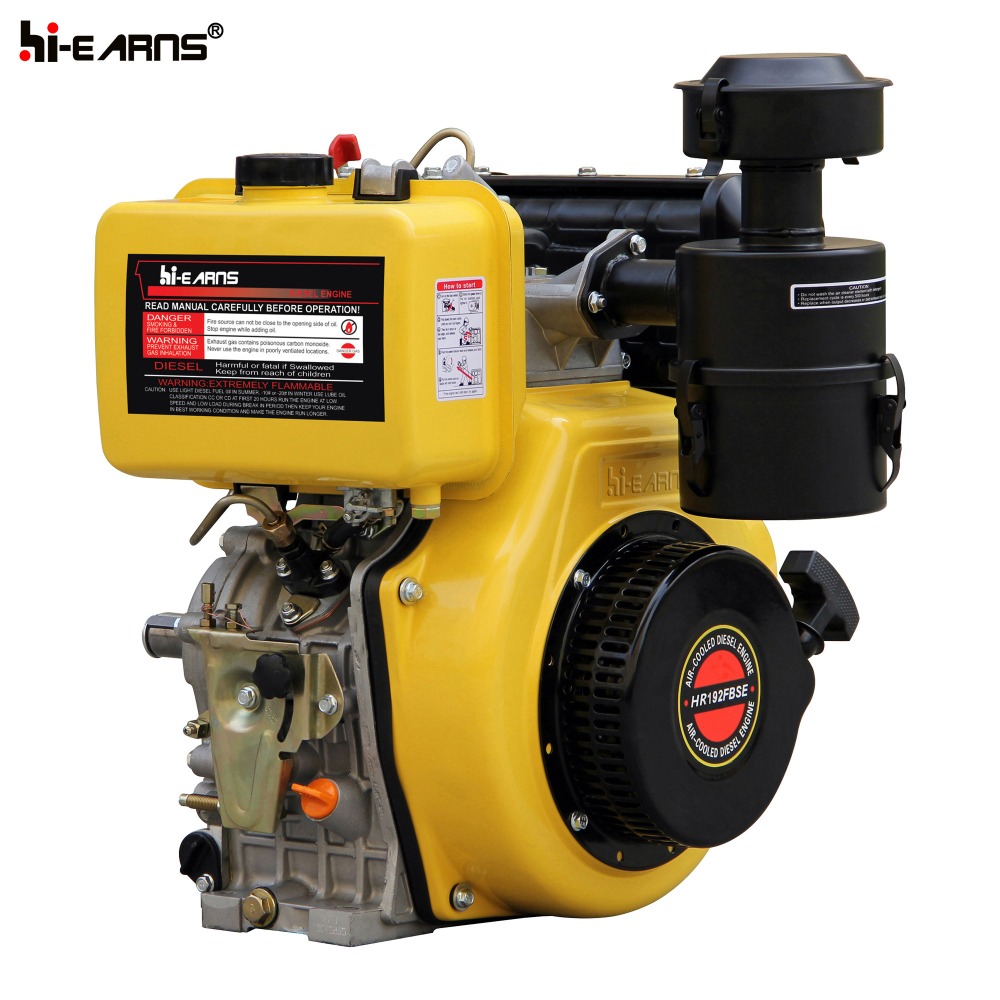

14HP 1800RPM diesel engine 192FBSE

Click on the image to view the original image

Product：	views：414HP 1800RPM diesel engine 192FBSE
Branch：	Hi-earns/OEM
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:35

Product Details

Overview

Quick Details

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining

Condition:: New

Stroke:: 4 Stroke

Cylinder:: Single Cylinder

Cold Style:: Air-cooled

Start:: recoil & Electric start

Place of Origin:: China

Brand Name:: Hi-earns/OEM

Dimension(L*W*H):: 520*520*565mm

Weight:: 50KG

Certification:: CE, GS, ROHS, ISO

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

color:: optional

Engine power:: 14HP diesel engine

Start system:: Recoil or electric start

Speed:: 1500/1800 RPM

Output type:: Keyway, spline, camshaft optional

Displacement:: 498cc

BORE*STROKE:: 92x75

Color:: Optional

Product name:: diesel engine 192FBSE

Supply Ability

Supply Ability:: 300 Piece/Pieces per Day

Packaging & Delivery

Packaging Details: carton packing

Port: shanghai

Lead Time:

Quantity(Sets)	1 - 5	6 - 100	>100
Est. Time(days)	7	15	To be negotiated

Related Products

14HP 1800RPM diesel engine 192FBSE

HR192FBSE model: 14HP rated output, Air-cooled 4-stroke small diesel engine.

Keyway shaft, spline shaft, camshaft and so on output type are optional.

Recoil or Electric start also optional ensure easy starting.

Model	HR192FB
Bore×stroke(mm)	92×75
Displacement(cc)	498
Engine speed(rpm)	1500	1800
Max.output(kw)	8.8	9.3
Continuous output(kw )	8.0	8.5
Power output	Crankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting system	Recoil or electric
Fuel tank capacity(L)	5.5
Rube oil capacity(L)	1.65
Dimension(mm)	417×470×494
Net weight(kg)	49/52

Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer
