- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-20KW/25KVA
- Rated Voltage:
- 220/380V,230/400,240/415V
- Rated Current:
- 38A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Digital panel/ATS
- Certificate:
- CE/ISO9001
- Alternator:
- Optional
- Design:
- New
- Noise:
- 75-80dB
- Power factor:
- 0.8
- Phase:
- Three
- Engine type:
- K4100D
- Supply Ability:
- 20 Piece/Pieces per Day
- Packaging Details
- 1.PACKAGE METHOD:
Wooden with plastic films or bubble wrap with plastic film and wooden plate.
2.DELIVERY TIME:25days.
3.WARRANTY:One year.
4.20FT can load 12pcs, 40HQ can load 26pcs.
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated

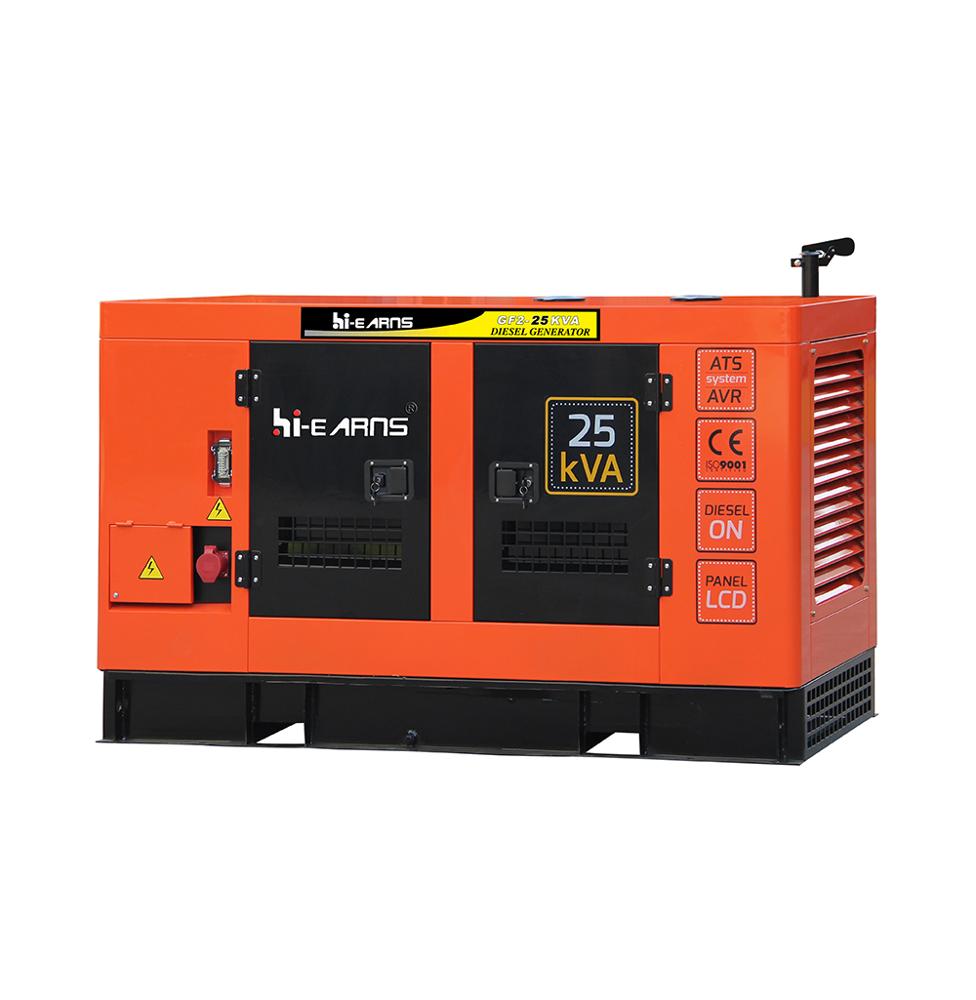

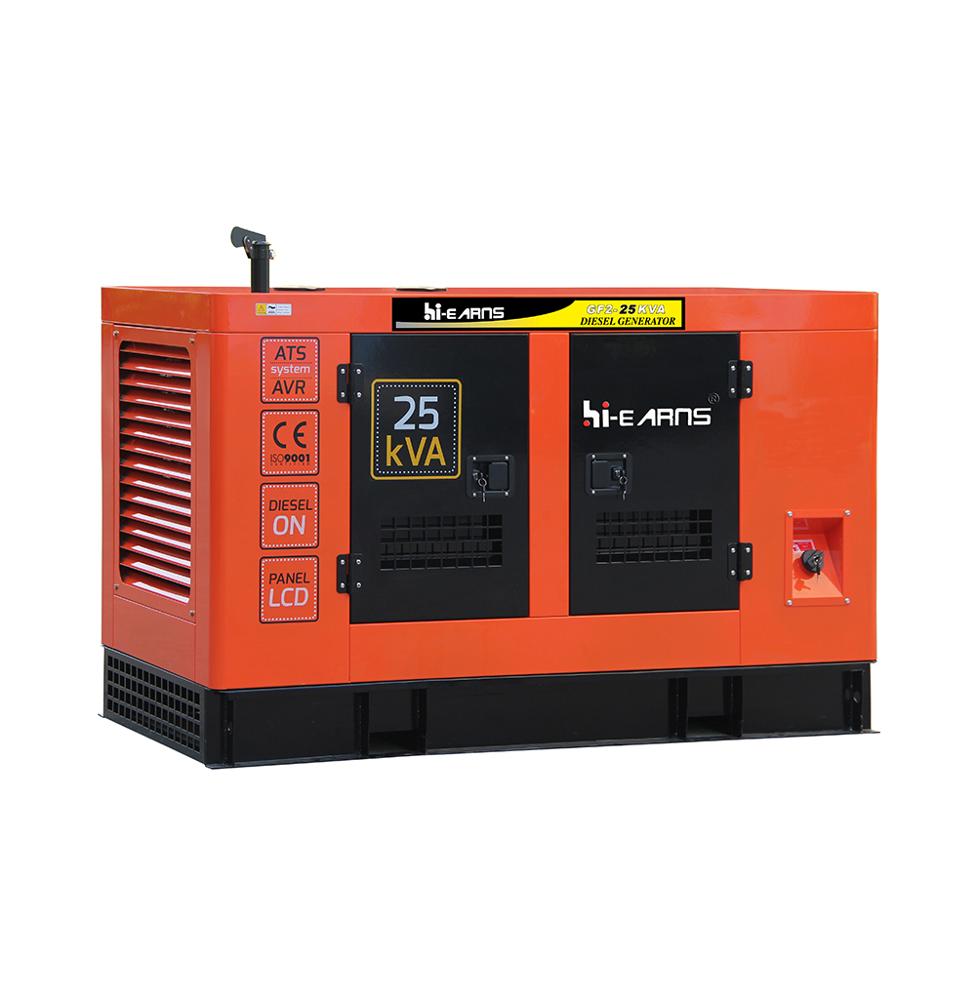

GF2-20KW/25KVA silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254/440 | 50 | 3 | 0.8 | 28 | 22/28 | 20/25 |
| 240/415 | 50 | 3 | 0.8 | 38 | 22/28 | 20/25 |
| 230/400 | 50 | 3 | 0.8 | 40 | 22/28 | 20/25 |
| 220/380 | 50 | 3 | 0.8 | 42 | 22/28 | 20/25 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Weifang Huadong Engine K4100D. Four stroke,Water-cooled,Direct line,Turbo type | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤258 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 95×115 | |||||
| Displacement(L) | 3.26 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 6.5L | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 0.8 | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.6(m)×0.73(m)×1.06(m) | Overall Size:2.1(m)×0.85(m)×1.1(m) | |||||
| Weight:700kg | Weight:770kg | |||||
| DIGITAL PANEL | ||||||
| ||||||
| ATS+DIGITAL PANEL | ||||||
 | ||||||
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
Our company is located at Changzhou of Jiangsu Province and established in 2005 with 25 million RMB registered capital and covers an area of seven acres. Our monthly capacity is more than 6000 sets, and our products are best-selling at home and abroad for many years. With no doubt, Hi-earns Company is one of the most influential manufactures in the field of electrical generators in China.
Our business specializes in water-cooled diesel-powered generator sets, air-cooled diesel-powered generator sets, gasoline-powered generator sets, water pumps, minor agriculture machinery and road machinery equipment. Our company has independently developed 198FA, which belongs to Air-cooled Diesel Engine with its proprietary intellectual property and manufacturing technology.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability
is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer
develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory and our products are 100% ex- factory
pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE and ISO
6.Our logo or OEM
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
Warranty
Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.
