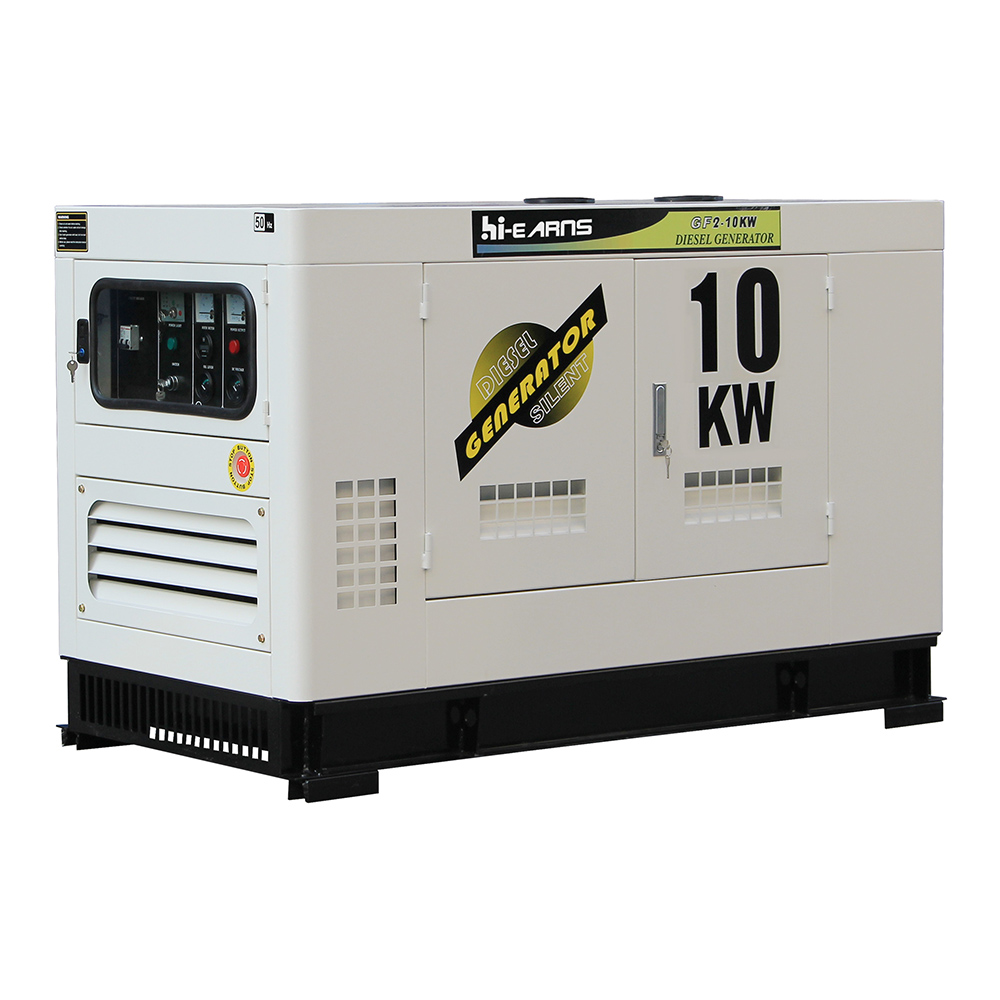

GF2-10KW super silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | Power factor | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 254 | 50 | 1 | 1 | 43.3 | 10/12 | 11/13 |
| 240 | 50 | 1 | 1 | 45.8 | 10/12 | 11/13 |
| 230 | 50 | 1 | 1 | 47.8 | 10/12 | 11/13 |
| 220 | 50 | 1 | 1 | 50 | 10/12 | 11/13 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Quanchai Engine QC480D. Four stroke,Water-cooled, Direct line | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption(≤g/kw.h) | ≤249 | |||||
| Cylinder Number | 4 | |||||
| Bore×Stroke (mm) | 80×90 | |||||
| Displacement(L) | 1.809 | |||||
| Start Method | Electric Start | |||||
| Rated Speed Regulation(g/kW·h) | ≤5 | |||||
| Combustion Chamber Type | Direct Injection | |||||
| Add Oil Capacity | 4L | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 1 | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| Protection Grade | IP23 | |||||
| Exciter Type | Brushless,self-exciting | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Intake Type | Natually-Aspirated | |||||
| Rated Speed Regulation | ≤±1% | |||||
| Phase | 1 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.40(m)×0.55(m)×1.00(m) | Overall Size:1.65(m)×0.85(m)×1.1(m) | |||||
| Weight:570kg | Weight:620kg | |||||
