Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE3
- Rated Voltage:
- 220/380,230/400,240/415V
- Rated Current:
- 11A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- Three
- Engine type:
- HR198FAE
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:115X76X86cm
Delivery time: 20 days
One 20FT can load 30 pcs.
One 40HQ can load 96pcs.
- Port
- Shanghai or other port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 7 15 To be negotiated
Related Products
Product Description
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four solid wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

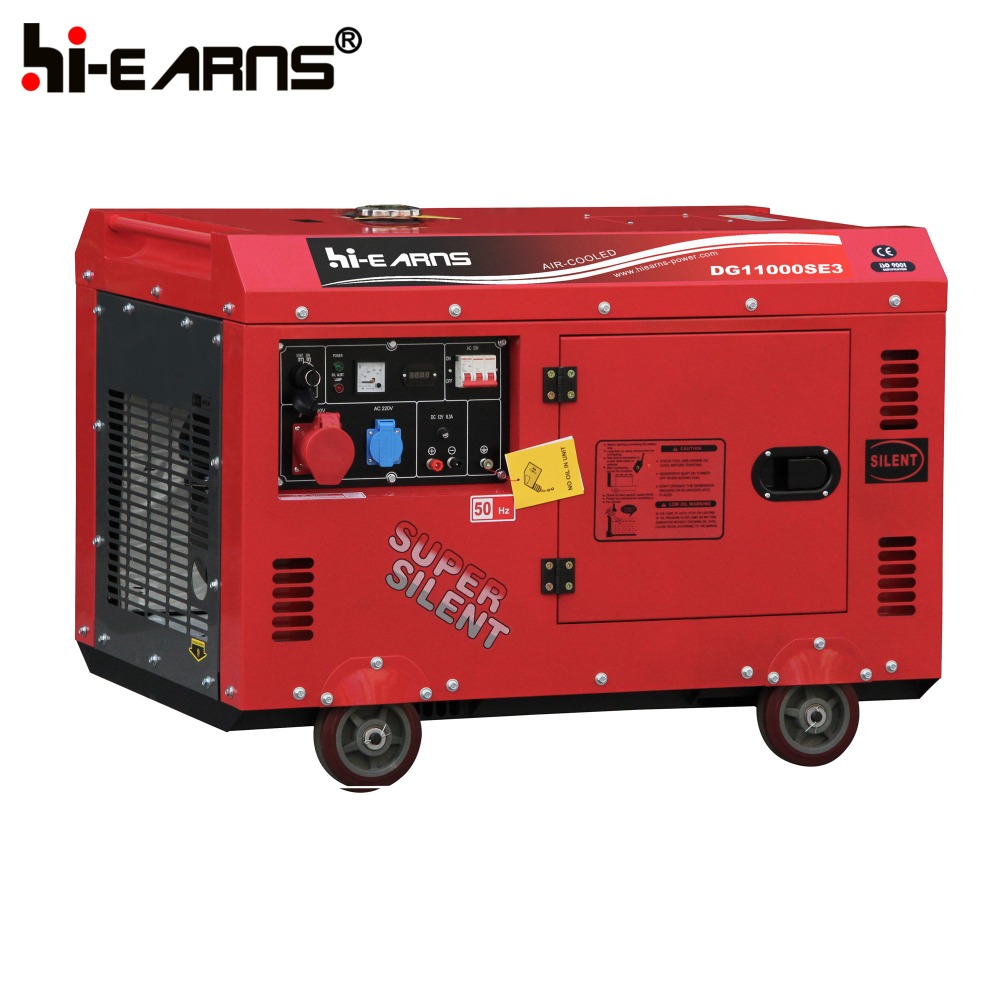

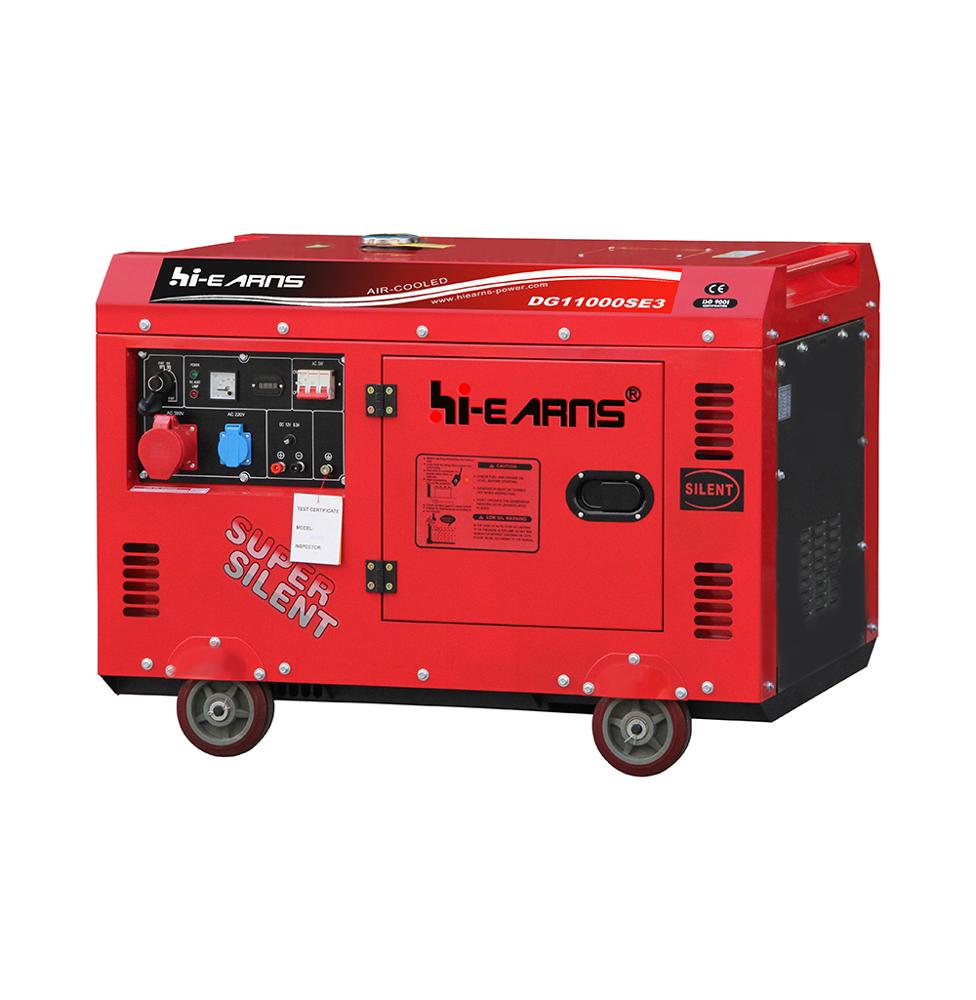

DG11000SE3 10KVA electric silent air-cooled diesel generator
| Mode | DG11000SE | DG11000SE3 | |
| GENERATOR | Frequency (HZ) | 50 | 50 |
| Max.output (KW) | 8 | 8 | |
| Rated output(KW) | 7.5 | 7.5 | |
| Rated AC Voltage(V) | 110/220/230/240 | 220/380,230/400,240/415 | |
| Power Factor | 1 | 0.8 | |
| DC output (V) | 12/8.3 | 12/8.3 | |
| Phase | Single | Three | |
| Alternator Type | Self-excited,2-pole, Single alternator | Self-excited,2-pole, Three alternator | |
| Starting System | electric | electric | |
| Noise Level (dB/7m) | 70 | 70 | |
| Fuel Tank Capacity (L) | 30 | 30 | |
| Continuous Running Time (hr) | 12 | 12 | |
| ENGINE | Engine Model | HR198FA | HR198FA |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke | 98X84 | 98X84 | |
| Fuel Consumption rate g/kw/h | 230 | 230 | |
| Fuel | 0# or -10# light diesel oil | 0# or -10# light diesel oil | |
| Lubrication Oil Volume (L) | 1.65 | 1.65 | |
| Combustion System | Direct Injection | Direct Injection | |
| STANDARD FEATURES | Voltmeter | YES | YES |
| AC Output Socket | 2 | 2 | |
| AC Circuit Breaker | YES | YES | |
| Oil warning Light | YES | YES | |
| Oil Alert | YES | YES | |
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL | OPTIONAL |
| Calculagraph | OPTIONAL | OPTIONAL | |
| Big wheel | OPTIONAL | OPTIONAL | |
| Three phase voltage | NO | YES | |
| Current meter | OPTIONAL | OPTIONAL | |
| ATS | OPTIONAL | OPTIONAL | |
| Remote control | OPTIONAL | OPTIONAL | |
| Welding | NO | NO | |
| DIMENSIONS | Package size(m) | 1.15x0.68x0.86 | 1.15x0.68x0.86 |
| Net Weight(kgs) | 210 | 210 | |
| Gross Weight (kgs) | 230 | 230 | |
| 20FT loading pcs | 30 | 30 | |
