Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE3
- Rated Voltage:
- 220/380,230/400,240/415V
- Rated Current:
- 11A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- Three
- Engine type:
- HR198FAE
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 113X76X86 cm
- Single gross weight:
- 220.0 kg
- Package Type:
- Carton with plastic film
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 10 20 To be negotiated
Related Products
| Model | DG11000SE | ||
| GENERATOR | Frequency (HZ) | 50 | 60 |
| Max.output (KW) | 8 | ||
| Rated output (KW) | 7.5 | ||
| Rated AC voltage (V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
| Power factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | Self-excited, 2-pole alternator | ||
| Starting system | Electric | ||
| Noise level (Dba/7m) | 70-75 | ||
| Fuel tank capacity (L) | 27 | ||
| Continuous running time (hr) | 11 | ||

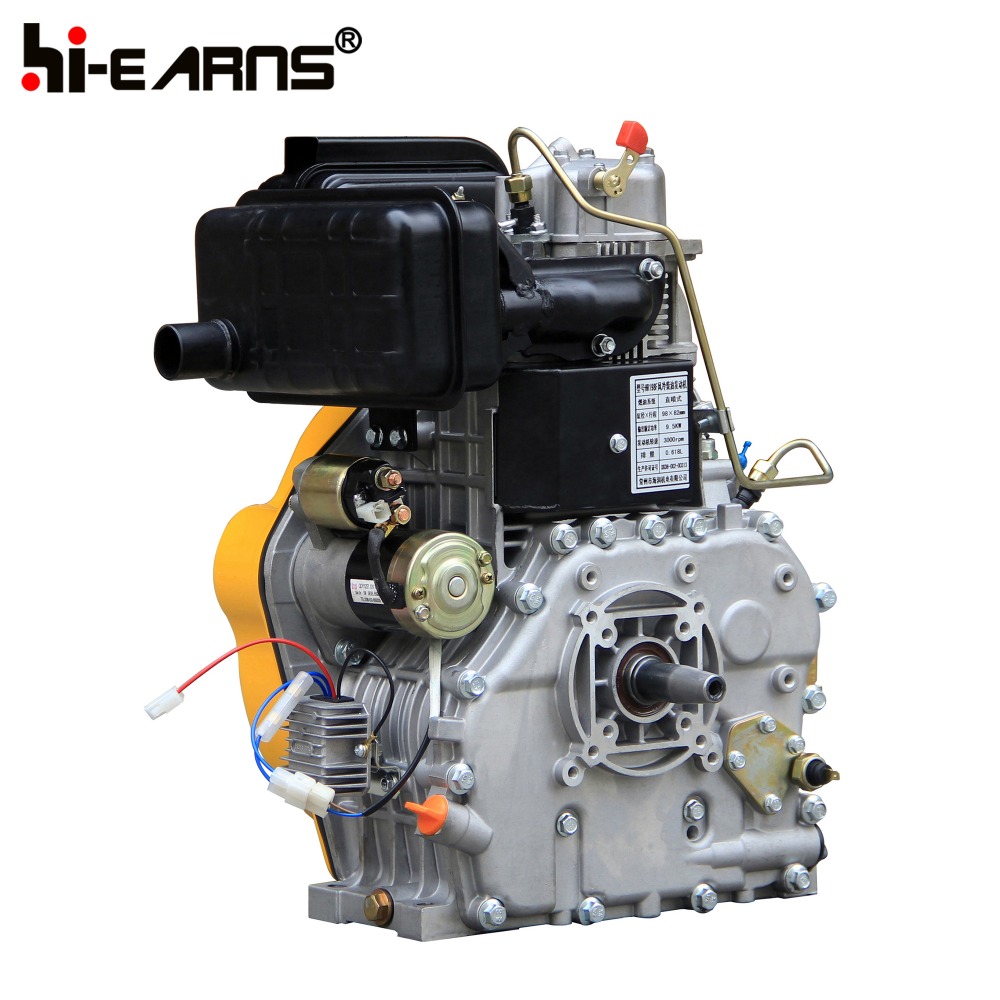

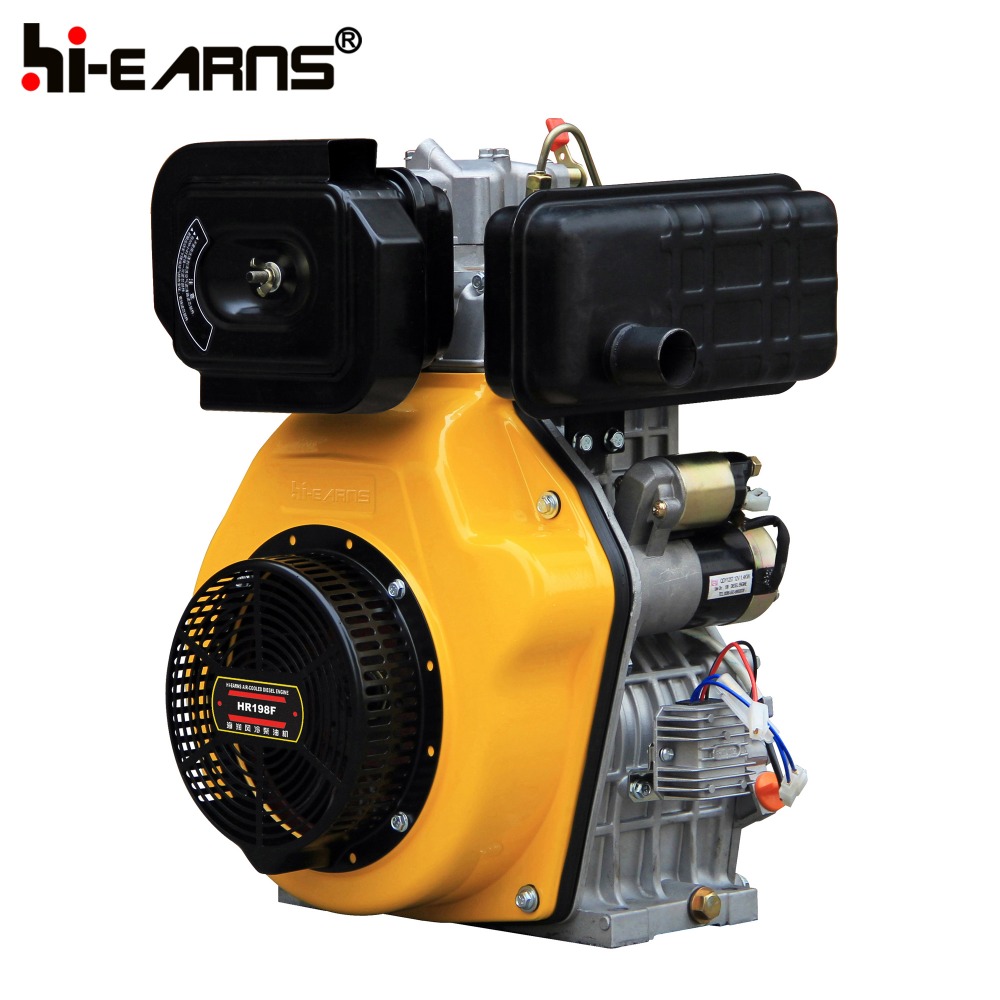

| ENGINE | Engine model | HR198FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore×Stroke (mm) | 98×84 | ||
| Fuel consumption rate (g/kw.h) | ≤230 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication oil volume (L) | 1.65 | ||
| Combustion system | Direct Injection | ||
STANDARD FEATURES | Voltmeter | YES | |
| AC output socket | 2 | ||
| AC circuit breaker | YES | ||
| Oil warning light | YES | ||
| Oil alert | YES | ||
OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| DIMENSIONS | Packing dimention (LxWxH) (cm) | 108×75×88.5 | |
| Gross weight (kgs) | 254 | ||
| 20FT loading pcs | 30 | ||
| 40HQ loading pcs | 96 | ||
