- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6000E
- Rated Voltage:
- 220,230,220/380,230/400
- Rated Current:
- 25A
- Speed:
- 3000/3600rpm
- Frequency:
- 50HZ/60HZ
- diesel generator:
- portable diesel generator
- color:
- optional
- frame:
- Open frame type
- Output power:
- 5KW
- Certificate:
- CE/ISO9001
- Engine:
- 186FA
- Alternator:
- 100% Copper
- Warranty:
- 1year
- Control panel:
- Easy operation
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 76X53X64 cm
- Single gross weight:
- 110.0 kg
- Package Type:
- Carton packing with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 100 >100 Est. Time(days) 10 20 To be negotiated

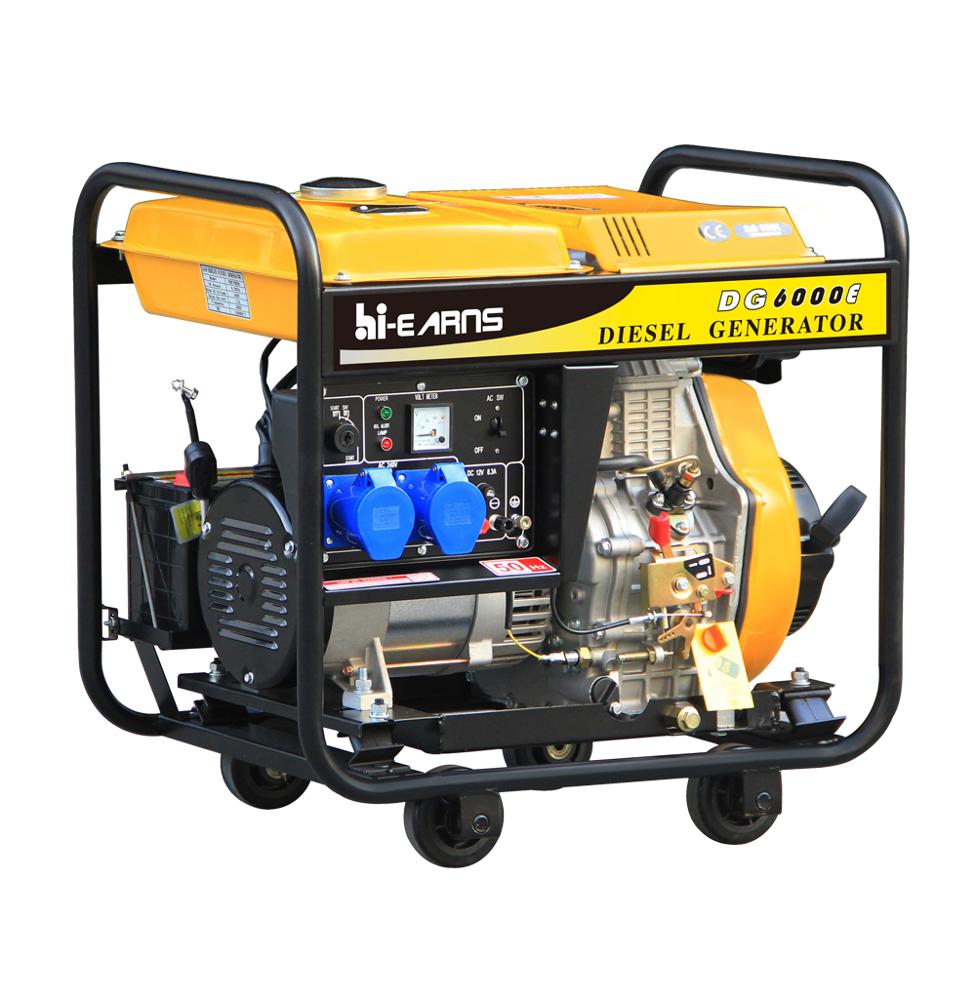

5KW portable diesel generator with wheels 5KW generator
♦DG6000E model: With 10 HP HR186FA air cooled diesel engine and 100% copper wire KETE alternator ensure a 4.6KW rated output, and 5KW max. output! diesel generator
♦Electric start with 30AH battery; open frame model, portable model with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have silent model DG6500SE, the noise can control well!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap. diesel generator
| GENERATOR | Model | DG6000E | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 6.5 | 6 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 755× 520×630 | |
| Net weight(kg) | 104 | ||
| 20FT | 102 | ||
