Home > Products > Hot sale air-cooled small diesel engine 14HP 192FB tractor engine

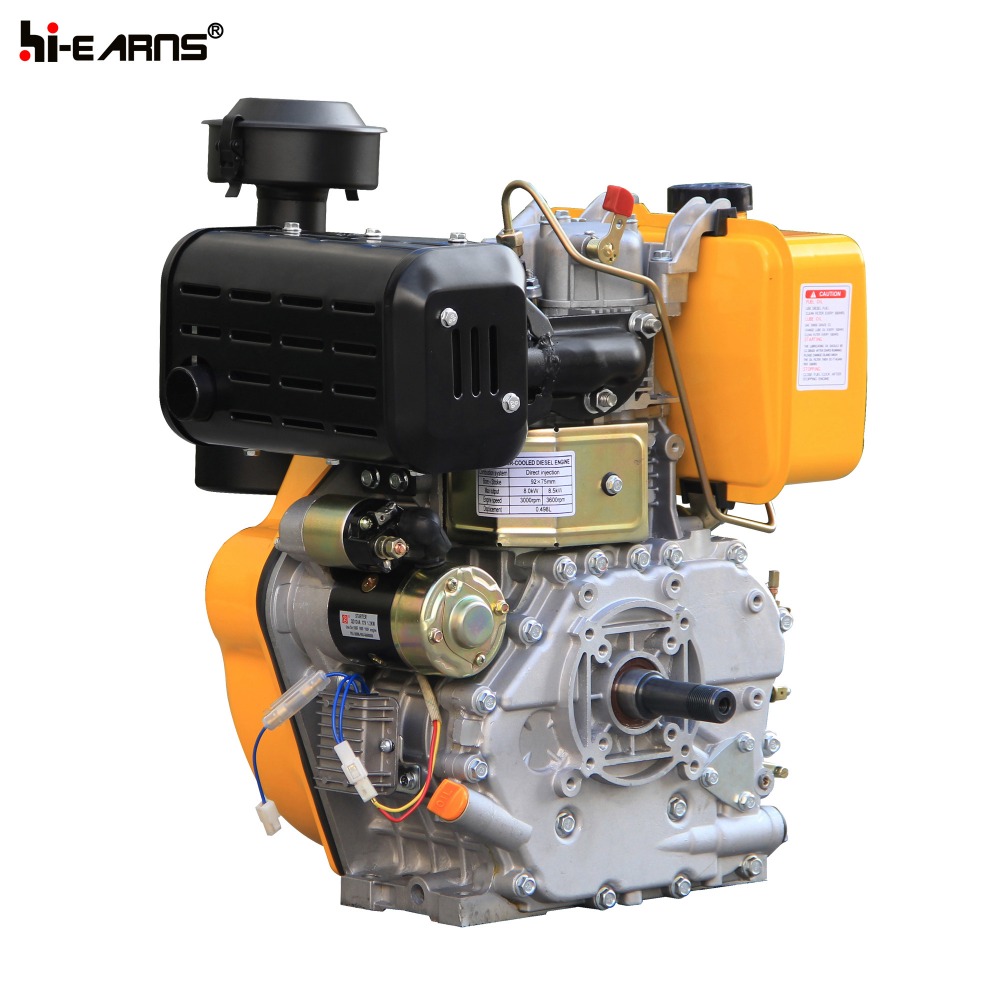

Hot sale air-cooled small diesel engine 14HP 192FB tractor engine
Click on the image to view the original image
Product： views：4Hot sale air-cooled small diesel engine 14HP 192FB tractor engine
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
Condition:
New
Stroke:
4 Stroke
Cylinder:
Single Cylinder
Cold Style:
Air-cooled
Start:
recoil & Electric start
Place of Origin:
Jiangsu, China
Brand Name:
Hi-earns/OEM
Dimension(L*W*H):
520*520*565mm
Weight:
50KG
Certification:
CE, GS, ROHS, ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
color:
optional
Engine power:
14HP diesel engine
Start system:
Recoil or electric start
Speed:
3000/3600 RPM
Output type:
Keyway, spline, camshaft optional
Displacement:
498cc
BORE*STROKE:
92x75
Color:
Optional
Product name:
192FBE air-cooled diesel engine

Packaging & Delivery

Selling Units:
Single item
Single package size:
42X47X50 cm
Single gross weight:
52.0 kg
Package Type:
Carton packing
Lead Time:
Quantity(Set)1 - 56 - 100>100
Est. Time(days)712To be negotiated
Video Description



Related Products

Hot sale air-cooled small diesel engine 14HP 192FC tractor engine



HR192FC model: 14HP rated output, Air-cooled 4-stroke small diesel engine.



Keyway shaft, spline shaft, camshaft and so on output type are optional.



Recoil or Electric start also optional ensure easy starting.



ModelHR192FD
Bore×stroke(mm)92×75
Displacement(cc)498
Engine speed(rpm)30003600
Max.output(kw)8.89.3
Continuous output(kw )      8.08.5
Power outputCrankshaft or camshaft(Camshaft PTO rpm is 1/2)
Starting systemRecoil or electric
Fuel tank capacity(L)5.5
Rube oil capacity(L)1.65
Dimension(mm)417×470×494
Net weight(kg)49/52
Product Description

Field of Application

♦ Our products are widely used in various fields, such as generators,water pumps, rotavator,concrete cutter,plate compactor,high pressure washer

Care & Maintenance

About Us

Exhibition

♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.

♦ ISO, CE Certificates. We have been making good progress.
