- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns/OEM
- Model Number:
- DG11000SE
- Rated Voltage:
- 220,230,380,240,380,400,415
- Rated Current:
- 8.3A
- Speed:
- 3000rpm
- Frequency:
- 50HZ
- Engine power:
- 16HP diesel engine
- Engine model:
- HR198F
- engine type:
- 4 storke air-cooled diesel engine
- Alternator type:
- 100% copper wire alternator
- Generator model:
- Silent diesel generator
- Rated output:
- 7.5KW diesel generator
- Max. output:
- 8KW diesel generator
- Noise level:
- 75-80 DB
- Start system:
- Electric start with 36AH battery
- Fuel tank:
- 30L diesel generator
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 113X76X86 cm
- Single gross weight:
- 225.0 kg
- Package Type:
- Carton packing with plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 11 - 96 >96 Est. Time(days) 18 25 To be negotiated
Newly patent product 198F diesel engine rated 7.5KW silent diesel generator
*16HP diesel engine HR198F~
*100% copper wire alternator~
*Big Silent canopy, portable model~
*7.5KW rated output~
*Four wheels ensure easy moving~
*Electric start with 36AH battery~
Simon Yang (Just press Chat Now!)
♦ Mobile/WhatsApp: 008613775105526
♦ E-mail: server-wm1(at)hiearns.com
♦ SKYPE: ysdsimon
♦ TradeManager: cn200048131
♦ WeChat: SimonMrYang
♦ QQ: 568238531
Newly patent product 198F diesel engine rated 7.5KW silent diesel generator

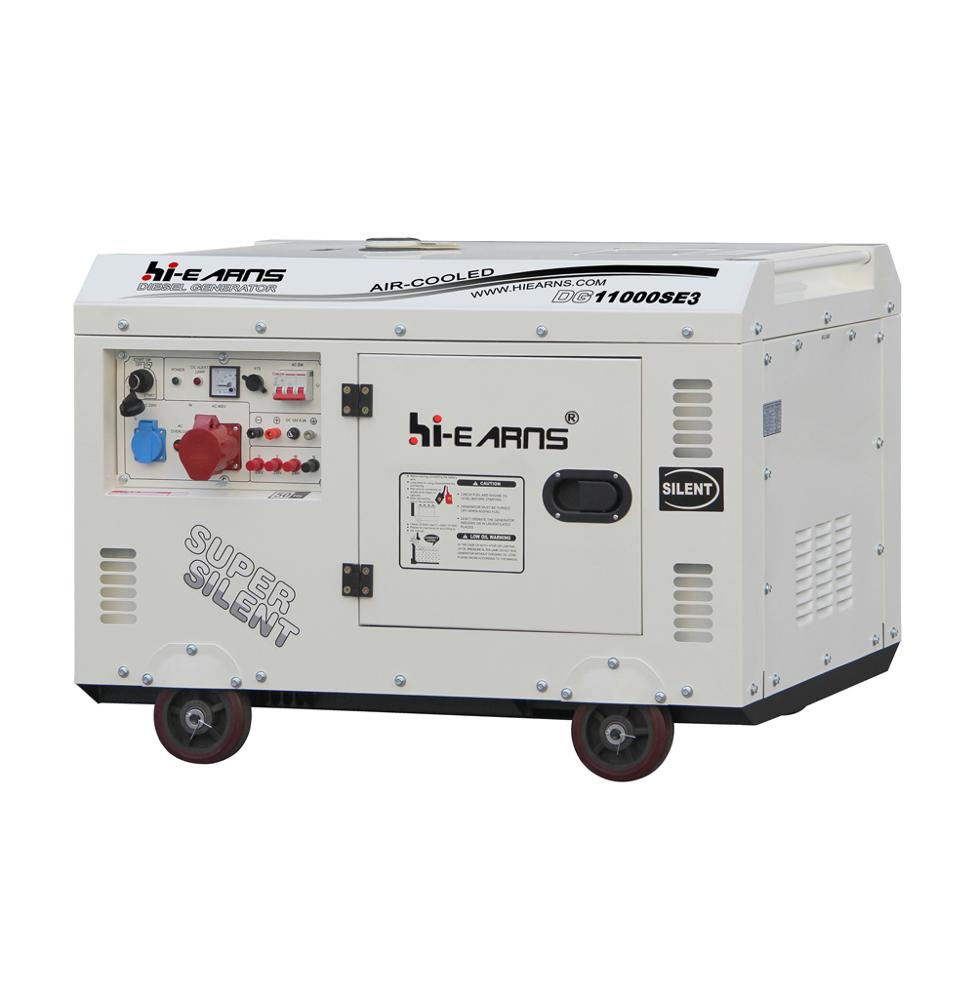

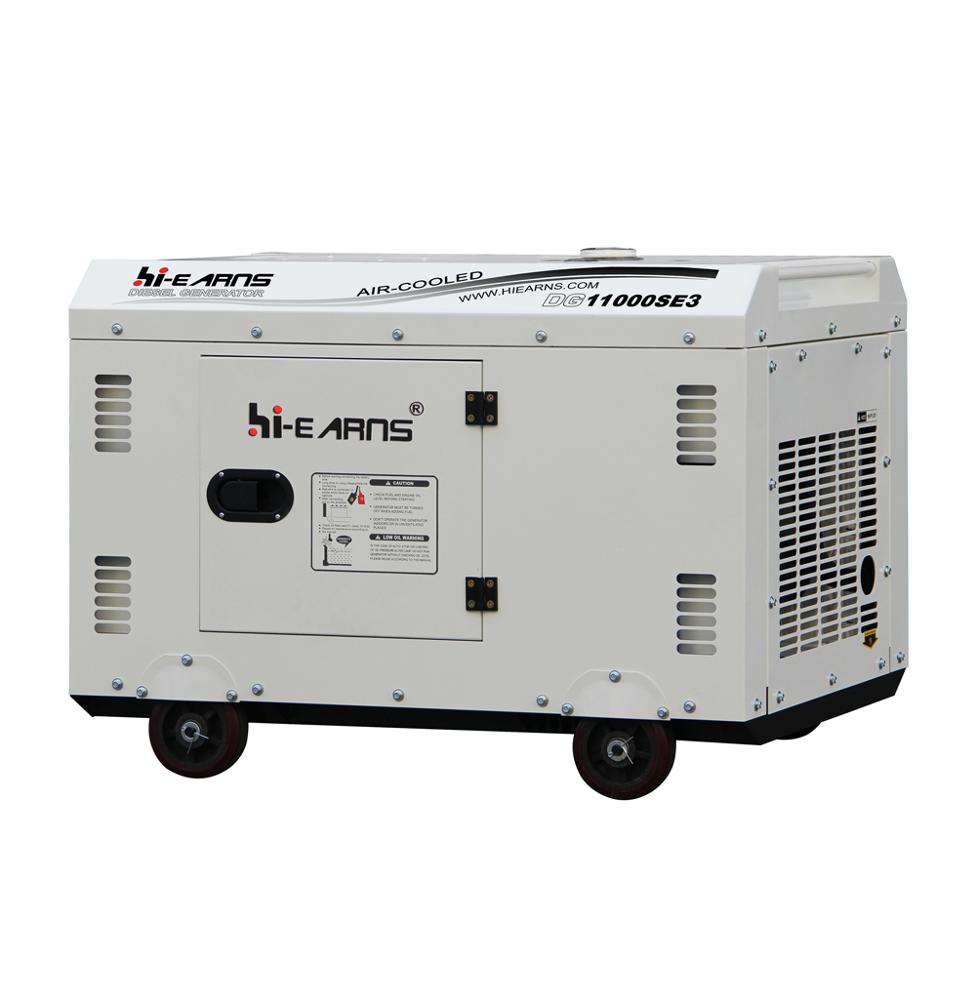

♦DG11000SE model: With 16 HP HR198F air cooled diesel engine and 100% copper wire KETE alternator ensure a 7.5KW rated output, and 8KW max. output! diesel generator
♦Electric start with 36AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have open frame model DG11000E, the noise maybe little bigger, and the price can have a discount!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
GENERATOR | Model | DG11000SE | ||
Frequency (HZ) | 50 | 60 | ||
Max. output (KW) | 8 | 8.5 | ||
Rated output (KW) | 7.5 | 8 | ||
Rated. AC voltage (V) | 120, 220, 230, 240 | |||
Power factor (cosΦ) | cosΦ=1 | |||
DC output (V) | 12V/8.3A | |||
Phase | Single phase | |||
Alternator type | self-excited, 2-pole, single phase alternator | |||
Starting system | Electric | |||
Operating noise level (at 7m) | 70~72 | |||
Fuel tank capacity (L) | 30 | |||
Continues work (H) | 12 | 11.5 | ||
ENGINE | Model | HR198FA | ||
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |||
Bore×stroke (mm) | 98×84 | |||
Fuel | 0# or -10# light diesel fuel | |||
Lubrication oil volume (L) | 1.65 | |||
Combustion system | Direct lnjection | |||
STANDARD FEATURES | Voltmeter | yes | ||
AC Output Socket | 2 | |||
AC circuit breaker | yes | |||
Oil warning light | yes | |||
Oil alert | yes | |||
OPTIONAL FEATURES | DC circuit breaker | optional | ||
Calculagraph | optional | |||
Big Wheel | optional | |||
Three phase voltage | optional | |||
Current meter | optional | |||
ATS | optional | |||
Remote control | optional | |||
Welding | optional | |||
DIMENSIONS | Dimension (L×W×H) (mm) | 1110×760×860 | ||
Net weight (kg) | 210 | |||
20FT/40HQ | 30 / 96 | |||
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
