Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hiearns
- Model Number:
- GF1-30KW/40KVA
- Rated Voltage:
- 220/380, 230/400,240/415V
- Rated Current:
- 60A
- Speed:
- 1500rpm/1800rpm
- Frequency:
- 50/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Open and electric
- Panel:
- digital panel and ATS
- Cooled type:
- Water cooled
- Cylinder:
- Four cylinder
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- YC4FA55Z-D20
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Wooden with plastic film
Delivery time: 20 days
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

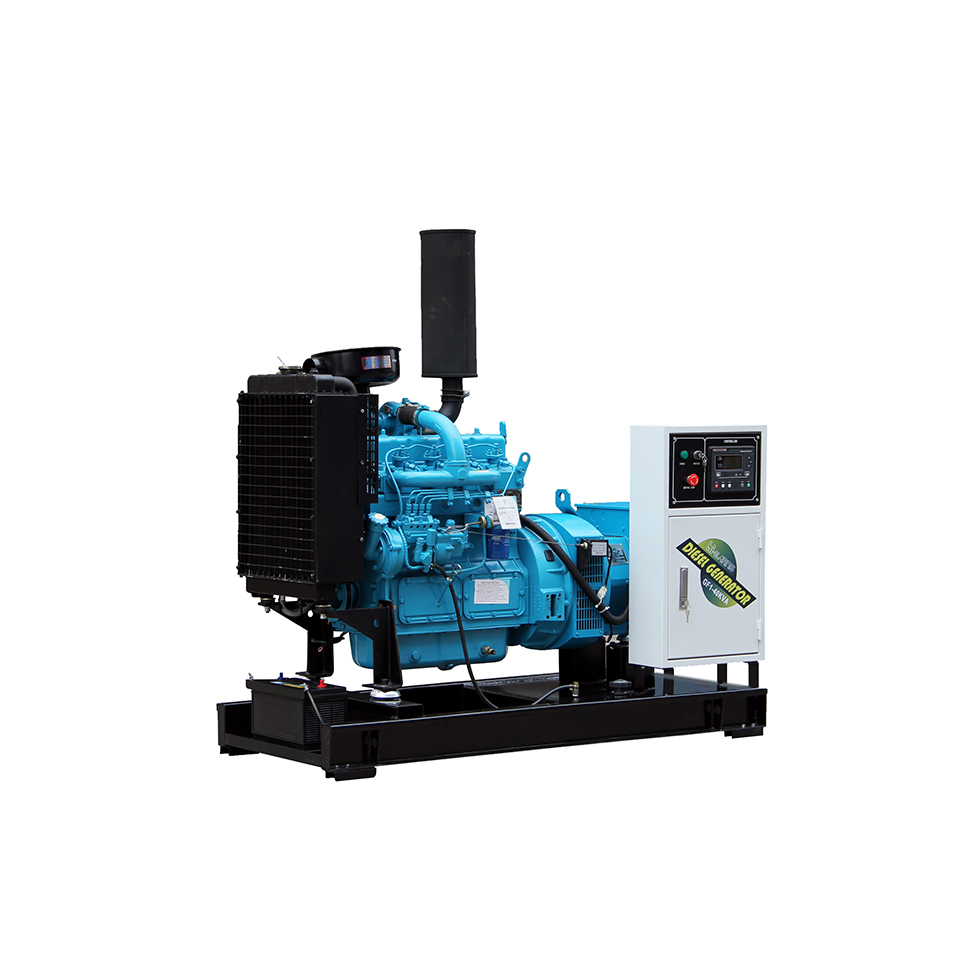

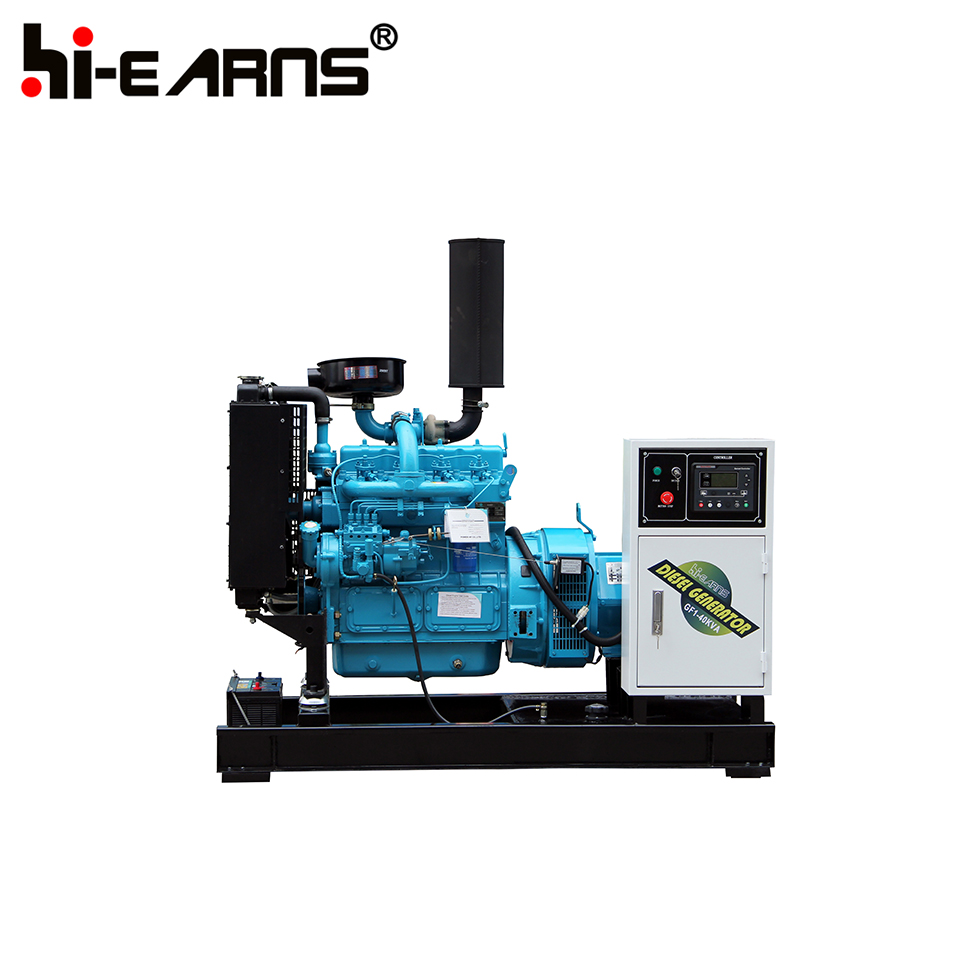

40KVA 30KW three phase water cooled open type diesel generator
| MODEL | GF- 40KVA | |||||
| Standby Power (50HZ ) | 32KW / 40KVA | |||||
| Prime Power (50HZ ) | 30KW / 38KVA | |||||
| Voltage | Frequency (HZ) | Phase | P.F | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 52 | 32/40 | 30/38 |
| 415/240 | 50 | 3 | 0.8 | 56 | 32/40 | 30/38 |
| 400/230 | 50 | 3 | 0.8 | 58 | 32/40 | 30/38 |
| 380/220 | 50 | 3 | 0.8 | 61 | 32/40 | 30/38 |
| ENGINE DATA | ||||||
| Engine Type | Yuchai Engine YC4FA55Z-D20 | |||||
| Shape | Straight 4 cylinder | |||||
| Bore×Stroke (mm) | 96×103 | |||||
| Power/Speed (KW/r/min) | 36.8 / 1500 | |||||
| Adjust Speed Type | Electronic Speed Controller | |||||
| ALTERNATOR DATA | ||||||
| Power Factor | 0.8 Lag | |||||
| Environment Temperature | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Ignite sequence | 1-3-4-2 | |||||
| Intake Type | pressurize | |||||
| Rated Speed Regulation % | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size :1.98(m)×0.84(m)×1.06(m) | Overall Size :2.1(m)×0.85(m)×1.24(m) | |||||
| Weight :746kg | Weight :806kg | |||||
