Home > Products > 250KW 315KVA open type chinese water cooled engine diesel generator

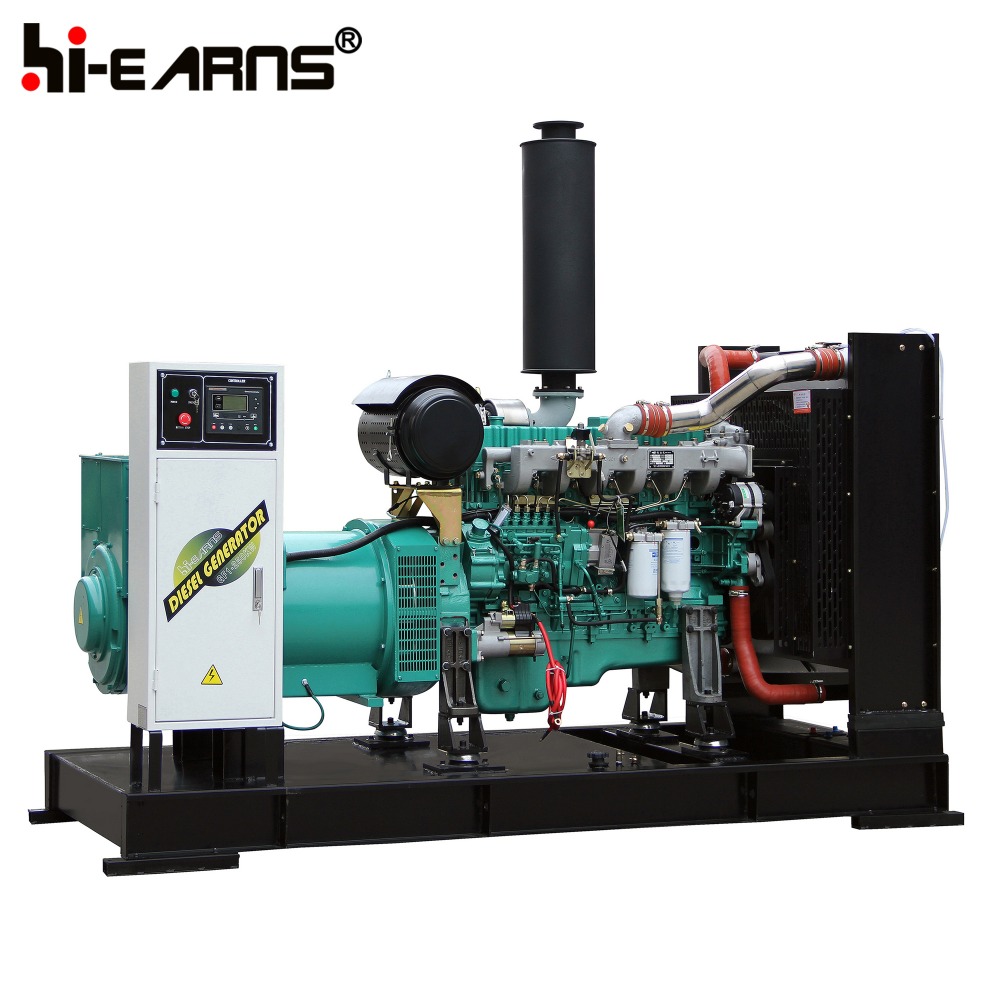

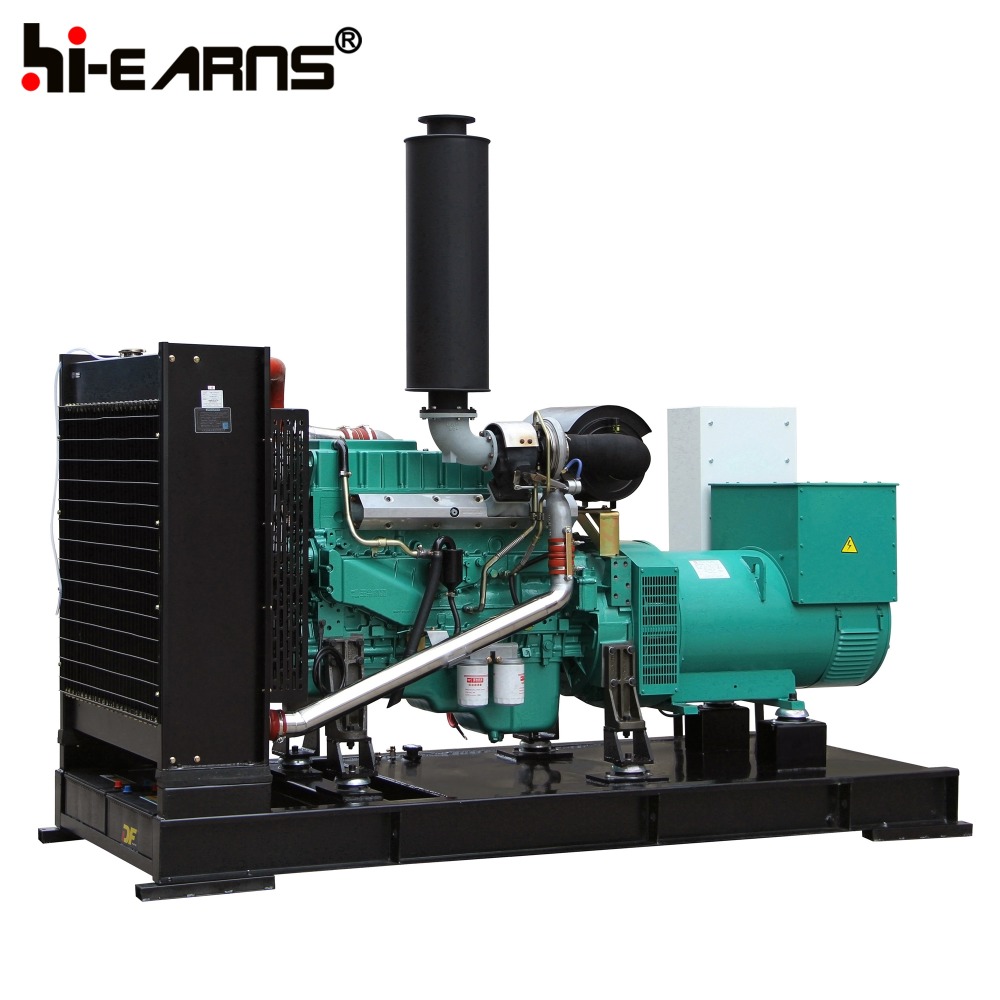

250KW 315KVA open type chinese water cooled engine diesel generator

Click on the image to view the original image

Product：	views：3250KW 315KVA open type chinese water cooled engine diesel generator
Branch：	Hi-earns
Type：	Open and electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:35

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Packaging Details: Packaging details:Wooden with plastic film
Delivery time: 25 days

Lead Time:

Quantity(Pieces)	1 - 1	2 - 4	>4
Est. Time(days)	20	25	To be negotiated

Related Products

GF1-250KW open type three phase water cooled diesel generator

MODEL	GF1- 250KW
Standby Power(50HZ )	270KW / 340KVA
Prime Power (50HZ )	250KW / 310KVA
ENGINE DATA
Engine Type	CCEC Cummins
Air Intake System	Turbo,Water/Air Cooling
Fuel System	PT type fuel pump
Fuel Consumption	188
Cylinder Arrangement	6 in line
Displacement	14L
Bore×Stroke	140×152(mm)
Compression Ratio	14.0:1
Rated RPM	1500rpm
Max.Standby Power at Rated RPM	280KW / 380HP
Governor Type	Electronic
Max Water Temperature	104℃
ALTERNATOR DATA
General Data
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards.
Alternator Data
Number of Phase	3
Connecting Type	3 Phase and 4 Wires,"Y" type connecting
Number of Bearing	1
Power Factor	0.8 Lag
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless,self-exciting
Insulation Class,Temperature Rise	H/H
Telephone Influence Factor(TIF)	<50
THF	<2%
Voltage Regulation,Steady State	≤±1%
Alternator Capacity	310KVA
Alternator Efficiencies	93.50%
Air Cooling Flow	0.8m3/s
Dimension & Weight
Open Type	Soundproof Type
Overall Size :3.1(m)×1.1(m)×1.65(m)	Overall Size :4.225(m)×1.46(m)×2.15(m)
Weight :2650kg	Weight:3800kg
