Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-100KW/125KVA
- Rated Voltage:
- 220V/380,230/380,240/415V
- Rated Current:
- 190A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- weichaiR6105ZLD
Supply Ability
- Supply Ability:
- 50 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Wooden with plastic film
Delivery time: 20 days
- Port
- Shanghai port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products

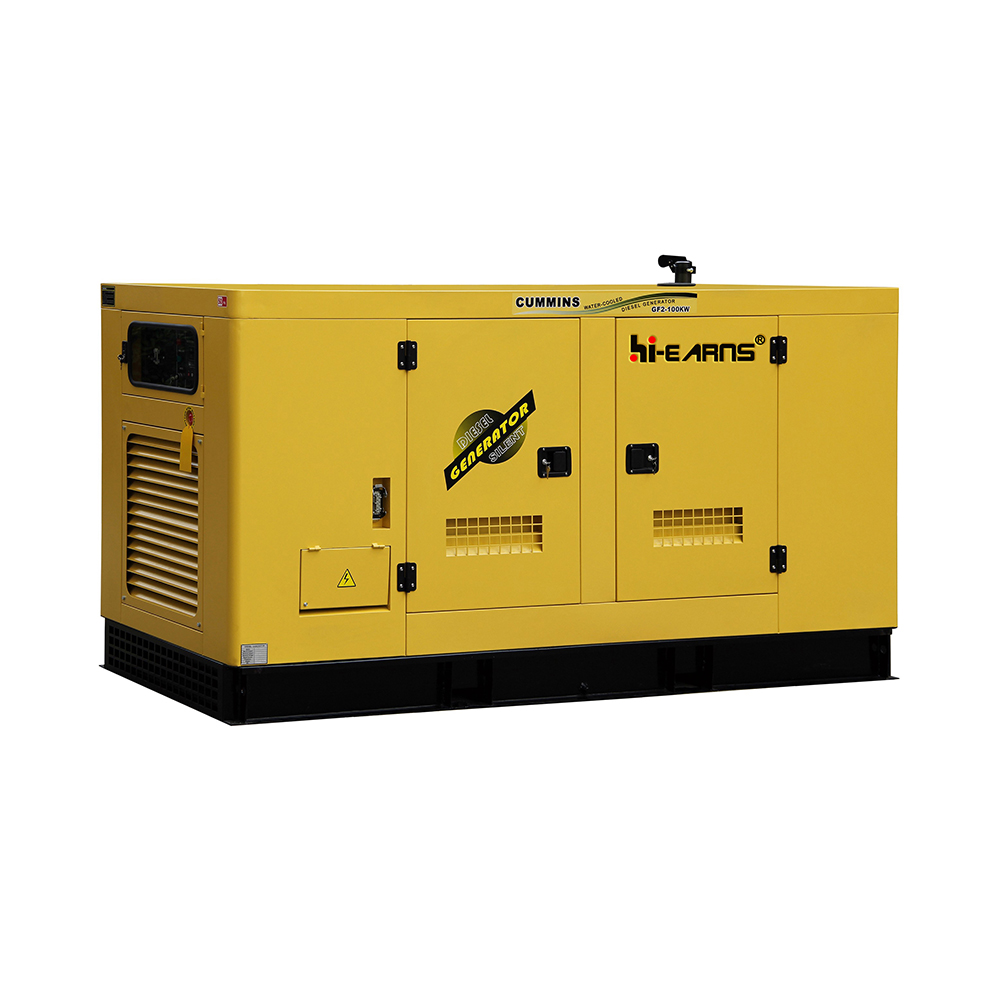

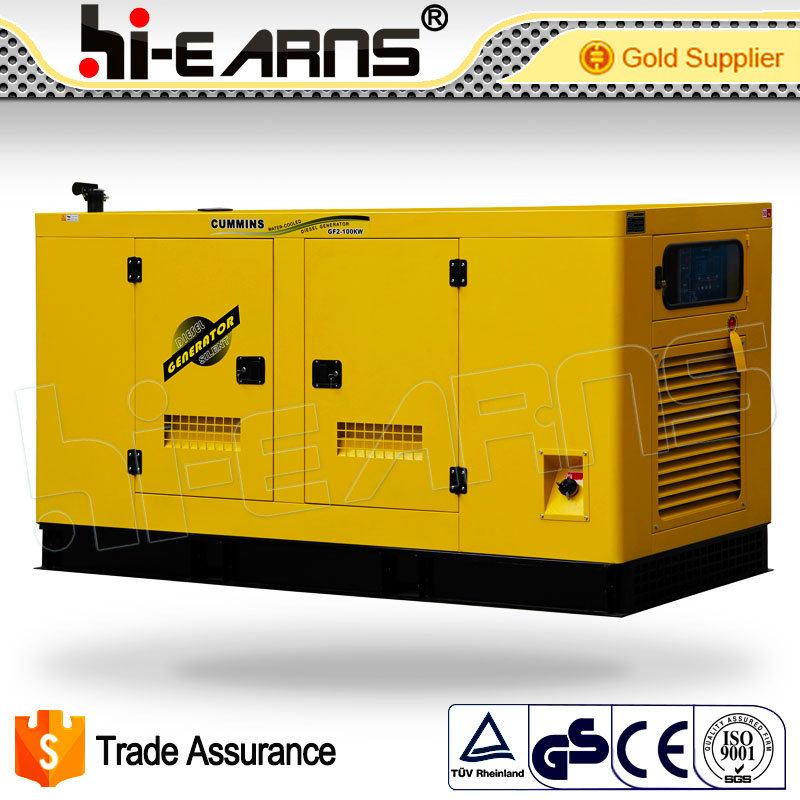

GF2-100KW silent three phase water cooled diesel generator
| Voltage | Frequency (HZ) | Phase | P.F | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 172 | 105/132 | 100/125 |
| 415/240 | 50 | 3 | 0.8 | 182 | 105/132 | 100/125 |
| 400/230 | 50 | 3 | 0.8 | 189 | 105/132 | 100/125 |
| 380/220 | 50 | 3 | 0.8 | 199 | 105/132 | 100/125 |
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Weifang Huadong Engine R6105ZLD. Four stroke,Water-cooled,Direct line,Turbo type | |||||
| Rated RPM (r/min) | 1500rpm | |||||
| Cooling System | Forced Water-cooled | |||||
| Fuel Consumption (≤g/kw.h) | ≤224 | |||||
| Compression Ratio | 16:01 | |||||
| Bore×Stroke (mm) | 105×130 | |||||
| Displacement (L) | 6.75 | |||||
| Start Method | Electric Start | |||||
| ALTERNATOR DATA | ||||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤600 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Ignite sequence | 1-5-3-6-2-4 | |||||
| Intake Type | charge inter-cooling | |||||
| Rated Speed Regulation % | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension & Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:2.3(m)×0.85(m)×1.5(m) | Overall Size: 2.8(m)×1.12(m)×1.68(m) | |||||
| Weight :1330kg | Weight :1600kg | |||||
