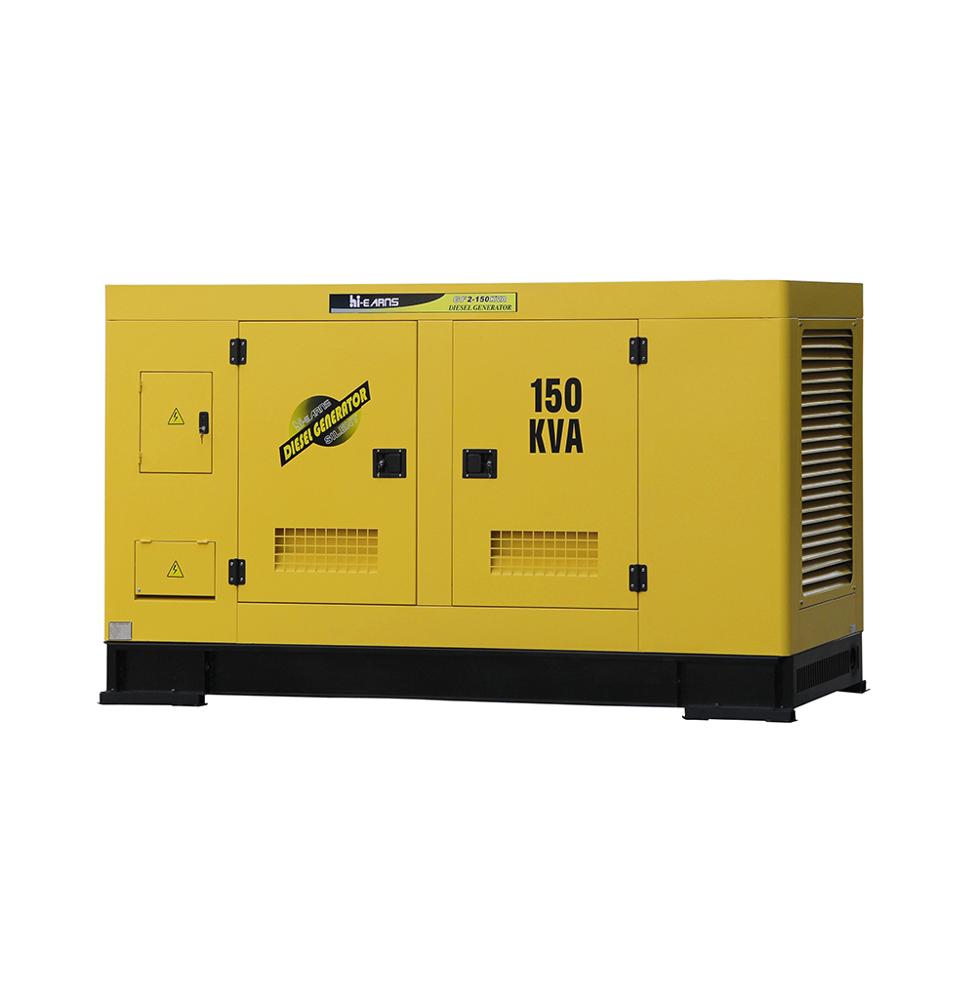

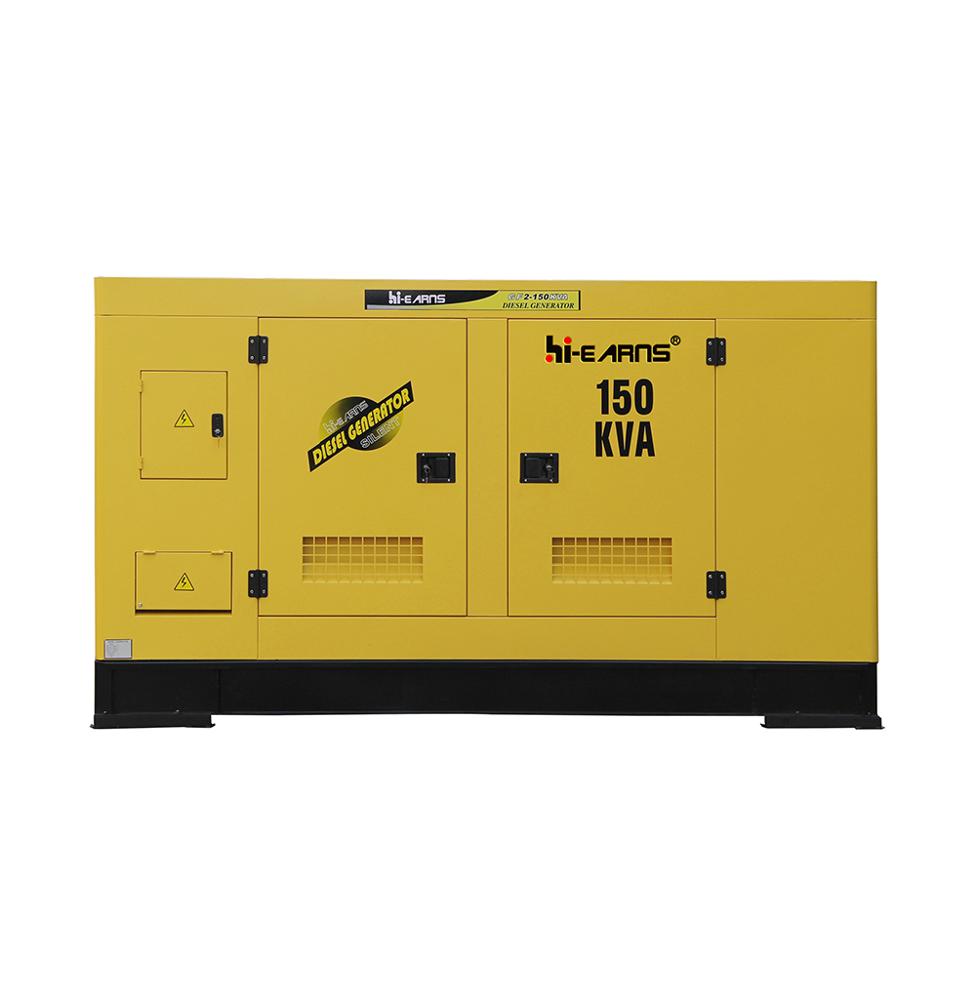

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- GF2-120KW/150KVA
- Rated Voltage:
- 220V/380,230/380,240/415V
- Rated Current:
- 228A
- Speed:
- 1500RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Digital panel/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- three
- Engine type:
- Cummins 6CTA8.3-G2
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Wooden with plastic film
Delivery time: 25 days
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 2 - 4 >4 Est. Time(days) 25 35 To be negotiated
Related Products
150KVA silent water cooled diesel generator
| Voltage | Frequency (Hz) | Phase | P.F (COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 217 | 132/165 | 120/150 |
| 415/240 | 50 | 3 | 0.8 | 230 | 132/165 | 120/150 |
| 400/230 | 50 | 3 | 0.8 | 238 | 132/165 | 120/150 |
| 380/220 | 50 | 3 | 0.8 | 250 | 132/165 | 120/150 |
| ENGINE DATA | ||||||
| Engine Type | DCEC Cummins 6CTA8.3-G2, 4-cycle | |||||
| Air Intake System | Turbo, Water/Air Cooling | |||||
| Fuel System | PB type fuel pump | |||||
| Fuel Consumption (≤g/kw.h) | 215 | |||||
| Cylinder Arrangement | 6 in line | |||||
| Displacement (L) | 8.3 | |||||
| Bore×Stroke (mm) | 114×135 | |||||
| Compression Ratio | 17.0:1 | |||||
| Rated RPM | 1500 | |||||
| Max.Standby Power at Rated RPM | 180KW / 244HP | |||||
| Governor Type | Electronic | |||||
| Max Water Temperature | 104℃ | |||||
| ALTERNATOR DATA | ||||||
| Number of Phase | 3 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Number of Bearing | 1 | |||||
| Power Factor | 0.8 Lag | |||||
| Protection Grade | IP23 | |||||
| Altitude | ≤1000m | |||||
| Voltage Regulation,Steady State | ≤±1% | |||||
| Alternator Capacity | 150KVA | |||||
| Alternator Efficiencies | 92.20% | |||||
| Air Cooling Flow | 0.37m3/s | |||||
| Dimension & Weight | ||||||
| Open Type | Silent Type | |||||
| Overall Size (m): 2.3×0.85×1.55 | Overall Size (m): 2.95×1.12×1.62 | |||||
| Weight: 1500kg | Weight: 1900kg | |||||
