Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP60E
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- open and electric
- Wheel:
- Rubber solid wheel
- Noise:
- low
- Engine type:
- HR192F
- Quality:
- Best
- Fuel pump:
- Best
- Fuel bank:
- 25L
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day water pump
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:775X550X855mm
Delivery time: 20 days
One 20FT can load 42 pcs.
One 40HQ can load 90 pcs
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

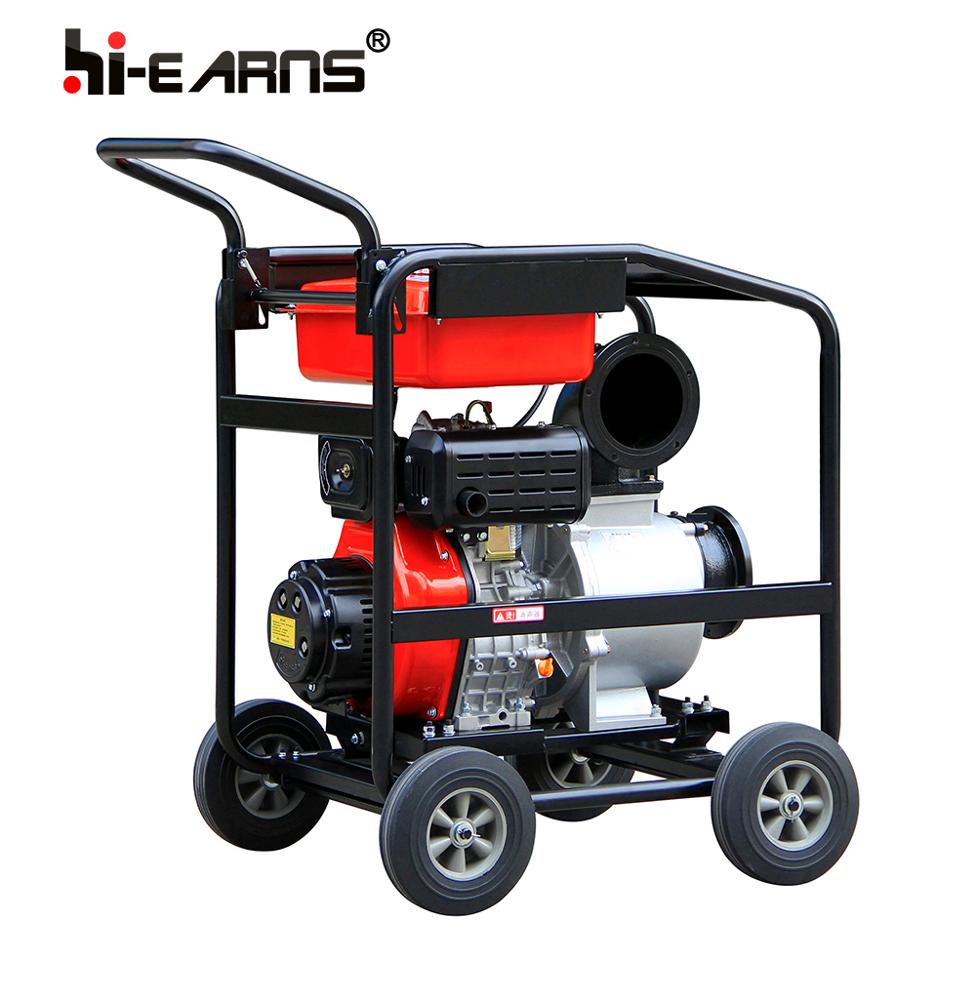

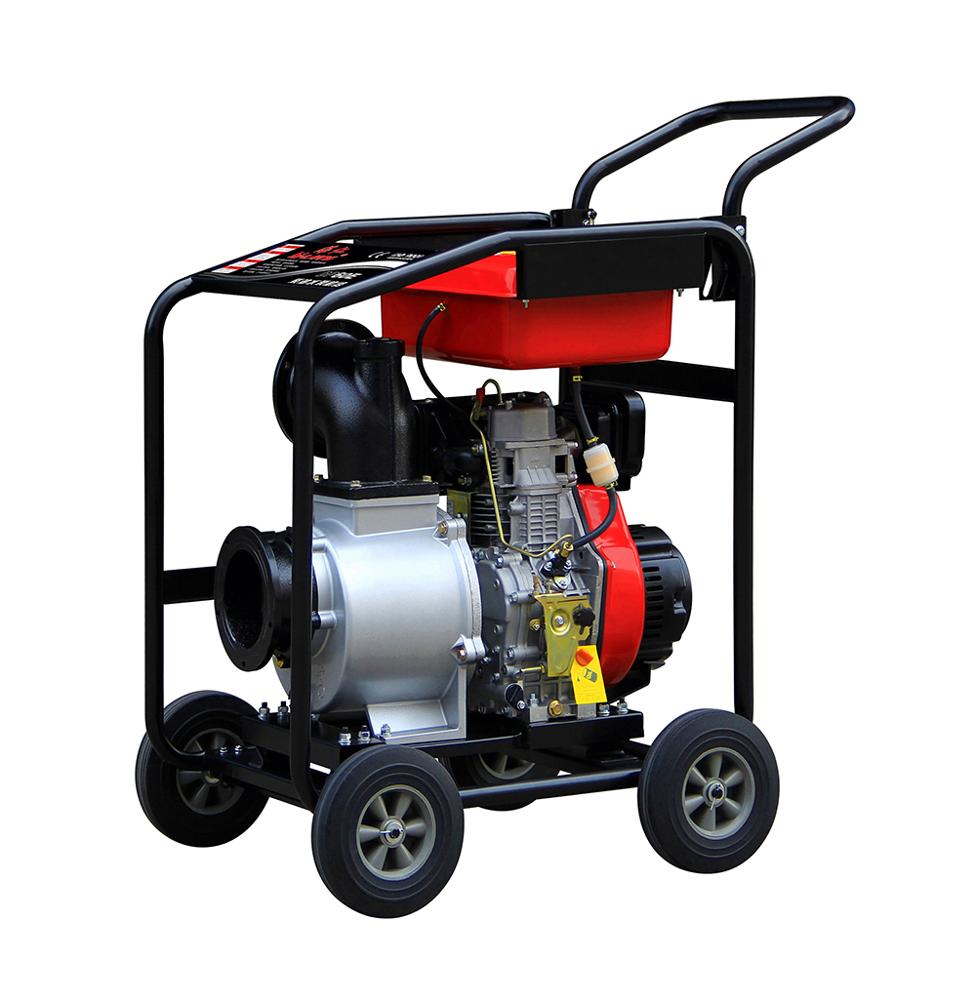

Diesel water pump(DP60)
| WATER PUMP | Model | DP60 | |
| Suction,discharge port diameter[mm(in)] | 150(6"), 150(6") | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR192FC | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 498 | ||
Bore*stroke(mm) | 92*75 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 25 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 755×530×825 | |
| Net weight(kg) | 147 | ||
| 20FT | 56 | ||
