Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- IS125-100-400A
- Structure:
- Single-stage Pump
- Usage:
- Water
- Application:
- drainage, fire fighting water supply
- Power:
- Electric
- Fuel:
- Diesel, diesel
- Pressure:
- Low Pressure
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- open and electric
- Cool style:
- water cooled
- Warranty:
- One year
- Engine type:
- 36kw power
- Quality:
- Best
- Fuel pump:
- Best
- Fuel bank:
- 80L
- Price:
- More competitive
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day water pump
Packaging & Delivery
- Packaging Details
- Packaging details: Wooden with plastic film
Packaging size:1.97x0.88x1.36m
Delivery time: 25 days
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

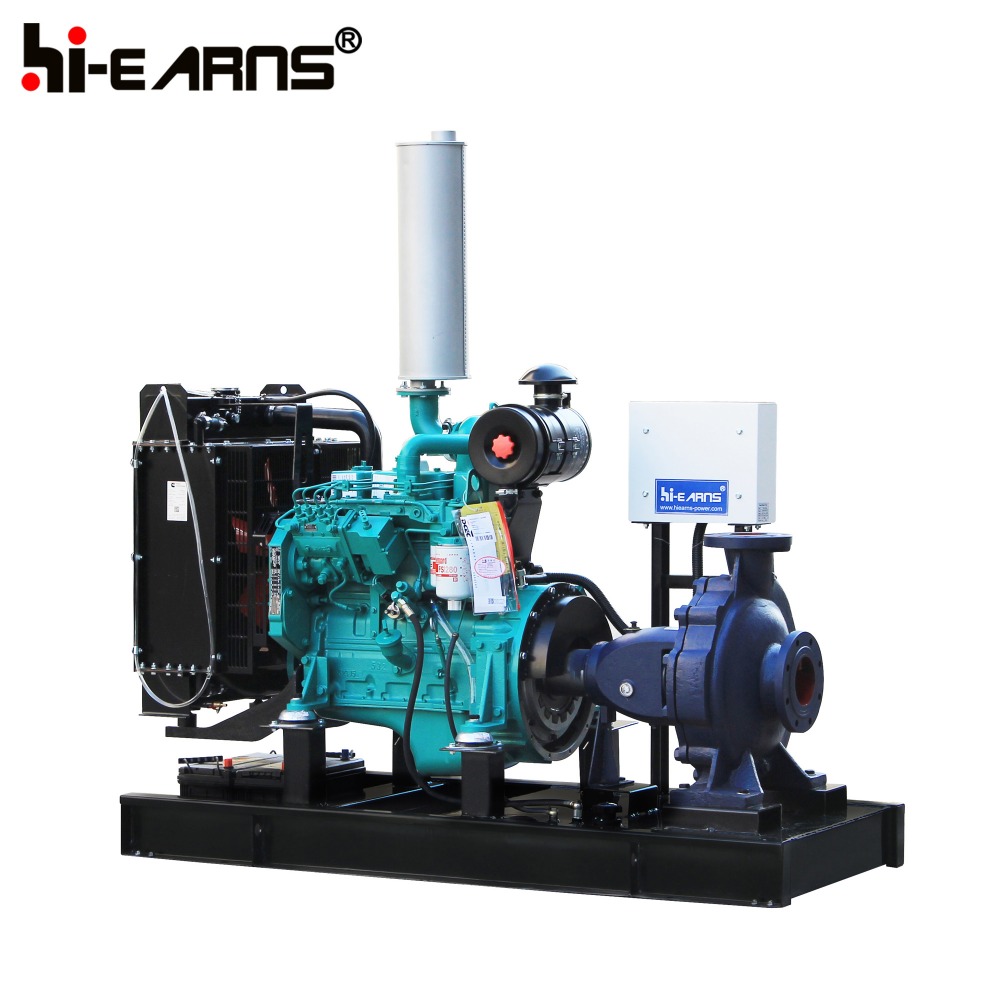

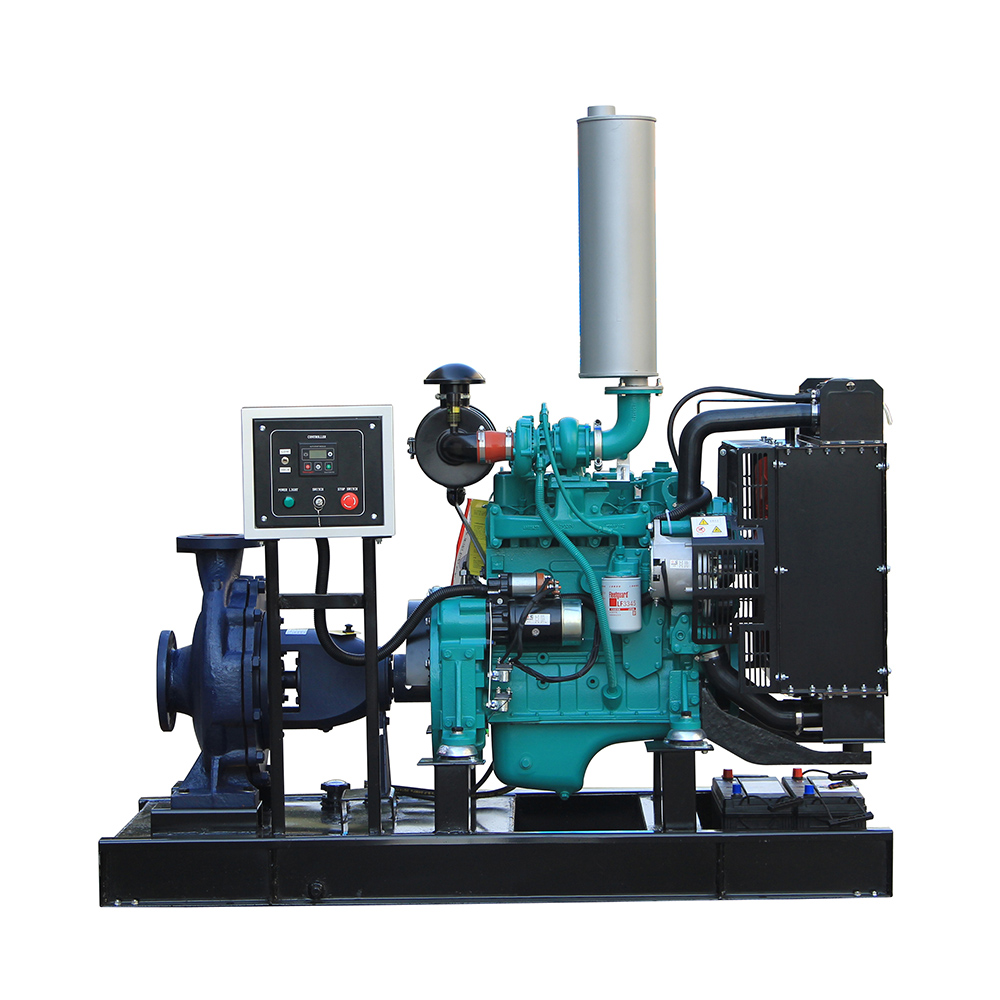

Diesel water pump(IS125-100-400A)
| Model | IS125-100-400A | |
| WATER PUMP | Type | Single stage single suction centrifugal pump |
| Inlet diameter | 5inch (125mm) | |
| Outlet diameter | 4inch (100mm) | |
| Cont.head (m) | 44 | |
| Cont.capacity (m3/hr) | 93.9 | |
| Suction lift (m) | 6 | |
| Pump speed (rpm) | 1500 | |
| Fuel tank capacity (L) | 80 | |
| Battery capacity | 24V-100A | |
| Cashing material | Ductile cast iron | |
| Connection method | High elastic dowel pin shaft couping | |
| ENGINE | Engine model | Cummins 4BT3.9-G2 |
| Rated output (KW) | 36 | |
| Speed (rpm) | 1500 | |
| BorexStroke (mm) | 102x120 | |
| Type | DCEC Cummins 4BT3.9-G2, 4-cycle | |
| Cylinder | 4 | |
| Air intake system | Turbo charged inter cooled | |
| Start motor | DC24V | |
| AC charger | DC24V | |
| Fuel consumption (g/kw.h) | ≤214 | |
| Oil capacity (L) | 14 | |
| Cooling way | Water cooled | |
| Governor type | Electronic speed control system | |
| Max. water temperature ( ℃ ) | 104 | |
| DIMENSION | Dry weight (kg) | 803 |
| Gross weight (kg) | 903 | |
| Pump size (L*W*H) (m) | 1.85x0.8x1.35 | |
| Packing size (L*W*H) (m) | 1.97x0.88x1.36 | |
| Packing method | Wooden with iron sheet | |
