Overview
Quick Details
- Applicable Industries:
- Hotels, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Condition:
- New
- Stroke:
- 4 Stroke
- Cylinder:
- Twin cylinder
- Cold Style:
- Air-cooled
- Start:
- Electric Start
- Place of Origin:
- China
- Brand Name:
- Hi-earns
- Dimension(L*W*H):
- 550*550*570 mm
- Weight:
- 70kg
- Certification:
- CE/ISO9001
- Warranty:
- One year
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Air filter:
- Normal type
- Noise:
- Low level
- Fuel tank:
- Best quality
- Fuel pump:
- Best quality
- Displacement:
- 836cc
- Engine speed:
- 3000/3600rpm
- Starting system:
- Electric
- Fuel tank capacity:
- 12L
- Shaft types:
- keyway shaft
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 55X55X57 cm
- Single gross weight:
- 70.0 kg
- Package Type:
- Carton with plastic film and plywood pallets
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 5 >5 Est. Time(days) 15 30 To be negotiated
Related Products

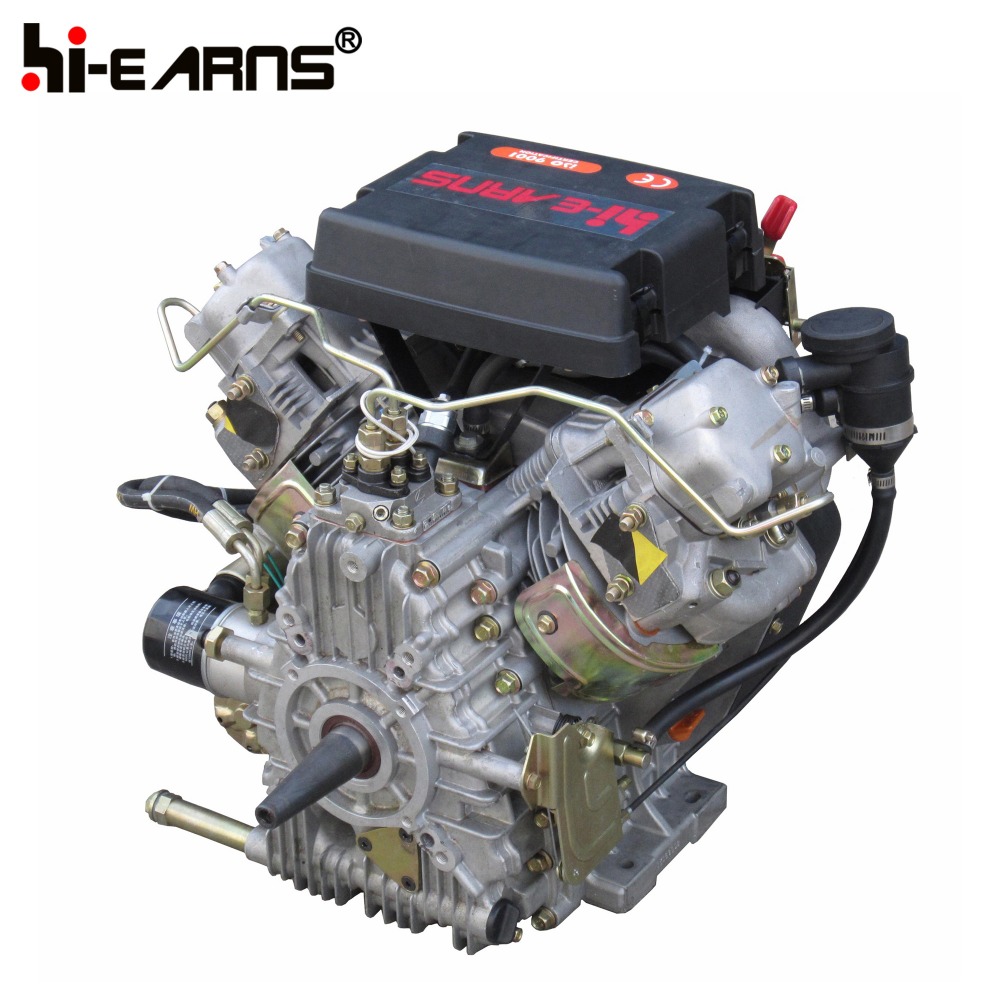

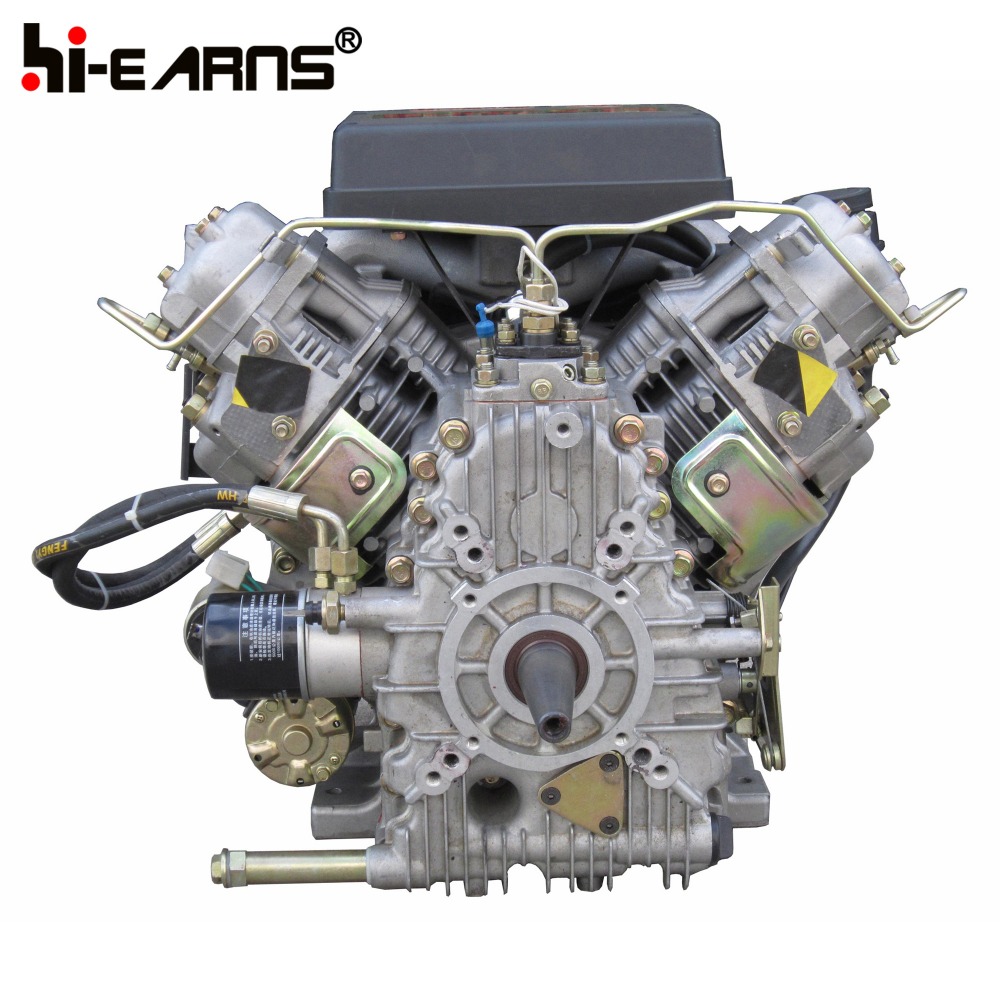

Air-cooled twin cylinder diesel engine HR2V86F
| Model | HR2V86F | |
| Borexstroke(mm) | 86x72 | |
| Displacement(cc) | 836 | |
| Max.torque(N.m/r/min) | 41/2600 | |
| Engine speed(rpm) | 3000 | 3600 |
| Max.output(hp) | 18 | 19 |
| Continuous output(hp) | 17 | 18 |
| Fuel consumption(g/kw.h) | ≤270 | ≤290 |
| Type | V-twin,4-stroke,air-cooled | |
| Starting system | Electric | |
| Lubricating way | Forced & Splashing | |
| Rotation direction at output end | Counter-clockwise | |
| Lube oil capacity(L) | 2.3 | |
| Noise at 7m(db) | ≤86 | |
| Dimension(mm) | 550*550*570 | |
| Net weight(kgs) | 70 | |
