Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- hiearns
- Model Number:
- GF2-10KW
- Rated Voltage:
- 220/380V, 230/400V
- Rated Current:
- 19A
- Speed:
- 1500rpm
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- Solid rubber wheel /omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- Three phase
- Engine type:
- QC480D
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:wooden with plastic film
Delivery time: 20 days
- Port
- FOBshanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 4 >4 Est. Time(days) 25 To be negotiated
Related Products

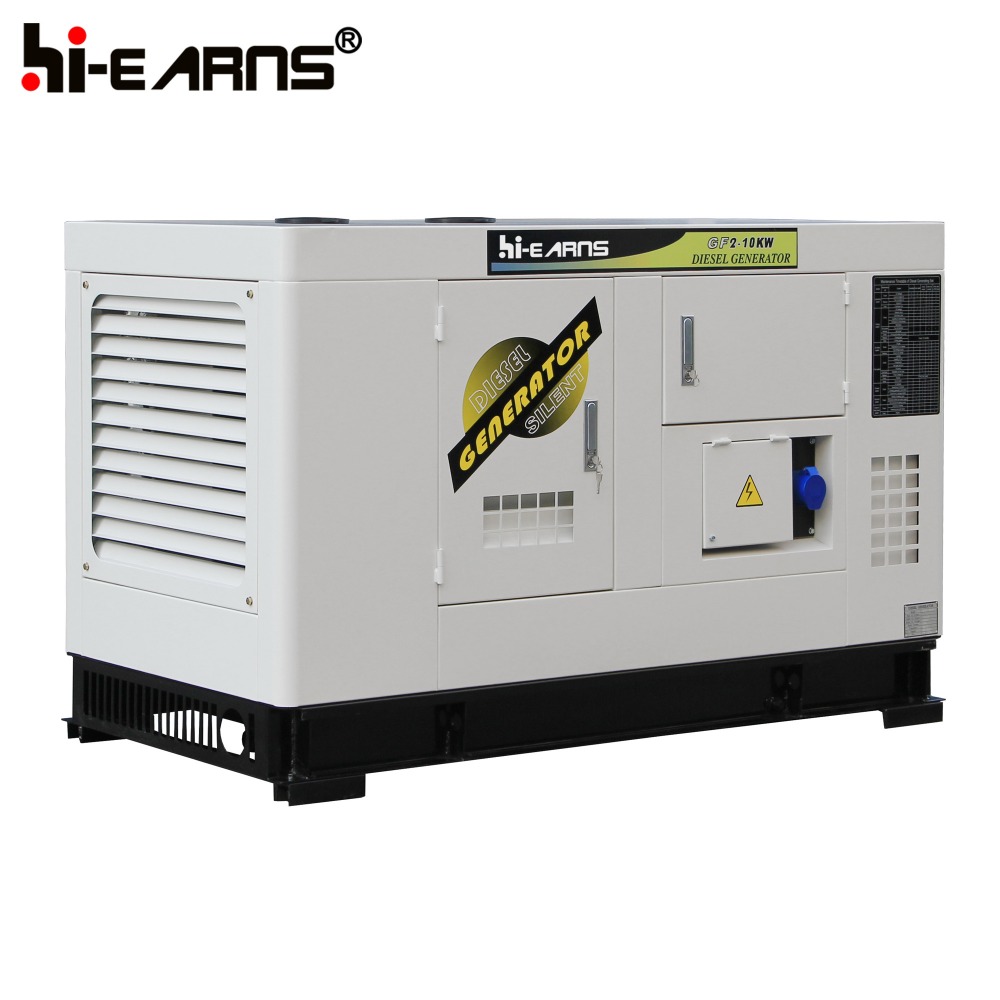

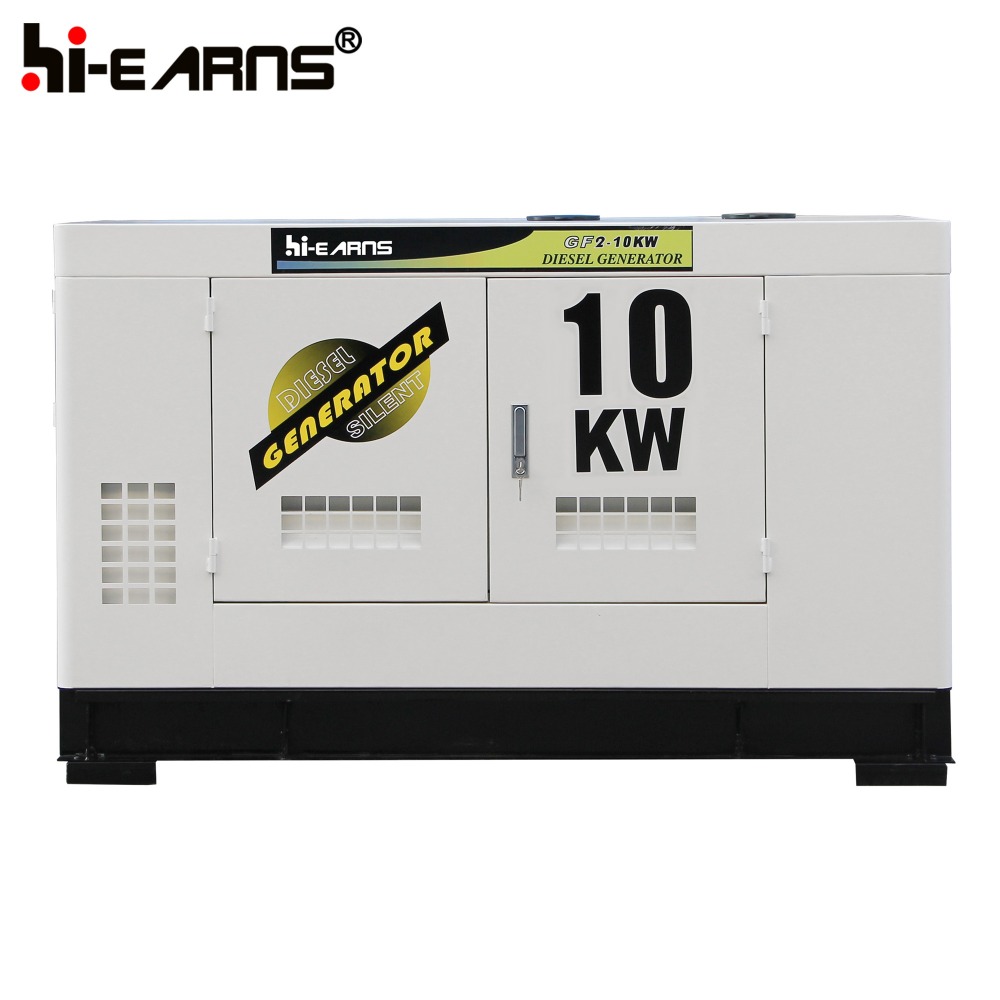

GF2-10KW silent three phase water cooled diesel generator set
| MODEL | GF2- 10KW |
| Standby Power (50HZ ) | 11KW / 14KVA |
| Prime Power (50HZ ) | 10KW / 12KVA |
| ENGINE DATA | |
| Engine Type : | Quanchai Engine QC480D. Four stroke,Water-cooled, Direct line |
| Rated RPM (r/min) | 1500rpm |
| Cooling System | Forced Water-cooled |
| Fuel Consumption (≤g/kw.h) | ≤249 |
| Cylinder Number | 4 |
| Bore×Stroke (mm) | 80×90 |
| Displacement (L) | 1.809 |
| Start Method | Electric Start |
| Rated Speed Regulation (g/kW·h) | ≤5 |
| Combustion Chamber Type | Direct Injection |
| Add Oil Capacity | 4L |
| ALTERNATOR DATA | |
| Alternator Data | |
| Power Factor | 0.8 Lag |
| Insulation Class | H |
| Lubricating System | Pressure,Split,Complex |
| Protection Grade | IP23 |
| Exciter Type | Brushless,self-exciting |
| Altitude | ≤1000m |
| Environment Temperature (℃) | 40 |
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting |
| Intake Type | Natually-Aspirated |
| Rated Speed Regulation % | ≤±1% |
| Phase | 3 |
| Dimension & Weight | |
| Open Type | Soundproof Type |
| Overall Size :1.40(m)×0.55(m)×1.00(m) | Overall Size :1.65(m)×0.85(m)×1.02(m) |
| Weight :570kg | Weight :620kg |
