Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG11000SE
- Rated Voltage:
- 220/230/240V
- Rated Current:
- 34A
- Speed:
- 3000RPM
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 1
- Phase:
- Single
- Engine type:
- HR198FAE
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:113X76X86cm
Delivery time: 20 days
One 20FT can load 30 pcs.
One 40HQ can load 96pcs.
- Port
- Shanghai or other Chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 20 To be negotiated
Related Products
Product Description
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four solid wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

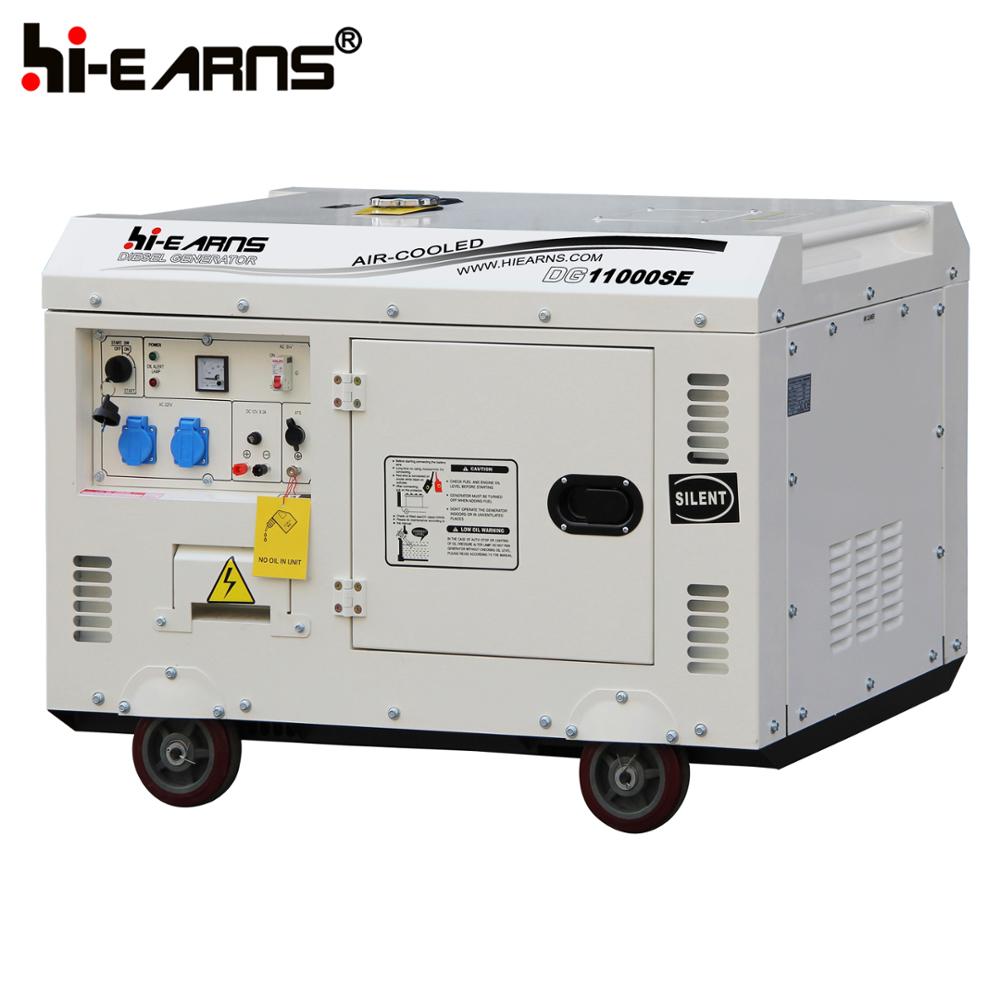

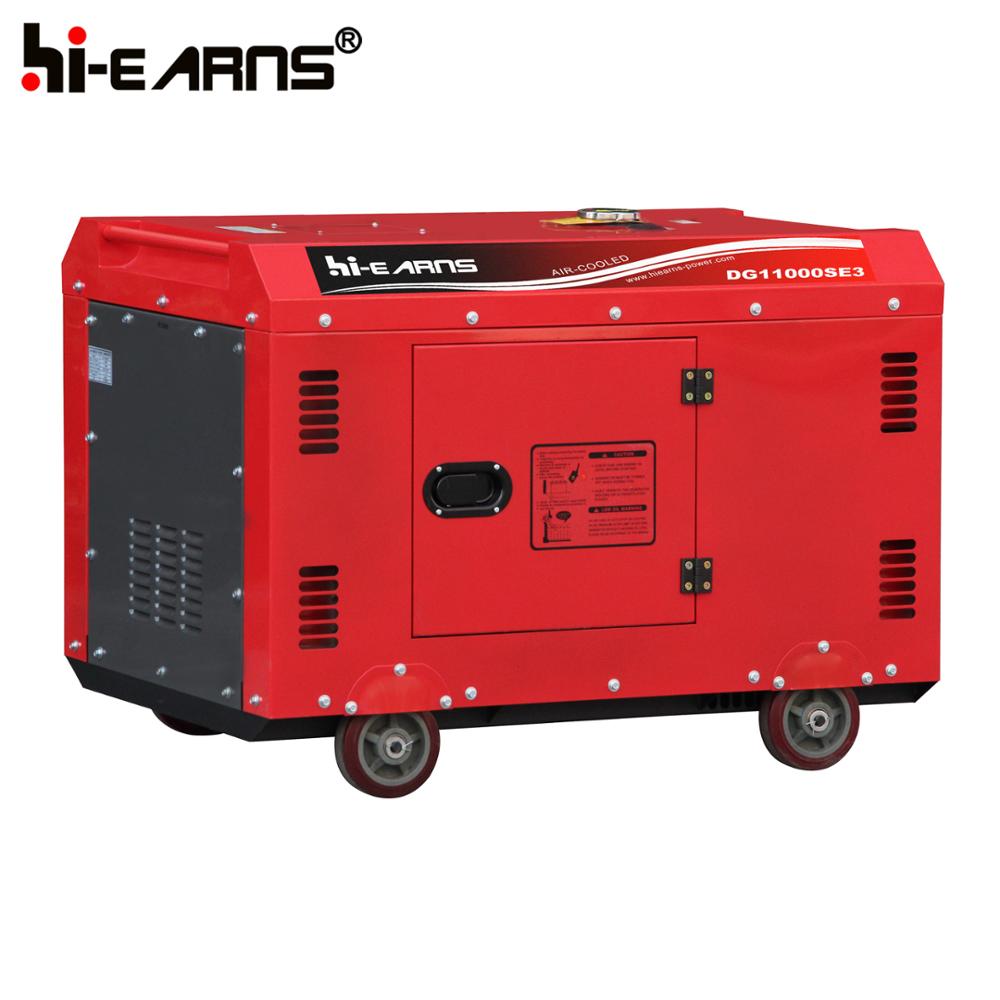

DG11000SE 8KW electric silent air-cooled diesel generator
| Model | DG11000SE | ||
| GENERATOR | Frequency (HZ) | 50HZ | |
| Max.output (KW) | 8 | ||
| Rated output(KW) | 7.5 | ||
| Rated AC Voltage(V) | 110,220,230,240 | ||
| Power Factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single Phase | ||
| Alternator Type | Self-excited,2-pole, Single alternator | ||
| Starting System | electric | ||
| Noise Level (dB/7m) | 75dB | ||
| Fuel Tank Capacity (L) | 30L | ||
Continuous Running Time (hr) | 12 | ||
| ENGINE | Engine Model | HR198FA | |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | ||
| Bore×Stroke | 98×84 | ||
| Fuel Consumption rate g/kw/h | ≤230 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication Oil Volume (L) | 1.65 | ||
| Combustion System | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC Output Socket | 2 | ||
| AC Circuit Breaker | YES | ||
| Oil warning Light | YES | ||
| Oil Alert | YES | ||
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | YES | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| Welding | NO | ||
| DIMENSIONS | Package size(LxWxH)(mm) | 1130x780x860 | |
Net Weight(kgs) | 210 | ||
| 20FT loading pcs | 30 | ||
