Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP20
- Structure:
- Piston Pump
- Usage:
- Water
- Application:
- Sewage treatment/Building system/Agricultural/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Low pressure
- Wheel:
- Rubber solid wheel
- Design:
- New
- Noise:
- Low
- Phase:
- Single
- Engine type:
- HR170FB-4hp
- Warranty:
- One year
- Price:
- More competitive
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 42X38X47 cm
- Single gross weight:
- 40.0 kg
- Package Type:
- Carton with plastic film and plywood pallets
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

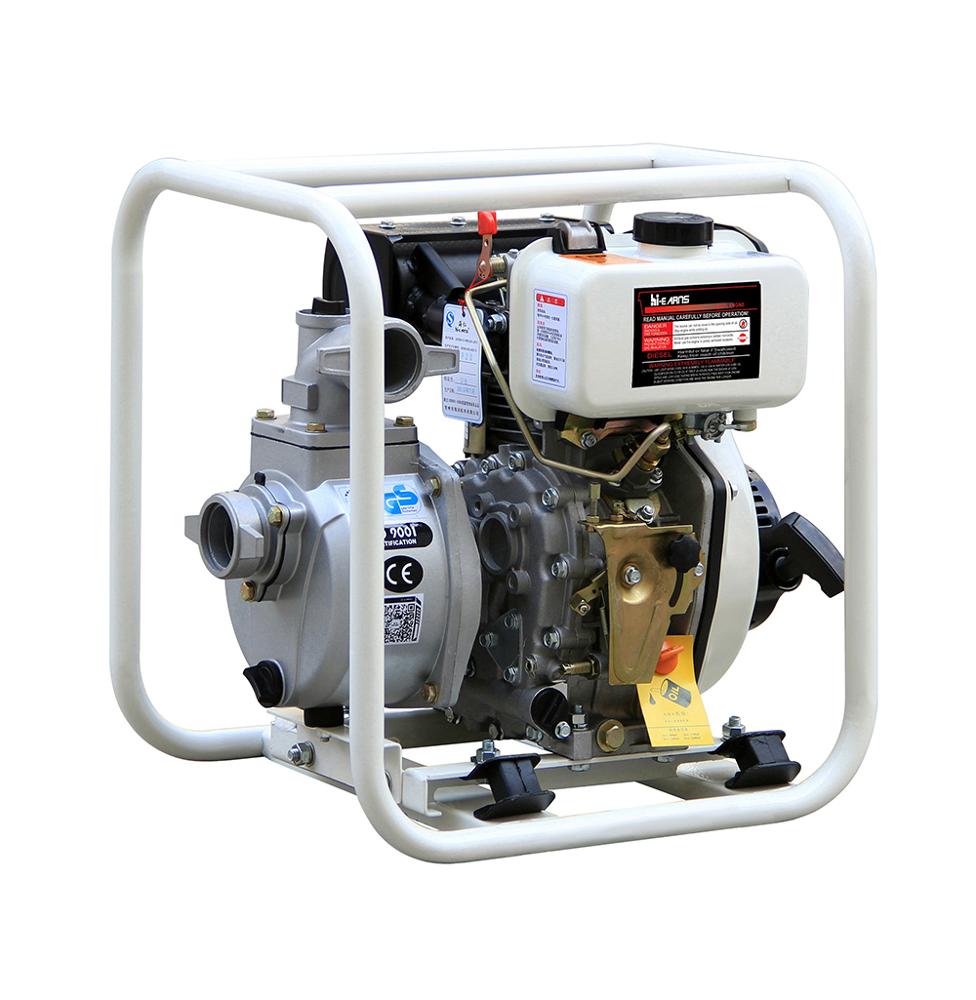

Diesel water pump
| WATER PUMP | Model | DP20 | |
| Suction,discharge port diameter[mm(in)] | 50(2"") | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170FB | |
| Speed(rpm) | 3600 | ||
| Type | 70×59 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 227 | ||
Bore*stroke(mm) | 70*59 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 475×400×515 | |
| Net weight(kg) | 35 | ||
| 20FT | 180 | ||
