Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DP30
- Structure:
- Single-stage Pump
- Usage:
- Water
- Application:
- Agricultural use/Waste water/Construct/Power station
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Theory:
- Centrifugal Pump
- Suction,discharge port diameter mm(in):
- 80(3inch)
- HP:
- 6
- Cont.head(m):
- 28
- Self-priming time (s/4m):
- 120
- Max suction head (m):
- 8
- Cont.capacity(m3/hr):
- 50
- Engine model:
- HR170FB
- Speed(rpm):
- 3600
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Delivery time: 20 days
One 20FT can load 192 pcs.
One 40HQ can load 400pcs.
- Port
- Shanghai or other Chinese Port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 20 >20 Est. Time(days) 10 15 To be negotiated
Related Products

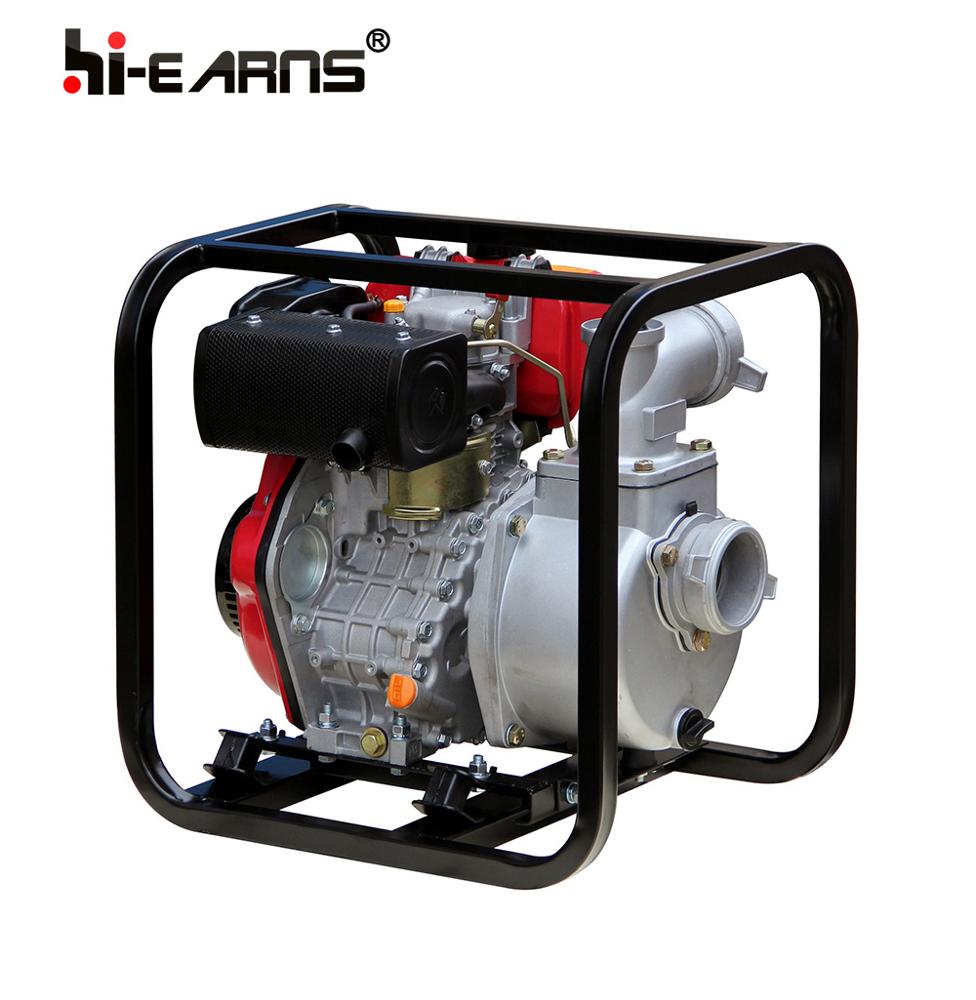

DP30E 3 inch diesel water pump
| Model | DP30(E) | |
WATER PUMP | Suction, discharge port diameter (mm(in) | 80(3") |
| HP | 6 | |
| Cont.head (m) | 28 | |
| Self-priming time (s/4m) | 120 | |
| Max suction head (m) | 8 | |
| Cont.capacity (m3/hr) | 50 | |
ENGINE | Engine model | HR178F |
| Speed (rpm) | 3600 | |
| Type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Displacement (cc) | 296 | |
| Bore×stroke (mm) | 78×62 | |
| Starting system | Recoil | |
| Fuel tank capacity (L) | 3.5 | |
| STANDARD FEATURES | Connecter of infall, connecter of outfall | Yes |
| Filter | Yes | |
| Seal ring | Yes | |
| Hoop | Yes | |
| OPTIONAL FEATURES | 12.5L Luxury big fuel tank | Optional |
| Electric Start | Optional | |
| DIMENSIONS | Dimension (L×W×H) (mm) | 570×475×580 |
| Gross weight (kg) | 48 | |
| 20FT can load pcs | 192 | |
