Home > Products > Hot sale 15KW silent 50HZ 380V diesel generator

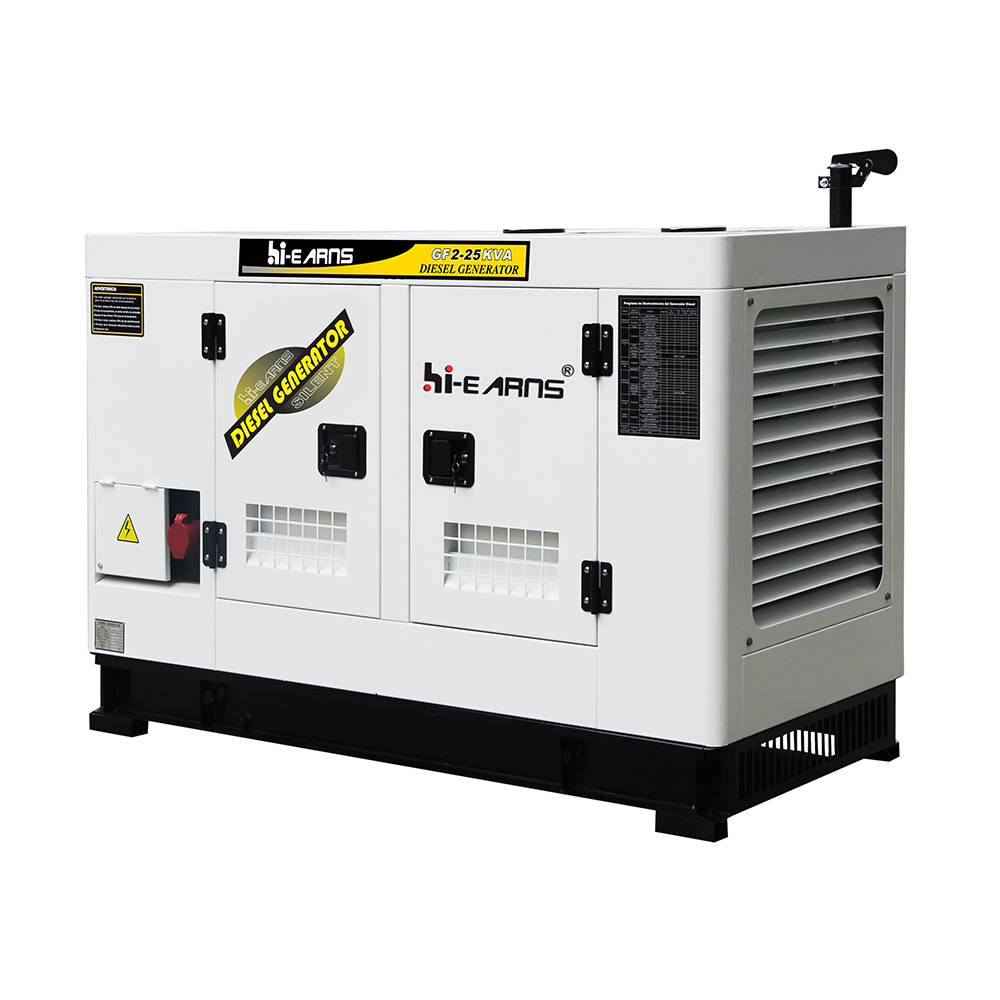

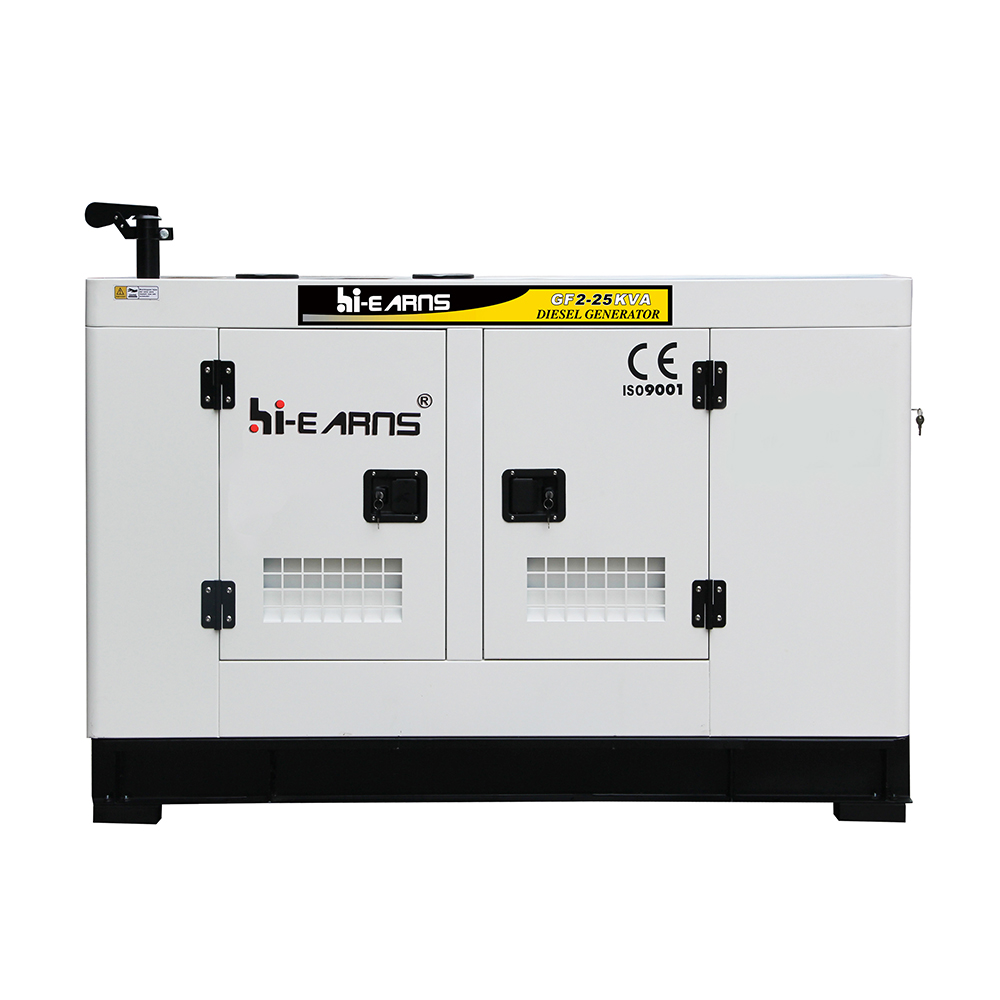

Hot sale 15KW silent 50HZ 380V diesel generator
Click on the image to view the original image
Product： views：5Hot sale 15KW silent 50HZ 380V diesel generator
Branch： hiearns
Type： Silent/super silent
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
hiearns
Model Number:
GF2-15KW
Rated Voltage:
220/380, 230/400V
Rated Current:
28A
Speed:
1500rpm/1800rpm
Frequency:
50/60HZ
Color:
Yellow/Green/White/Green/Red/Orange/Blue
Type:
Silent/super silent
Panel:
Common/digital/ATS
Design:
New
Noise:
low
Power factor:
0.8
Phase:
Three
Engine type:
four cylinder
Price:
Cheaper
Engine model:
K4100D
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging details: Wooden with plastic film
Port
FOBshanghai
Lead Time:
Quantity(Pieces)1 - 4 >4
Est. Time(days)30To be negotiated



 Hot sale 15KW silent 50HZ 380V diesel generator

MODEL  GF- 15KW
Standby Power (50HZ )17KW / 21KVA
Prime Power (50HZ )15KW / 19KVA
ENGINE DATA
Engine Type :    Weifang Huadong Engine K4100D.  Four stroke,Water-cooled,Direct line,Turbo type
 Rated RPM  (r/min)1500rpm
Cooling System Forced Water-cooled
Fuel Consumption (≤g/kw.h)≤258
 Compression Ratio19:01
 Bore×Stroke  (mm)95×115
Displacement (L)3.26
 Start Method Electric Start
ALTERNATOR DATA
Alternator Data
 Power Factor  0.8 Lag 0.8
 Insulation Class H
 Lubricating System  Pressure,Split,Complex
exhaust Air Temperature  (℃)≤470
Altitude ≤1000m
 Environment Temperature  (℃)40
Connecting Type                               3 Phase and 4 Wires,"Y" type connecting
Ignite sequence 1-3-4-2
 Intake Type Natually-Aspirated
 Rated Speed Regulation %≤±1%
Phase 3
Dimension & Weight
Open Type Soundproof Type
Overall Size :1.975(m)×0.84(m)×1.06(m) Overall Size:2.00(m)×0.85(m)×1.10(m)
Weight :700kgWeight :760kg
Advantages

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.

2. Customer First:

We devote ourselves to develop products to meet customers" requirements .Our engineer develop and design new products for customers.

3. Strict test process before ex-factory:

Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.

4. Low fuel consumption, easy maintenance

5. Certification: CE,ISO,GS,SONCAP etc.

6.Our logo or OEM



IQC

♦ Strict spare parts IQC system, to ensure every spare parts are qualified.

♦ Technical support in every step to eliminate all detailed questions.







Automatic Workshop

♦ Modern workshops have advanced production lines and professional knowledge of assembly.

♦ Flow card to record each details carefully.



Packaging & Shipping

♦ Strong packaging to ensure safty during transportation.

♦ 7 layer corrugated carton or wooden box packaging for products.



Company Information

♦ We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on.



Warranty and Service

Warranty

Guarantee for one year or 800 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons(refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.

Service

1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2.If the broken spare parts are in the period under warranty, we will offer this spare parts for free under the condition of this spare parts are not intentionally damaged.
