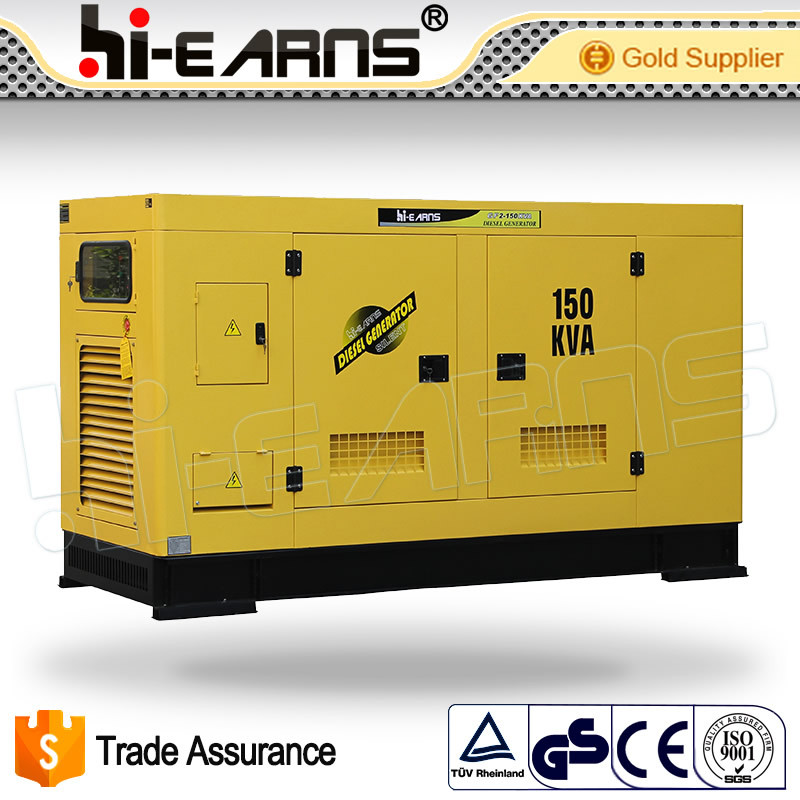

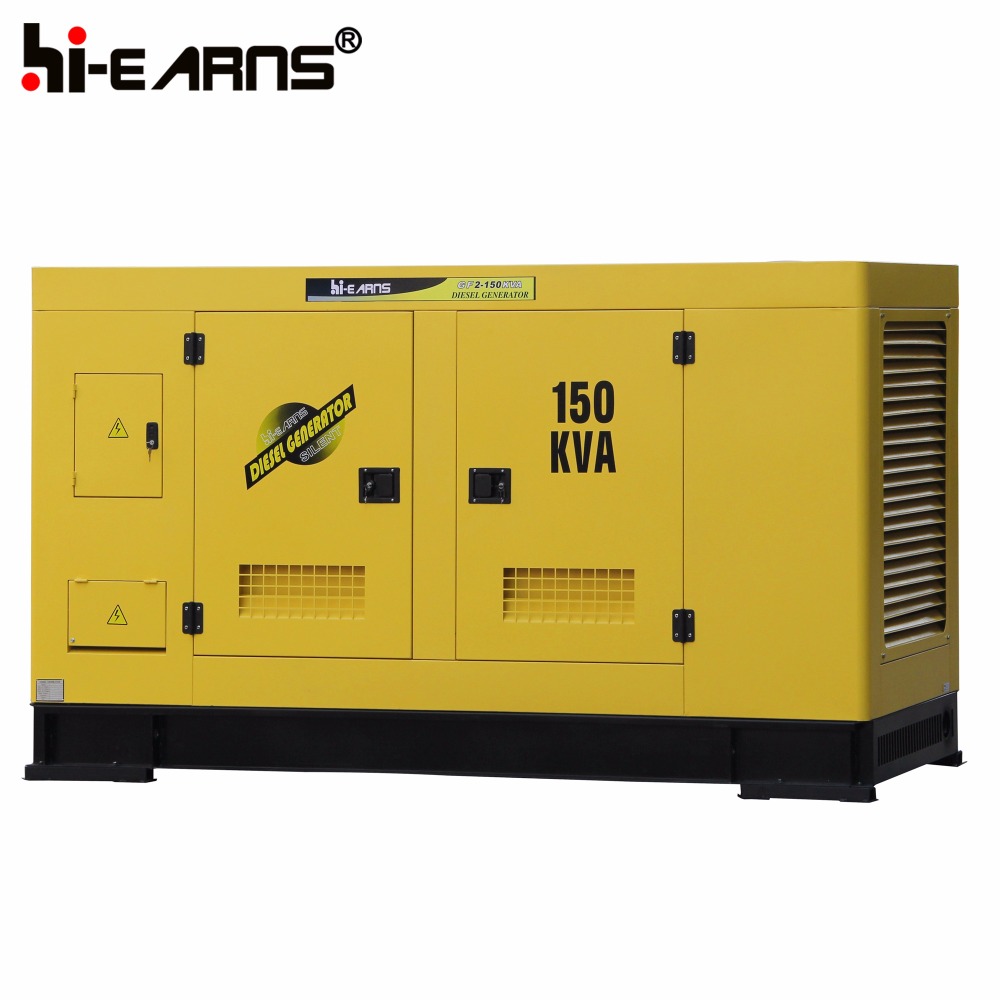

Hi-earns(CHINA)50HZ 150KVA silent diesel generator fuel consumption with automatic CNC(ATS)
| Model | GF2-165KVA |
| Standby power(50HZ) | 132KW / 165KVA |
| Prime power(50HZ) | 120KW / 150KVA |
| Voltage(V) | 220/380V |
| Phase | 3 |
| P.F(COSφ) | 0.8 |
| Standby Amps(A) | 165 |
| Engine type | DCEC Cummins 6CTA8.3-G2, 4-stroke |
| Air intake system | turbo |
| Fuel system | A/AD type fuel pump |
| Fuel consumption(g/kw.h) | ≤ 214 |
| Cylinder arrangement | 6 in line |
| Displacement | 8.3L |
| Bore x Stroke | 114 x 135(mm) |
| Compression Ratio | 17.0:1 |
| Rated RPM | 1500rpm |
| Max.Standby Power at Rated RPM | 180KW/244HP |
| Governor Type | Electronic |
| Max Water Temperature | 104 degree celsius |
Alternator Data
|
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires, "Y" type connecting |
| Number of Bearing | 1 |
| Power Factor | 0.8 Lag |
| Protection Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, self-exciting |
| Insulation Class,Temperature Rise | H/H |
| Telephone Influence Factor(TIF) | <50 |
| THF | <2% |
| Voltage Regulation, Steady State | ≤±1% |
| Alternator Capacity | 150KVA |
| Alternator Efficiencies | 92.2% |
| Air cooling Flow | 0.37m3/s |
| Overall Size | 2.44x0.88x1.65(m) |
| Weight | 1850kg |
