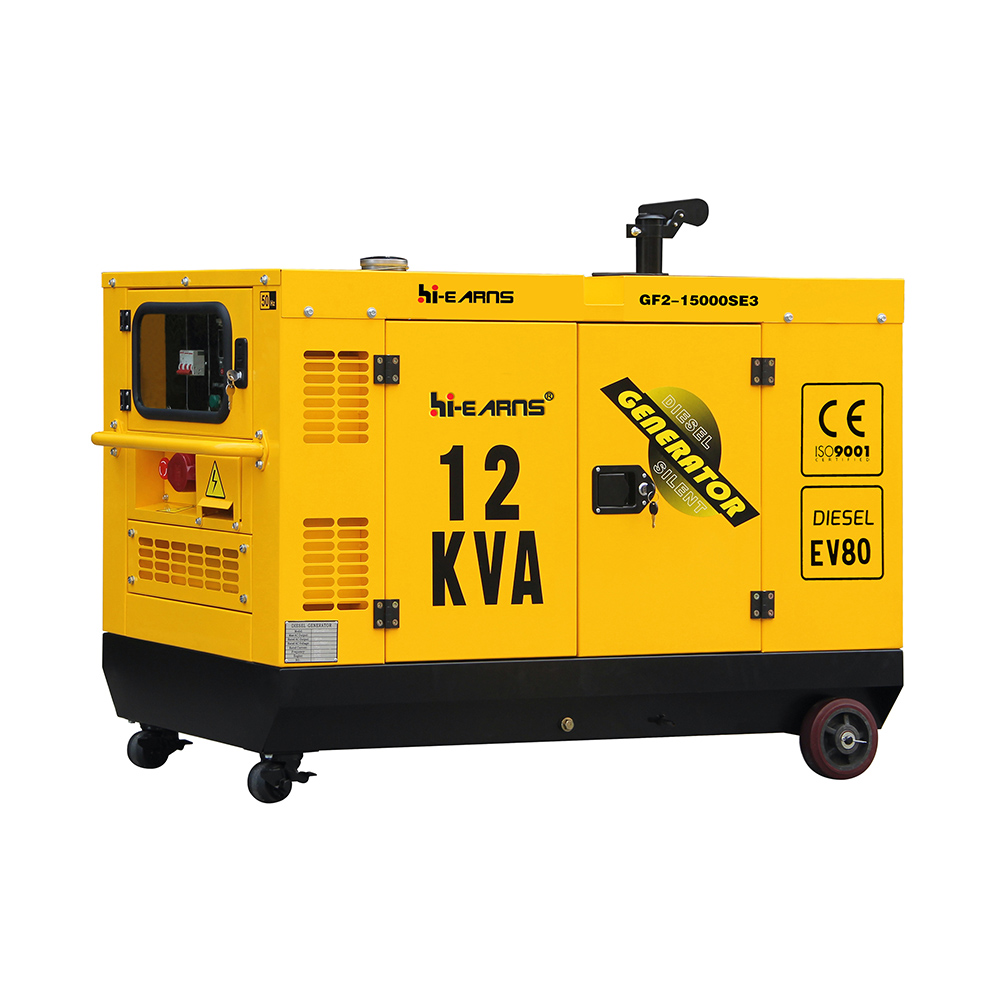

GF2-15000SE-12KVA silent two cylinder water cooled diesel generator
| GENERATOR | Model | DG15000SE | |
| Frequency(HZ) | 50 | ||
| Max. output(kw) | 10 | ||
| Rated output(kw) | 9 | ||
| Rated. AC voltage(v) | 220/380,230/400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 14 | 12 | |
| ENGINE | Model | EV80 | |
| Engine type | Two-cylinder, vertical, 4-stroke water-cooled diesel engine | ||
| Bore× stroke(mm) | 80×79 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 2.3 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Three phase voltage | yes | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 135*66*84 | |
| Net weight(kg) | 345 | ||
| 20FT | 24 | ||
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
Our company is located at Changzhou of Jiangsu Province and established in 2005 with 25 million RMB registered capital and covers an area of seven acres. Our monthly capacity is more than 6000 sets, and our products are best-selling at home and abroad for many years. With no doubt, Hi-earns Company is one of the most influential manufactures in the field of electrical generators in China.
Our business specializes in water-cooled diesel-powered generator sets, air-cooled diesel-powered generator sets, gasoline-powered generator sets, water pumps, minor agriculture machinery and road machinery equipment. Our company has independently developed 198FA, which belongs to Air-cooled Diesel Engine with its proprietary intellectual property and manufacturing technology.
Warranty
Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.
Service
1.Our quality department will provide the best solution that make you satisfied efficiently and accurately.
2.If the broken spare parts are in the period under warranty, we will offer this spare parts for
free under the condition of this spare parts are not intentionally damaged.
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
1. Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products, and this reliability
is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers" requirements .Our engineer
develop and design new products for customers.
3. Strict test process before ex-factory:
Every product will be tested twice before ex-factory and our products are 100% ex- factory
pass rate.
4. Low fuel consumption, easy maintenance
5. Certification: CE and ISO
6.Our logo or OEM
