Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG12000SE3
- Rated Voltage:
- 120/240,220/380,230/400,240/415V
- Rated Current:
- 16A
- Speed:
- 3000/3600RPM
- Frequency:
- 50/60HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- low
- Power factor:
- 0.8
- Phase:
- Three phase
- Engine type:
- HR2V86F
Supply Ability
- Supply Ability:
- 200 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- Packaging details:Carton with plastic film
Packaging size:125X75X89cm
Delivery time: 15 days
One 20FT can load 26 pcs.
One 40HQ can load 56pcs.
- Port
- Shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 25 To be negotiated
Related Products
Product Description
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

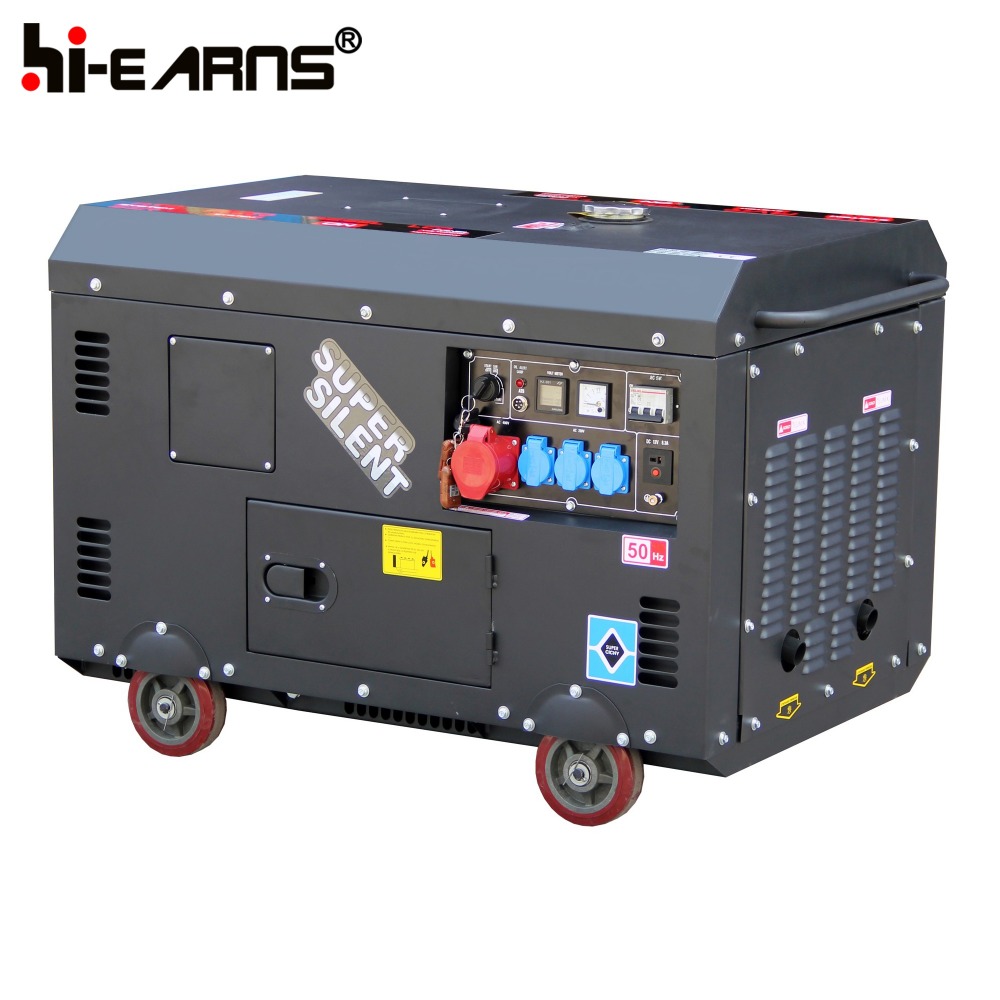

9KW electric silent air-cooled diesel generator
| GENERATOR | Model | DG12000SE3 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 9.0 | 9.5 | |
| Rated output(kw) | 8.5 | 9.0 | |
| Rated. AC voltage(v) | 120/240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =0.8 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 14 | 12 | |
| ENGINE | Model | HR2V86F | |
| Engine type | Two-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86×72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 2.5 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | No | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 1200×725×805 | |
| Net weight(kg) | 220 | ||
| 20FT | 26 | ||
