Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG6500SE
- Rated Voltage:
- 220,230,240V
- Rated Current:
- 25A
- Speed:
- 3000rpm
- Frequency:
- 50HZ
- Color:
- Yellow/Green/White/Green/Red/Orange/Blue
- Type:
- Silent and electric
- Panel:
- Common/digital/ATS
- Structure:
- Skylight/rings
- Wheel:
- common/omni-directional
- Design:
- New
- Noise:
- 68-72dB
- Power factor:
- 1
- Phase:
- Singlephase
- Engine type:
- HR186FA
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 90X56X74 cm
- Single gross weight:
- 160.0 kg
- Package Type:
- Carton with plastic film and plywood pallet
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 11 - 40 >40 Est. Time(days) 10 20 To be negotiated
Related Products
Product Description
1.Silent, electric, with 30AH storage battery
2.Low fuel consumption
3.With 2* 3inch universal wheel and 2* four wheel
4.Good quality and after sales service
5.CE and ISO9001

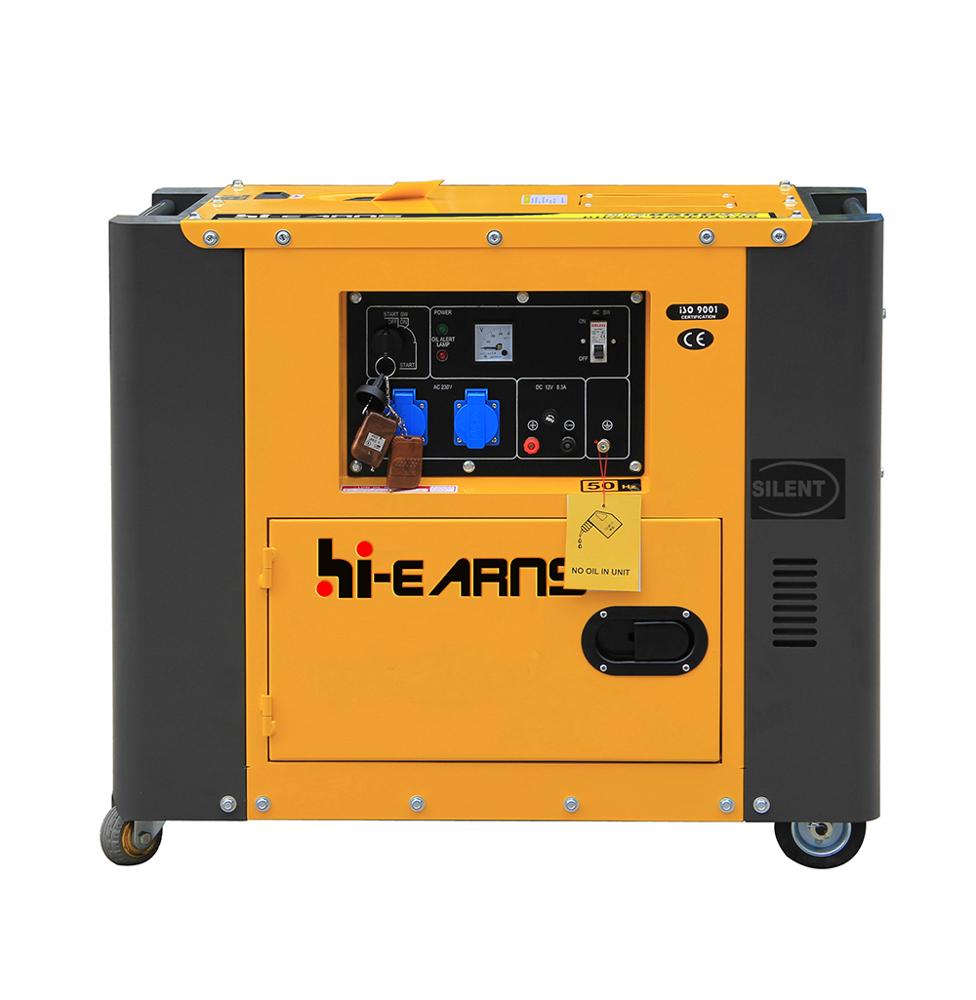

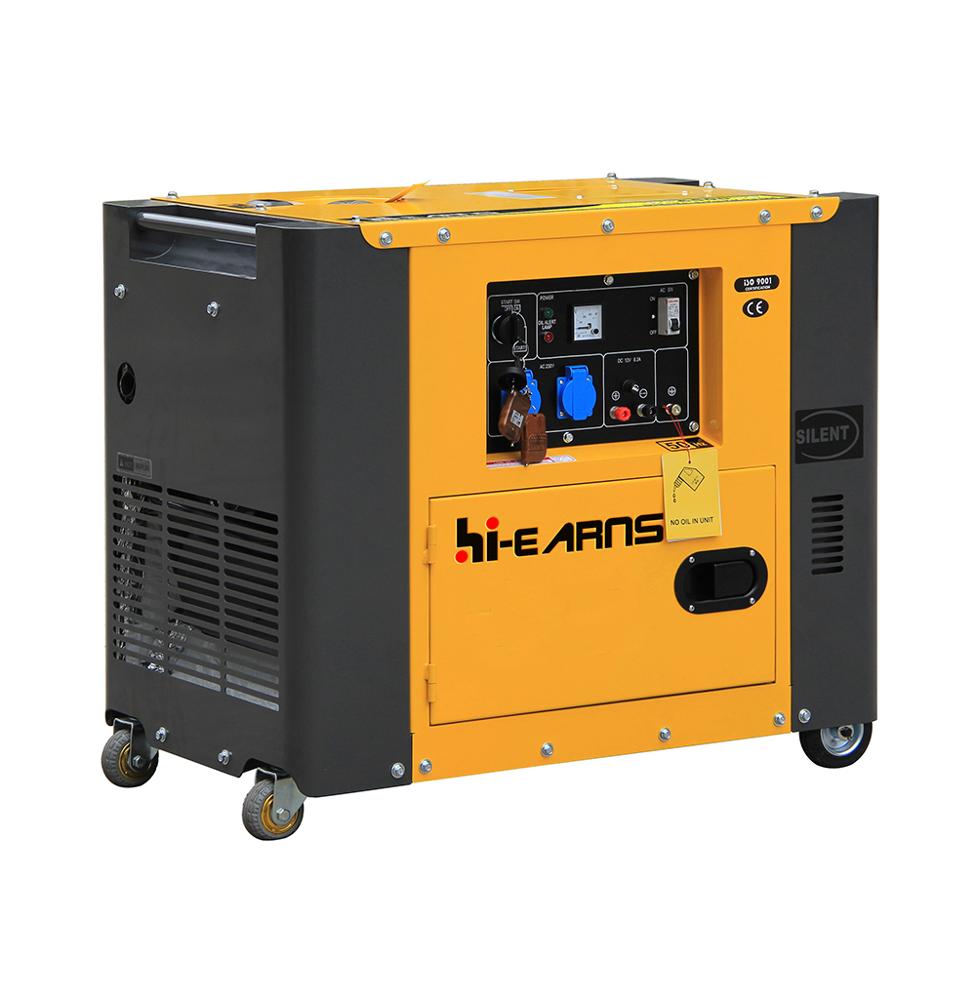

DG6500SE 5KW electric silent air-cooled diesel generator
| Model | DG3500SE | DG6500SE | DG8500SE | |
| GENERATOR | Frequency (HZ) | 50 | ||
| Max.output (KW) | 3 | 5 | 6.5 | |
| Rated output(KW) | 2.8 | 4.6 | 6 | |
| Rated AC Voltage(V) | 220,230,240,220/380,230/400 | |||
| Power Factor | 1 | |||
| DC output (V) | 12V/8.3A | |||
| Phase | Single Phase or three phase | |||
| Alternator Type | Self-excited,2-pole alternator | |||
| Starting System | Electric | |||
| Noise Level (dB/7m) | 68-72 | |||
| Fuel Tank Capacity (L) | 16 | |||
| Continuous Running Time (hr) | 13 | 8.5 | 8 | |
| ENGINE | Engine Model | HR178F | HR186FA | HR192FB |
| Engine Type | single-cylinder, vertical,4-stroke, air-cooled diesel engine | |||
| Bore×Stroke | 78×62 | 86×72 | 92×75 | |
| Fuel Consumption rate g/kw/h | ≤280 | |||
| Fuel | 0# or -10# light diesel oil | |||
| Lubrication Oil Volume (L) | 1.65 | |||
| Combustion System | Direct Injection | |||
STANDARD FEATURES | Voltmeter | YES | ||
AC Output Socket | 2 | |||
| AC Circuit Breaker | YES | |||
| Oil warning Light | YES | |||
| Oil Alert | YES | |||
OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL | ||
| Calculagraph | OPTIONAL | |||
| Current meter | OPTIONAL | |||
| ATS | OPTIONAL | |||
| Remote control | OPTIONAL | |||
| DIMENSIONS | Packing dimention(LxWxH)(cm) | 94*56*74 | ||
| Gross Weight(kgs) | 136 | 155 | 170 | |
| 20FT loading pcs | 72 | |||
