Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- Hi-earns
- Model Number:
- DG8500SE
- Rated Voltage:
- 220V
- Rated Current:
- 32A
- Speed:
- 3000/3600RPM
- Frequency:
- 50HZ, 50HZ/60HZ
- Rated voltage:
- 120,220,230,240,120/240,220/380,230/400,240/415
- Rated output:
- 6.5KW/7KW
- Phase:
- single phase/three phase
- Color:
- Green/White/black/Red/Blue
- Noise level at 7 meters:
- 68-72dB
- Diesel generator type:
- Air-cooled four stroke diesel generator
- Fuel tank capacity:
- 30L
- Continuous work:
- 7.8h/7.1h
- Engine model:
- HR192FC
Supply Ability
- Supply Ability:
- 300 Piece/Pieces per Day
Packaging & Delivery
- Packaging Details
- 1.Carton with plywood plate
2.One 20ft can load 30pcs, one 40ft can load 96pcs
- Port
- FOB shanghai
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 10 To be negotiated
Related Products
Product Description
1.silent, electric, with 36AH storage battery
2.low fuel consumption
3.with four wheel
4.good quality and after sales service
5,CE,GS,EPA,ISO9001

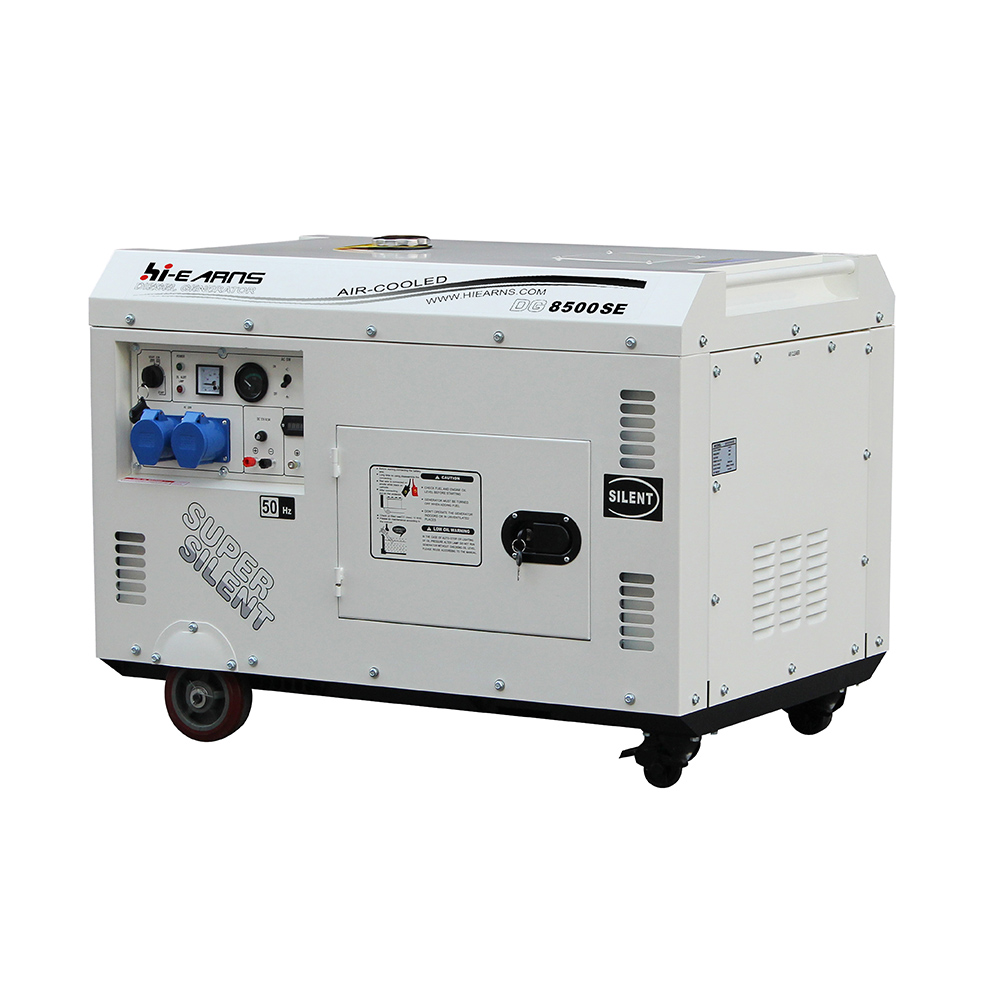

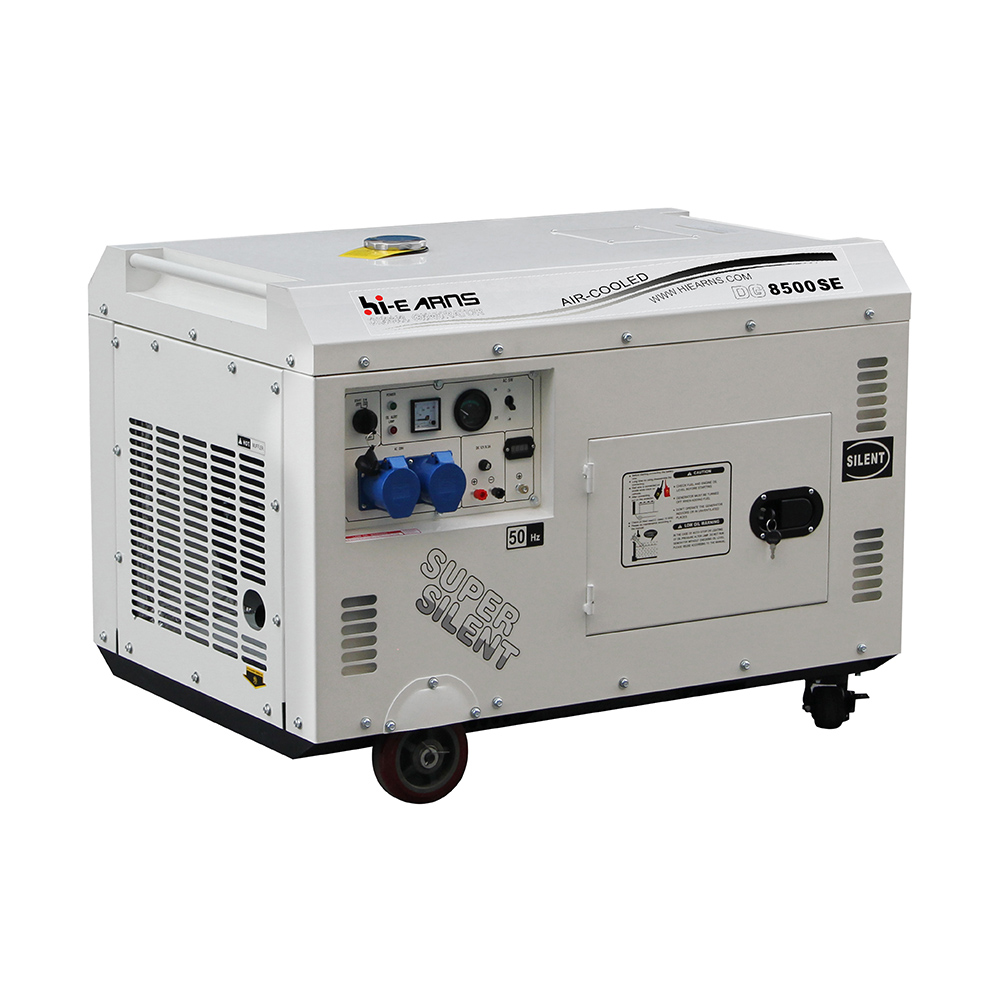

6.5KVA electric silent air-cooled diesel generator
| GENERATOR | Model | DG8500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 6.5 | 7.0 | |
| Rated output(kw) | 6.0 | 6.5 | |
| Rated. AC voltage(v) | 120, 220, 230, 120/240,220/380,230/400,240/415 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 30 | ||
| Continues work(hr) | 7.8 | 7.1 | |
| ENGINE | Model | HR192FC | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 92×75 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | |||
| Current meter | |||
| ATS | |||
| Remote control | |||
| DIMENSIONS | Dimension(L× W× H)(mm) | 935×525×680 | |
| Net weight(kg) | 175 | ||
| 20FT | 30 | ||
